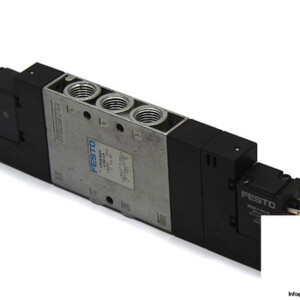

Festo 170247 Double Solenoid Valve
Neu
Auf Lager7 EinheitenVersandbereit
100,00$
DOUBLE SOLENOID VALVE
FESTO CPE18-M1H-5/3G-1/4 valve with 5/3 closed function and MSEB-3-24V DC coil ensures reliable air control in pneumatic applications.5/3AirClosedcoilControlCPE18-M1H-5/3G-1/4dcDoubleFestoG1/4IndustrialMSEB-3-24VPneumaticsolenoidValve
Gebraucht
Auf Lager 80,00$
Dieses Produkt ist auch als gebraucht erhältlich
Gebrauchte Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

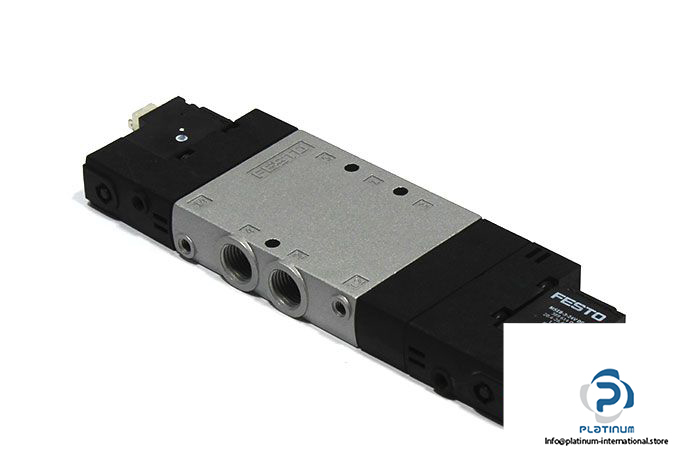

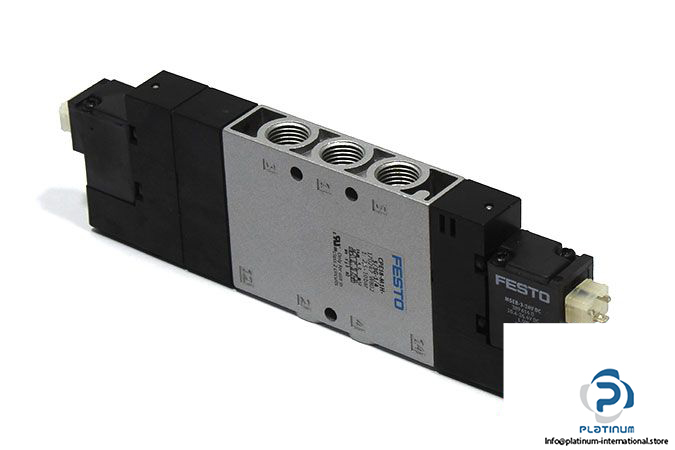

FESTO CPE18-M1H-5/3G-1/4 DOUBLE SOLENOID VALVE WITH COIL
The FESTO CPE18-M1H-5/3G-1/4 is a robust 5/3 double solenoid valve designed for high-performance pneumatic applications. Built with a piston gate structure and paired with the FESTO MSEB-3-24V DC solenoid coil, it delivers fast, reliable operation under demanding conditions.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: CPE18-M1H-5/3G-1/4
Part No.: 170247
Valve Technical Information
- Fluid: Air
- Design Structure: Piston gate valve
- Valve Function: 5/3 closed
- Type of Actuation: Electrically
- Operating Pressure: 2.5 / 10 bar
- Nominal Flow Rate: 1450 l/min
- Pneumatic Connection: G1/4
- Material: Die-cast aluminium
- Ambient Temperature: -5 / 50 °C

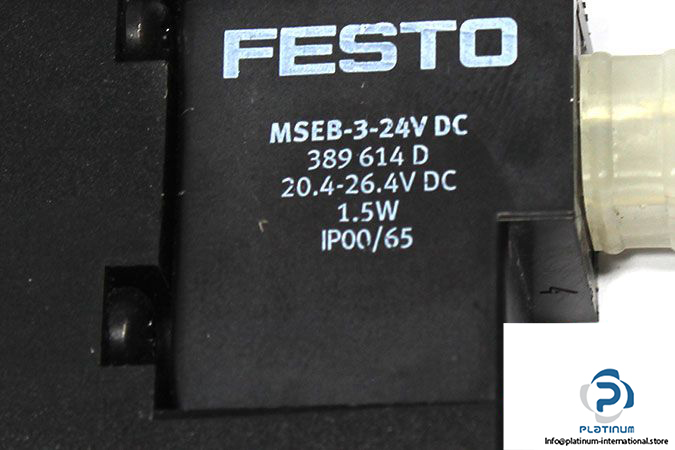

Solenoid Coil Attachment: FESTO MSEB-3-24V DC
Manufacturer: FESTO
Type: Solenoid Coil
Model: MSEB-3-24V DC
Part No.: 389614 D
Coil Technical Information
- Supply Voltage: 20.4 … 26.4 V DC
- Power Consumption: 1.5 W
- Protection Class: IP65
