Festo 170247 Double Solenoid Valve

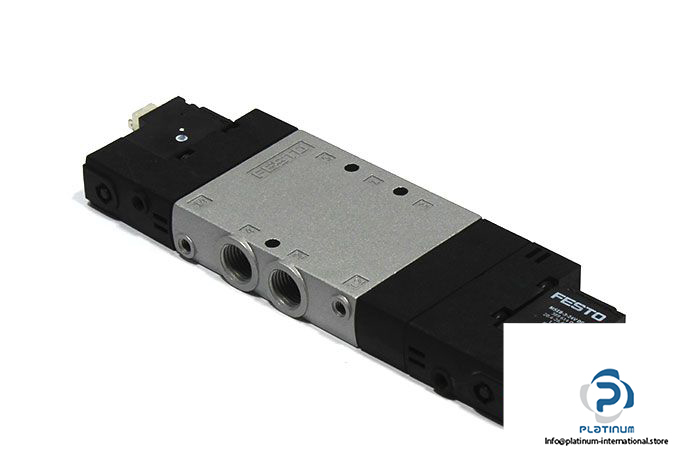

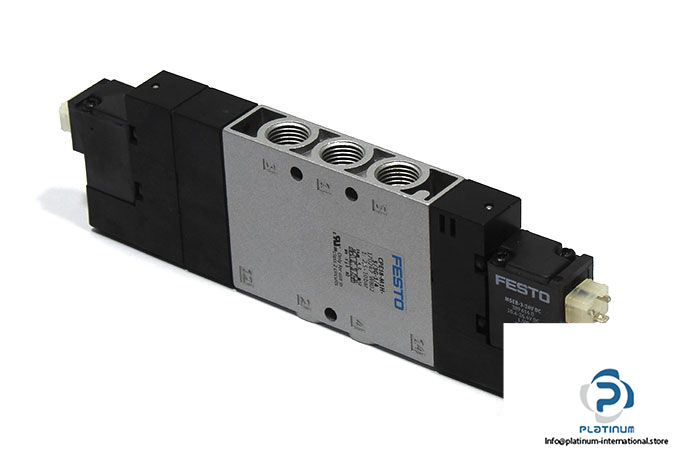

FESTO CPE18-M1H-5/3G-1/4 DOUBLE SOLENOID VALVE WITH COIL

The FESTO CPE18-M1H-5/3G-1/4 is a robust 5/3 double solenoid valve designed for high-performance pneumatic applications. Built with a piston gate structure and paired with the FESTO MSEB-3-24V DC solenoid coil, it delivers fast, reliable operation under demanding conditions.

Manufacturer: FESTO
Type: Double Solenoid Valve
Model: CPE18-M1H-5/3G-1/4
Part No.: 170247

Valve Technical Information

• Fluid: Air
• Design Structure: Piston gate valve
• Valve Function: 5/3 closed
• Type of Actuation: Electrically
• Operating Pressure: 2.5 / 10 bar
• Nominal Flow Rate: 1450 l/min
• Pneumatic Connection: G1/4
• Material: Die-cast aluminium
• Ambient Temperature: -5 / 50 °C

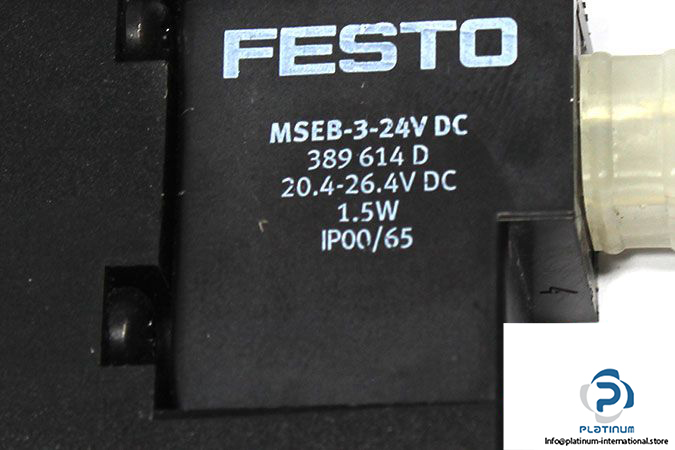

Solenoid Coil Attachment: FESTO MSEB-3-24V DC

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSEB-3-24V DC
Part No.: 389614 D

Coil Technical Information

• Supply Voltage: 20.4 … 26.4 V DC
• Power Consumption: 1.5 W
• Protection Class: IP65
