Hydraulics & Pneumatics Pneumatic Actuators ISO Cylinder

Festo 175207 ISO Cylinder

Name: FESTO 175207 ISO CYLINDER
SKU: 1062815
Availability: LimitedAvailability

Neu

Auf Lager2 EinheitenVersandbereit

ISO Cylinder

The FESTO DNC-32-40-P ISO Cylinder features a 32 mm bore diameter and 40 mm stroke, designed for reliable pneumatic operation with a **12 bar max pressure** and **G 1/8 pneumatic connection**.

SKU

1062815

Kategorie

ISO Cylinder

Zustand

Neu

1/8 12 32 40 bar bore Components Cylinder diameter DNC-32-40-P Double End Festo G Industrial ISO male mm Piston Pneumatic Pressure ROD Square Stroke

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

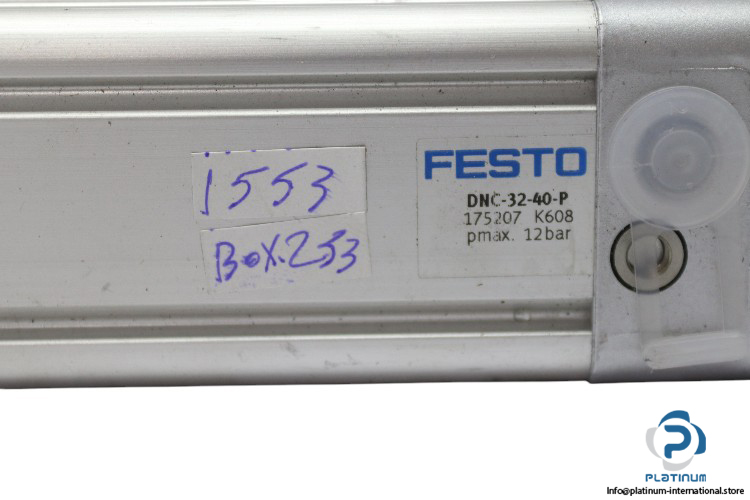

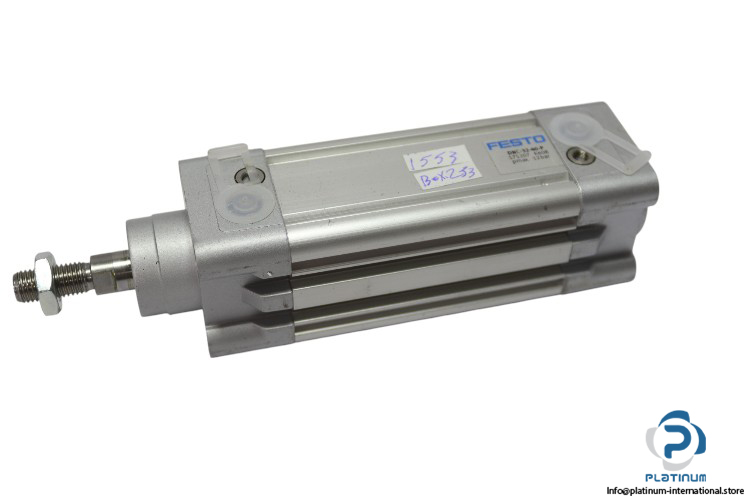

FESTO DNC-32-40-P ISO Cylinder

The FESTO DNC3240P ISO Cylinder is a high-performance pneumatic cylinder designed for a variety of industrial applications. With a 32 mm bore diameter and 40 mm stroke, it provides reliable operation under compressed air conditions.

Manufacturer: FESTO

Type: ISO Cylinder

Model: DNC-32-40-P

Part No.: 175207

Media	Compressed Air
Bore Diameter	32 mm
Stroke	40 mm
Bore x Stroke	32 x 40 mm
Rod Diameter	12 mm
Frame Dimensions	45 x 138 mm
Pneumatic Connection	G 1/8
Pressure Max.	12 bar
Operation Mode	Double
Piston Rod End	Male
Shape	Square
Rod Direction	One Side
