Festo 175207 ISO Cylinder
New
In stock2 unitsReady to ship
ISO Cylinder
The FESTO DNC-32-40-P ISO Cylinder features a 32 mm bore diameter and 40 mm stroke, designed for reliable pneumatic operation with a **12 bar max pressure** and **G 1/8 pneumatic connection**.1/8123240barboreComponentsCylinderdiameterDNC-32-40-PDoubleEndFestoGIndustrialISOmalemmPistonPneumaticPressureRODSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

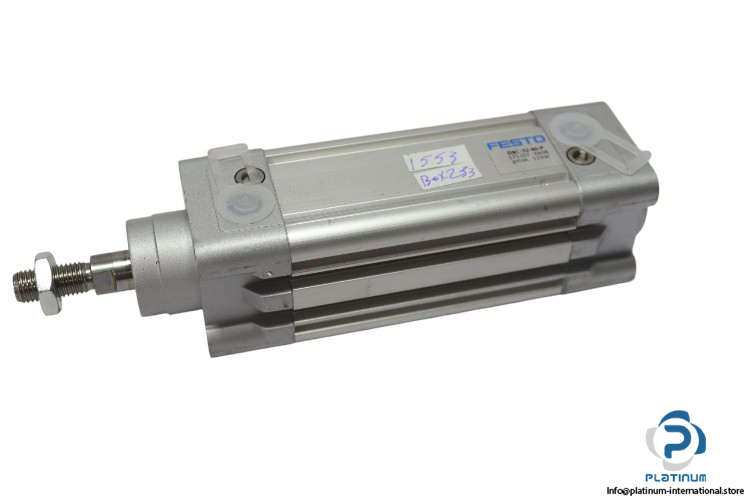

FESTO DNC-32-40-P ISO Cylinder
The FESTO DNC3240P ISO Cylinder is a high-performance pneumatic cylinder designed for a variety of industrial applications. With a 32 mm bore diameter and 40 mm stroke, it provides reliable operation under compressed air conditions.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DNC-32-40-P
Part No.: 175207
| Media | Compressed Air |
| Bore Diameter | 32 mm |
| Stroke | 40 mm |
| Bore x Stroke | 32 x 40 mm |
| Rod Diameter | 12 mm |
| Frame Dimensions | 45 x 138 mm |
| Pneumatic Connection | G 1/8 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
