Festo 536265 Compact Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
compact cylinder
The Festo Compact Cylinder ADN-25-40-I-P-A (Part No. 536265) provides reliable pneumatic operation with a 40 mm stroke length, 25 mm piston diameter, and 10 bar max. operating pressure for space-efficient applications.25405ActingconnectionCushioningCylinderdiameterDoubleElasticIndustrialLengthmmPistonPneumaticSpace-SavingStroke
Neu
Auf Lager
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

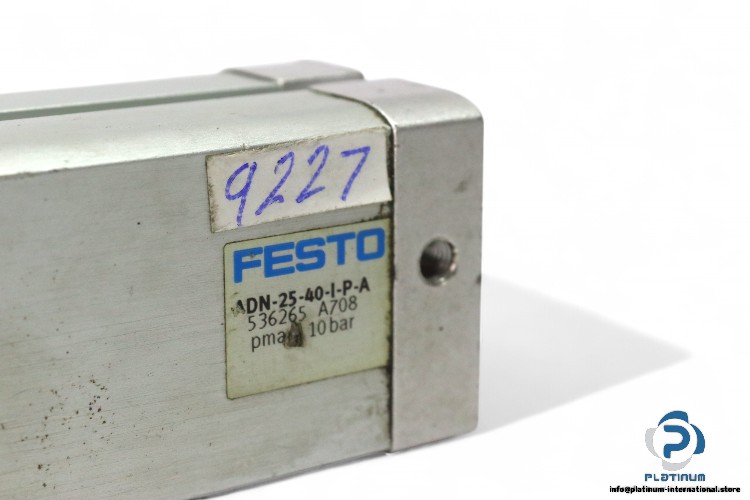

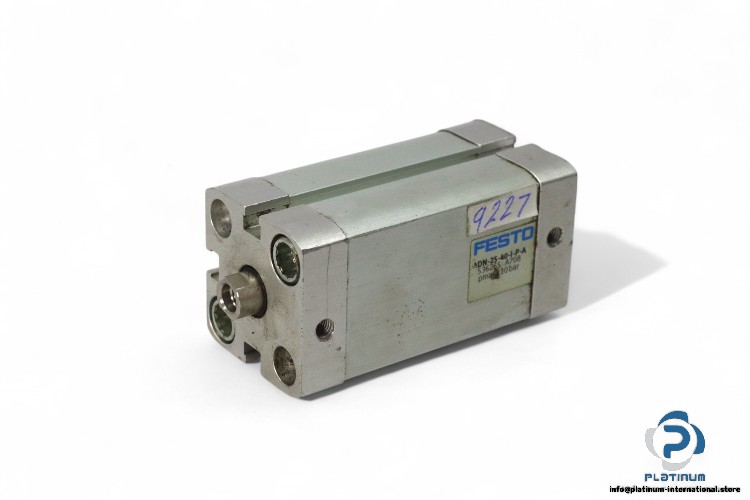

FESTO COMPACT CYLINDER
The Festo Compact Cylinder (Model: ADN-25-40-I-P-A, Part No. 536265) is designed for efficient pneumatic applications, providing reliable and high-performance operation in a compact design. With a 40 mm stroke length and 25 mm piston diameter, this cylinder is ideal for applications that require precise motion and space-saving solutions.
Manufacturer: FESTO
Type: Compact Cylinder
Model: ADN-25-40-I-P-A
Part No.: 536265
Technical Specifications
- Stroke Length: 40 mm
- Piston Diameter: 25 mm
- Piston Rod Thread: Female
- Material of Cylinder Barrel: Wrought aluminum alloy, smooth-anodized
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double acting
- Cushioning: Elastic cushioning rings/pads at both ends
- Position Sensing: For proximity sensing
- Variant: Piston rod at one end
- Pneumatic Connection: 5 mm
- Temperature: -20 … 80 °C
