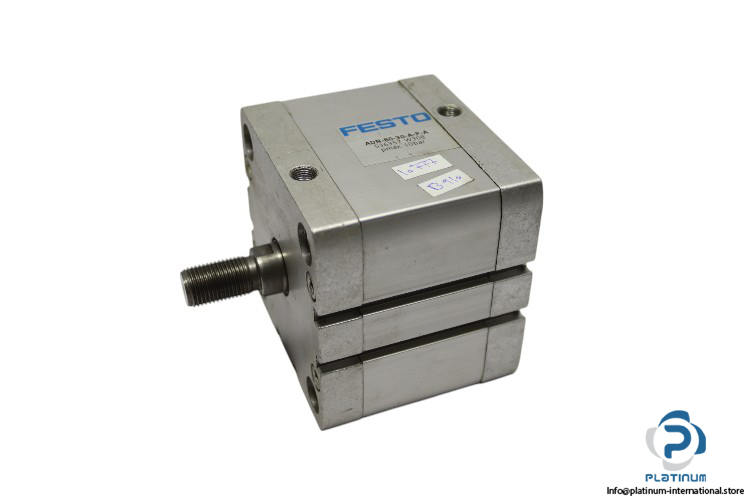

Festo 536357 Compact Cylinder
Neu
Auf Lager1 EinheitVersandbereit
compact cylinder
The Festo Compact Cylinder ADN-80-30-A-P-A (Part No. 536357) offers a 30 mm stroke length, 80 mm piston diameter, and 10 bar max pressure for reliable pneumatic control in industrial settings.
Gebraucht
Auf Lager
Dieses Produkt ist auch als gebraucht erhältlich
Gebrauchte Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

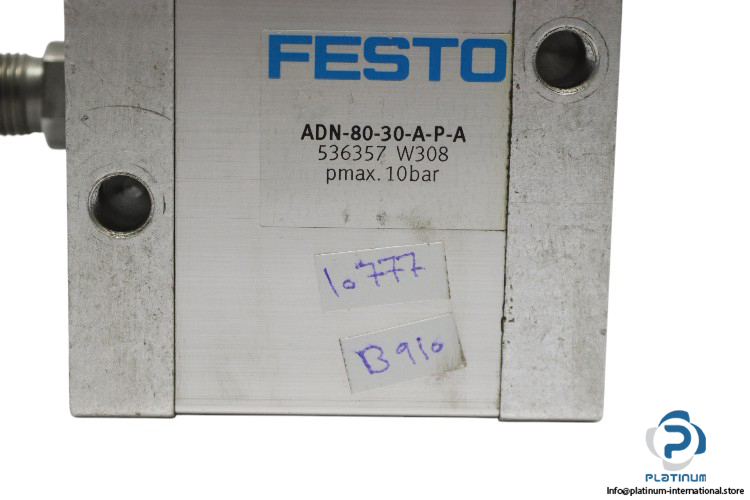

FESTO COMPACT CYLINDER
The Festo Compact Cylinder (Model: ADN-80-30-A-P-A, Part No. 536357) is designed for high-performance industrial applications, offering precise control and reliable movement. Featuring a stroke length of 30 mm, a piston diameter of 80 mm, and a maximum operating pressure of 10 bar, this compact cylinder ensures efficient pneumatic actuation with elastic cushioning and position sensing for enhanced functionality.
Manufacturer: Festo
Type: Compact Cylinder
Model: ADN-80-30-A-P-A
Part No.: 536357
Technical Specifications
- Stroke Length: 30 mm
- Piston Diameter: 80 mm
- Piston Rod Thread: Male
- Material of Cylinder Barrel: Wrought aluminum alloy
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double acting
- Cushioning: Elastic cushioning rings/pads at both ends
- Position Sensing: For proximity sensing
- Variant: Piston rod at one end
- Pneumatic Connection: G1/8
- Temperature: -20 to 80 °C
