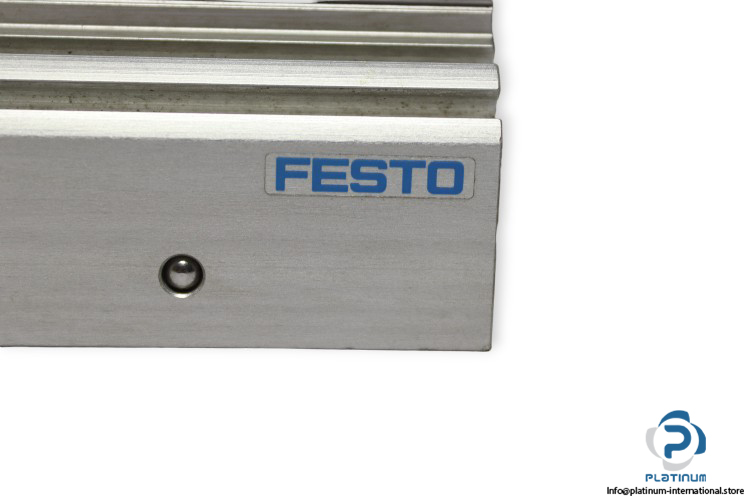

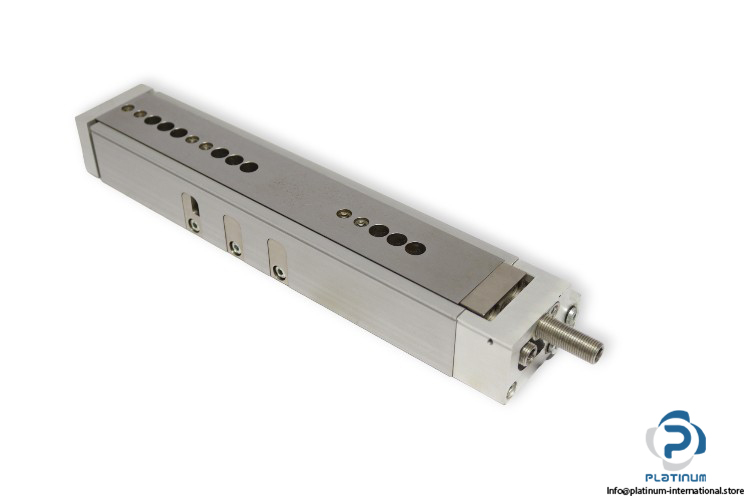

Festo 543976 Mini Slide

Manufacturer: FESTO
Type: Mini slide

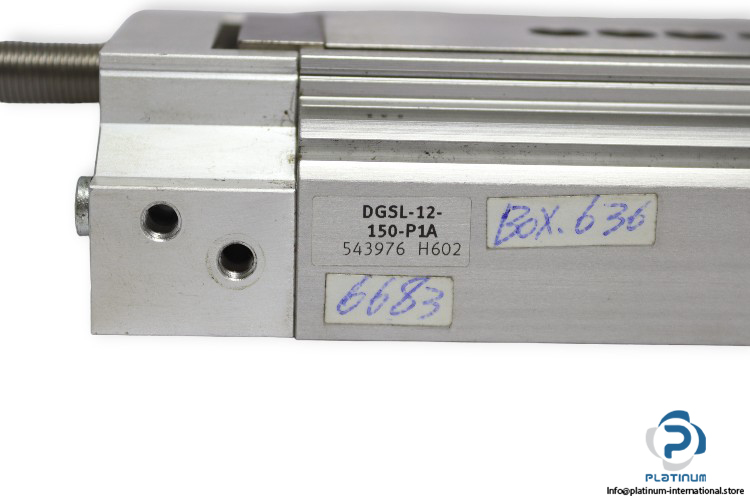

Model: DGSL-12-150-P1A
Part No.: 543976

Stroke: 150 mm
Adjustable end-position range/front length: 87 mm
Adjustable end-position range/rear length; 25.5 mm
Piston diameter: 16 mm
Cushioning: Elastic cushioning rings/pads at both ends with fixed stop
Guide: Ball bearing cage guide
Position sensing: For proximity sensor
Operating pressure: 1 bar … 8 bar
Max. speed: 0.8 m/s
Repetition accuracy: ±0.01 mm
Mode of operation: Double-acting
Operating medium: Compressed air
Pneumatic connection: M5
Cover material: Wrought aluminum alloy
