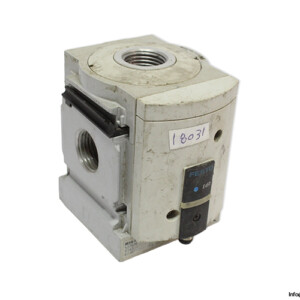

Festo 527676 Branching Module
Gebraucht
Auf Anfrage verfügbar
Verzweigungsmodule Pneumatisches FESTO-Verzweigungsmodul für Druckluftsysteme mit integrierter Drucküberwachung und hoher Durchflusskapazität für industrielle Automatisierungsanwendungen.
AirBranchBranchingCompressedconnectionDistributionFestoflowg1/2IndustrialModuleMS6-FRM-1/2-AD1PneumaticPreparationUnit
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

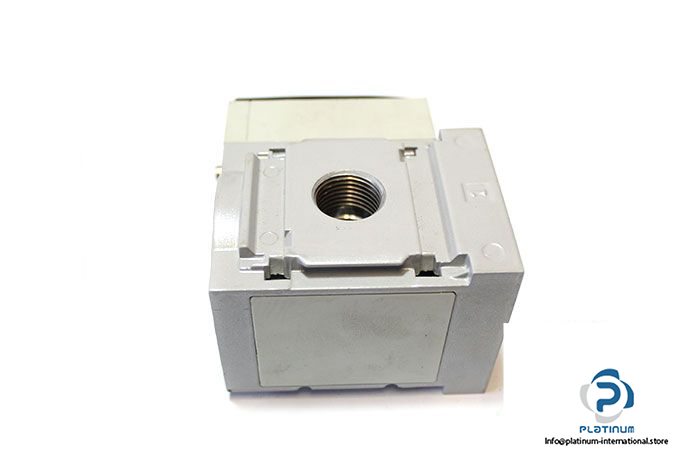

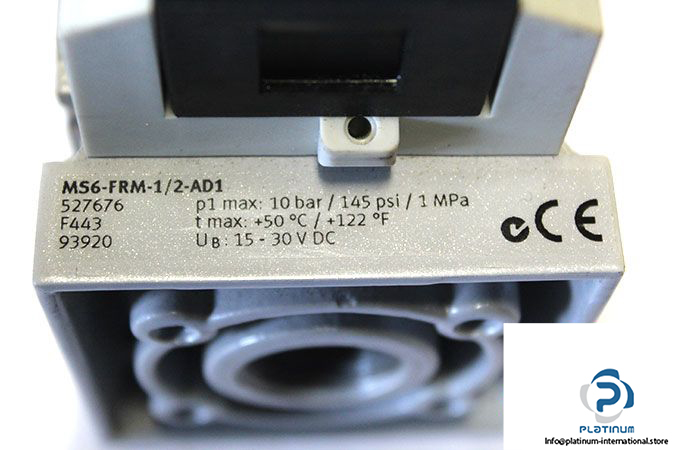

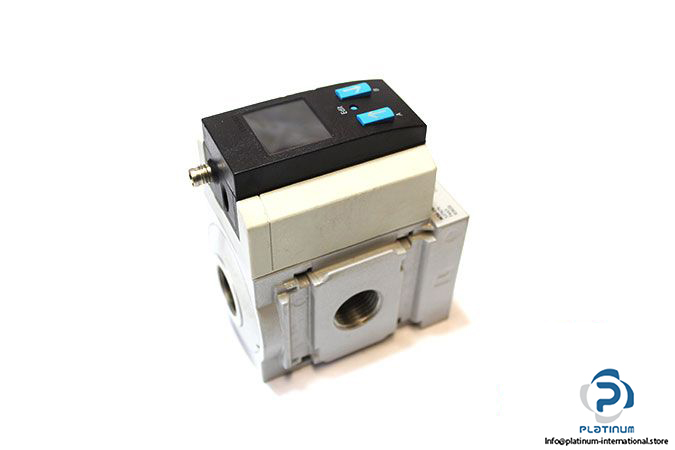

FESTO MS6-FRM-1/2-AD1 Branching Module
The FESTO MS6-FRM-1/2-AD1 is a pneumatic branching module designed for compressed air distribution in industrial automation and pneumatic systems. It integrates pressure monitoring capability with prepared ports for pressure gauges, supporting reliable system control and efficient air flow management.
Manufacturer: FESTO
Type: Branching Module
Model: MS6-FRM-1/2-AD1
MRN: 527676
| Operating Medium | Compressed Air |
| Structural Design | Branching Module |
| Symbol | 00991510 |
| Pressure Gauge | G1/4 Prepared, G1/8 Prepared |
| Features | With Pressure Sensor, With Pressure Gauge |
| Max Operating Pressure | 10 bar |
| Standard Nominal Flow Rate (Main Flow Direction 1 †’ 2) | 3200 l/min / 14700 l/min |
| Standard Nominal Flow Rate (Outlet at Top) | 2700 l/min / 6000 l/min |
| Standard Nominal Flow Rate (Outlet Down) | 2800 l/min / 6400 l/min |
| DC Operating Voltage Range | 15 V / 30 V |
| Max Temperature | 50 °C |
| Housing Material | Die-Cast Aluminum |
| Connection | G1/2 |
