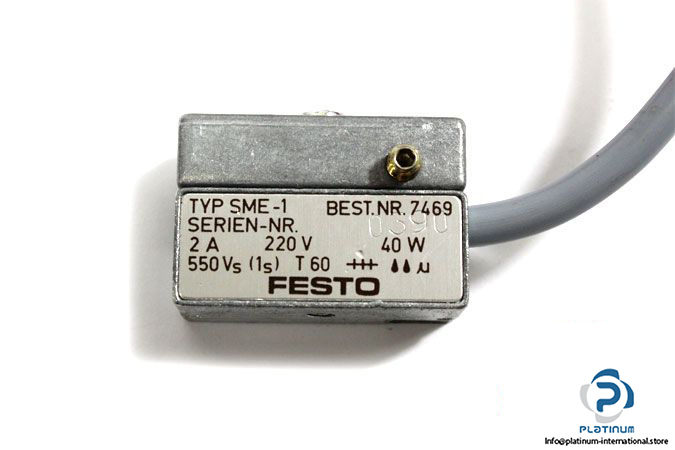

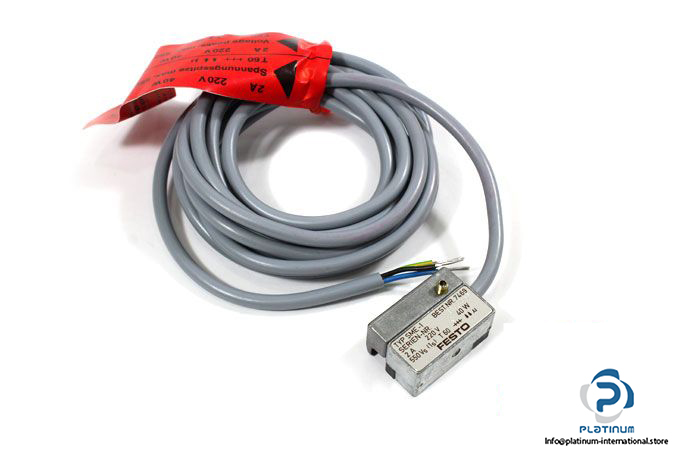

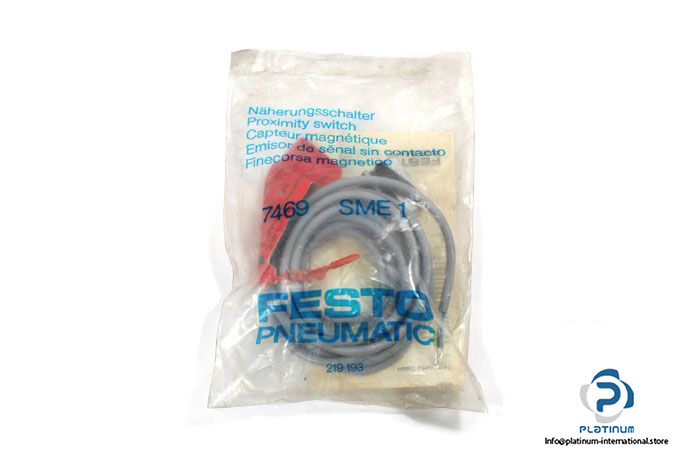

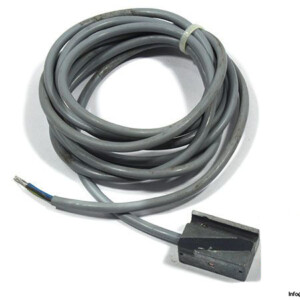

Festo SME-1 Proximity Switch

Manufacturer: FESTO

Type: PROXIMITY SWITCH

Model: SME-1

Part No.: 7469

Measuring Principle: Magneto Inductive

Operating Voltage: 220 V AC

Switching Frequency: 500 Hz

Max. Permissible Voltage Peaks: 550 V AC

Switching Time: 2 ms

Switching Output: Normally Open

Connector Type: Cable, 2.5 m

Type of Protection: IP66

Ambient Operating Temperature: -20 … 60°C

Dimensions: 15 x 23 x 34 mm

Housing Material: Zn Diecast, Epoxy Resin

Mounting: Using Clamping Angle on Mounting Rod

Weight: 0.155 kg
