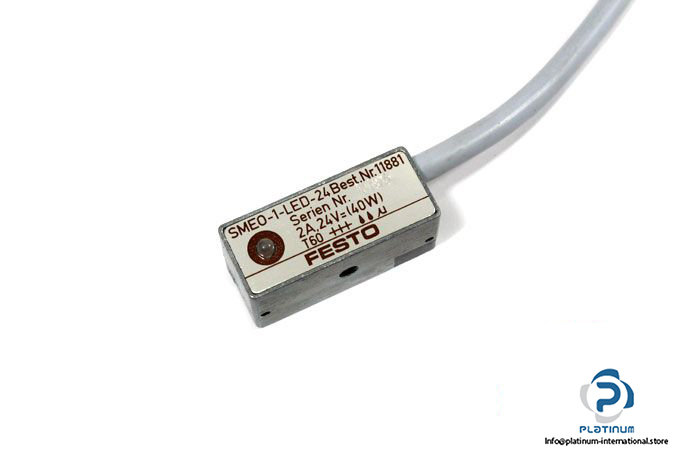

Festo SMEO-1-LED-24 Proximity Switch

Manufacturer:  FESTO

Type:  PROXIMITY SWITCH

Model : SMEO-1-LED-24

Part No.: 11881

Measuring principle: Magnetic reed

Operating Voltage: 12 … 27 V AC/DC

Switching Current max.: 2 A

Switching capacity: 40 W

Switching frequency: 500 Hz

Switching output: Normally open

Connector type: Cable, 2.5 m

Enclosure rating: IP66

Ambient Operating temperature: -20 … 70°C

Diameter, housing length: 15.5 x 14 x 34 mm

Housing material: Zinc die-cast

Weight: 155 g

Housing material: PET
