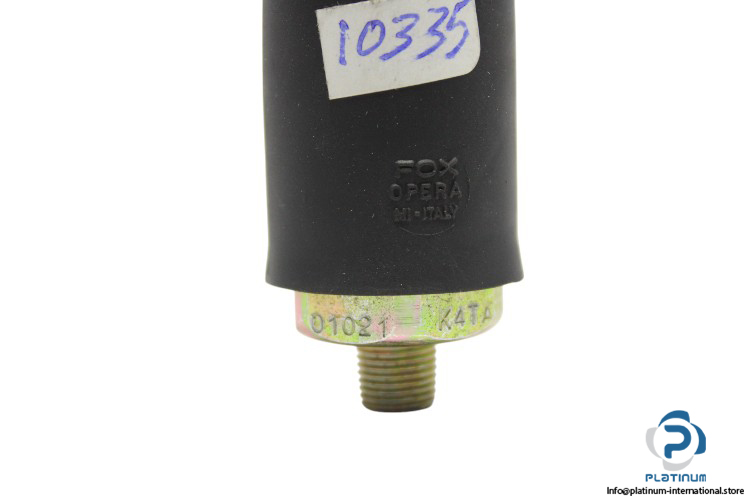

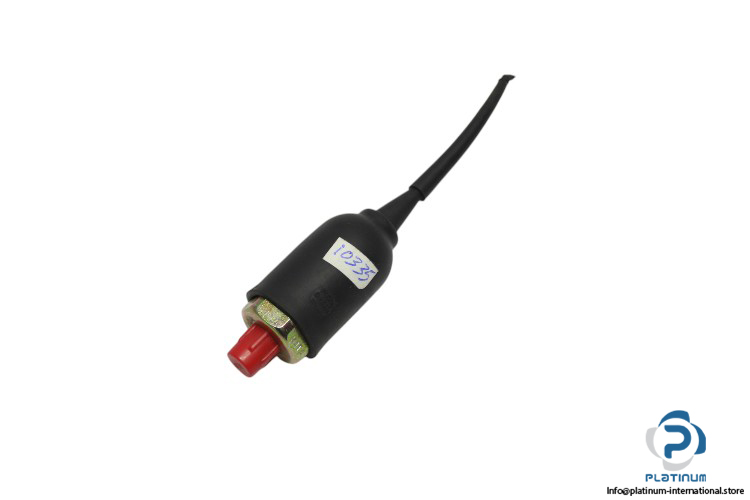

FOX Opera K4TA Pressure Switch With Rubber CAP
Druckschalter FOX OPERA Druckschalter K4TA mit Schaltbereich von 5 bis 50 bar, maximalem Betriebsdruck von 300 bar und Nennspannung von 250 V AC / 110 V DC. Ausgestattet mit normalerweise offenem (NO) Ausgang, IP54 Schutz und Betriebstemperaturbereich von -25 bis 85°C.
FOX OPERA Pressure Switch K4TA
The FOX OPERA Pressure Switch K4TA is designed to provide reliable and precise pressure monitoring in various industrial applications. With a switching pressure range from 5 to 50 bar and a maximum working pressure of 300 bar, this switch is built to handle high-pressure environments. It features a rated voltage of 250 V AC / 110 V DC and a rated current of 0.5 A / 0.15 A, offering versatility in power systems. The normally open (NO) switch output ensures seamless operation, and the G 1/8 pressure connection size provides easy integration. With an IP54 protection class and an operating temperature range of -25 to 85°C, the K4TA is a robust choice for demanding conditions.
Manufacturer: FOX OPERA
Type: Pressure Switch
Model: K4TA
Technical Specifications
- Switching Pressure Range: 5 / 50 bar
- Working Pressure Max.: 300 bar
- Rated Voltage: 250 V AC / 110 V DC
- Rated Current: 0.5 A / 0.15 A
- Switch Output: Normally Open (NO)
- Pressure Connection Size: G 1/8
- Protection Class: IP54
- Temperature: -25 / 85 °C
- Length, Diameter: 47 mm, 26 mm
