Gefran PC-M-0200 Measuring Linear Transducer
Gebraucht
Auf Lager1 EinheitVersandbereit
199,99$
Messlinear-Transducer Gefran PC-M-0200 ist ein hochpräziser Linear-Transducer mit 200 mm Hub, IP65-Schutz und unendlicher Auflösung, ideal für präzise industrielle Anwendungen.
200mmAutomationComponentsGefranHighIndustrialIP65LinearMeasuringPC-M-0200PositionPrecisionSensorStrokeTransducer
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

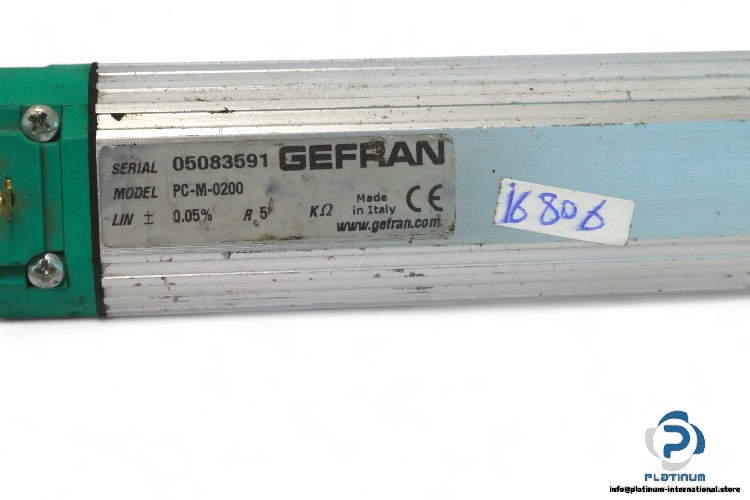

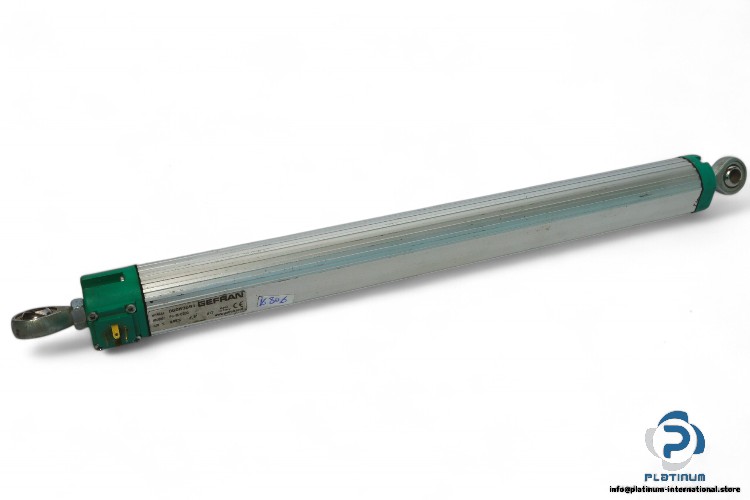

GEFRAN PC-M-0200 MEASURING LINEAR TRANSDUCER
The Gefran PC-M-0200 is a high-precision linear transducer designed to provide accurate and repeatable measurements in industrial automation environments. Built with durable materials and engineered for harsh conditions, it ensures superior linearity and resolution in demanding applications.
Manufacturer: Gefran
Type: Measuring Linear Transducer
Model: PC-M-0200
S No.: 05083591
| Independent Linearity | 0.05% |
| Useful Electrical Stroke Length | 200 mm |
| No. of Poles | 4-pole connector output |
| Maximum Applicable Voltage | 60 V DC |
| Maximum Cursor Current | 10 mA |
| Resolution | Infinite |
| Resistance | 5 kΩ |
| Material | Anodized Aluminum Nylon 66 G |
| Protection Class | IP65 |
| Temperature Range | -30 / 100 °C |
