Groschopp DM 100-80 / E4 Gear Motor

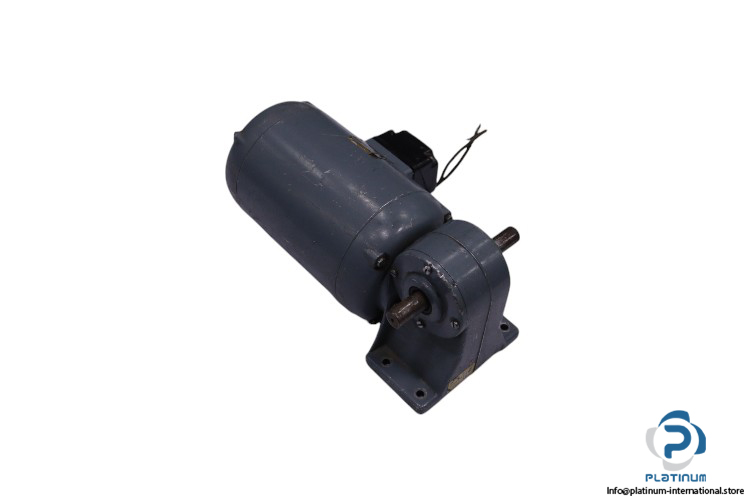

GROSCHOPP DM 100-80 Gear Motor

The GROSCHOPP DM 100-80 Gear Motor is a high-performance three-phase motor designed for industrial applications requiring precise torque and reliable power output. With a rated power of 200 W and a speed of 2800 rpm, this motor ensures efficient operation under varying loads. It is equipped with the E 4 Gearbox, providing a ratio of 28 and a maximum torque of 1300 NCM, making it ideal for demanding automation and drive systems.

• Manufacturer: GROSCHOPP
• Type: Gear Motor
• Model: DM 100-80
• Part No.: 7718440

Technical Specifications

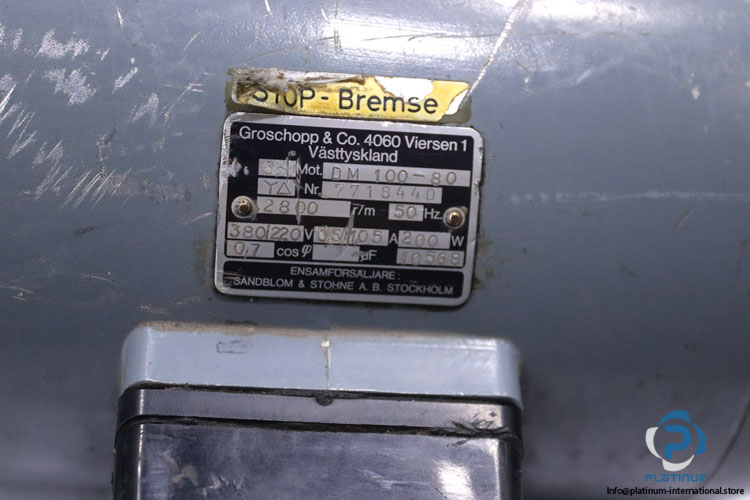

• Phase: 3-Phase
• Rated Voltage: 380 / 220 V
• Rated Current: 0.5 / 1.05 A
• Rated Power: 200 W
• Rated Speed: 2800 rpm
• Power Factor: 0.7
• Frequency: 50 Hz

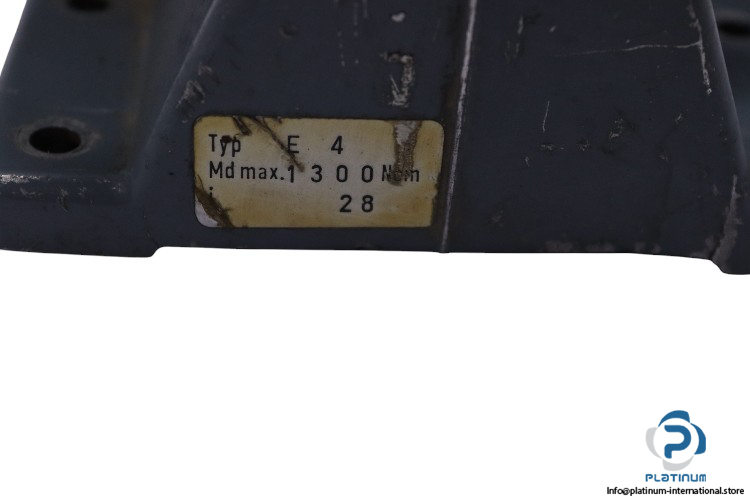

Gearbox Specifications

• Attached with: E 4 Gearbox
• Ratio: 28
• Max Torque: 1300 NCM
