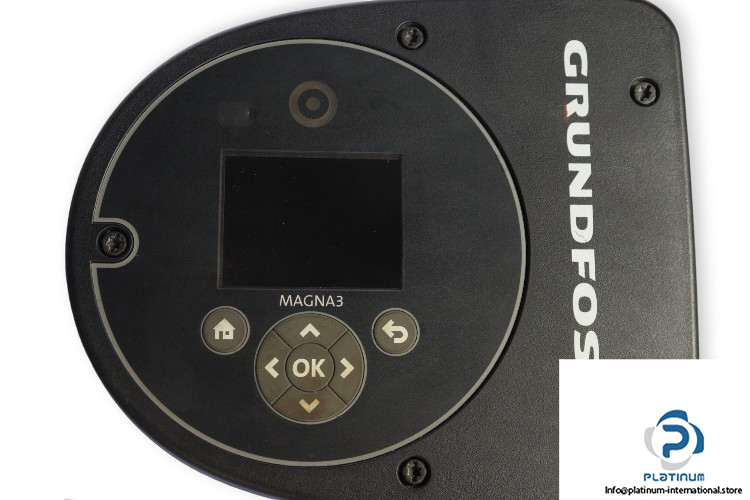

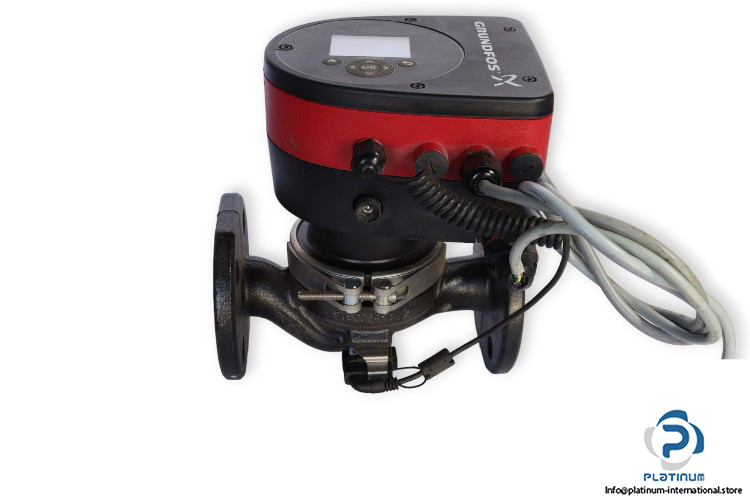

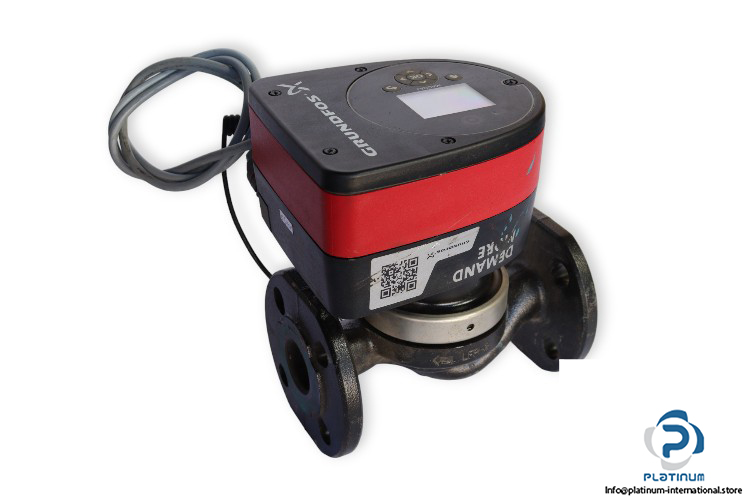

Grundfos MAGNA3 32-80 F 220 Circulator Pump

Manufacturer: GRUNDFOS
Type: Circulator Pump
Model: A

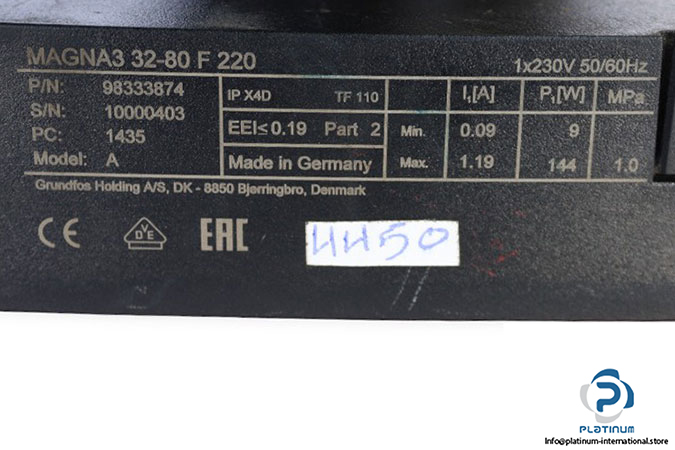

Part No.: 98333874
MNR: MAGNA3 32-80 F 220

Maximum head: 80 dm
Material of Pump housing: Cast iron
Range of ambient temperature: 0 … 40°C
Maximum operating pressure: 10 bar
Rated Flow: 4.79 m³/h
Size of connection: 36.5 mm
Pressure rating for connection: PN 6/10
Port-to-port length: 220 mm
Pumped liquid: Water
Density: 938.2 kg/m³
Maximum power input – P1: 144 W
Mains frequency: 50/60 Hz
Rated Voltage: 1 x 230 V
Minimum current consumption: 0.09 A
Maximum current consumption: 1.19 A
