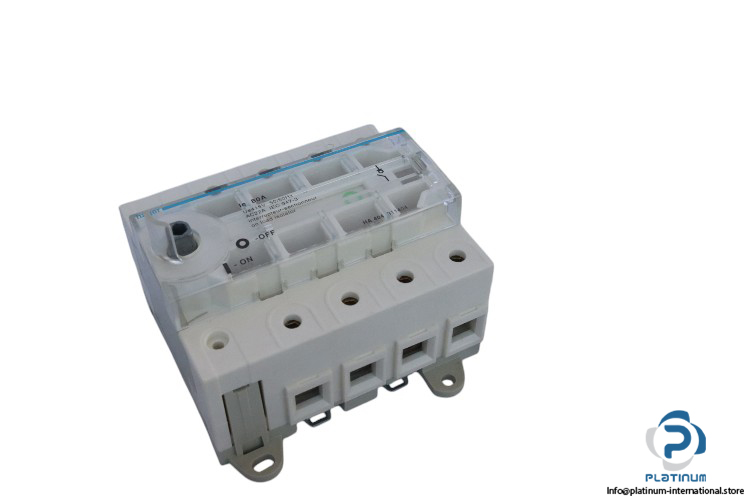

Hager HA404 Main Switch
Auf Lager2 EinheitenVersandbereit
Hager Hauptschalter / Lasttrennschalter HA 404 mit einem Nennstrom von 80 A, einer Nennspannung von 415 V und einer Schaltleistung von 12 kA. Entwickelt für einen zuverlässigen Schutz von Stromkreisen in Industrie- und Wohnanwendungen.
12441569080aBrakingBreakBreakerCapacityCircuitCurrentElectricalHagerIEC947-3IndustrialInsulationkALoadMainPolesProtectionRatedSwitchVvoltage
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Hager Main Switch / Load Break Switch HA 404
Hager Main Switch / Load Break Switch HA 404 is designed for reliable circuit protection and load breaking in industrial and residential applications. It offers high performance with excellent braking capacity and insulation, making it suitable for a wide range of electrical systems. Below are the key technical specifications:
- Manufacturer: Hager
- Type: Main Switch / Load Break Switch
- Model: HA 404
- Part No.: 311404
Technical Data:
- Number of Poles: 4
- Rated Current (Ie): 80 A
- Rated Voltage (Ue): 415 V
- Insulation Voltage (Ui): 690 V
- Rated Impulse Withstand Voltage (Uimp): 8 kV
- Braking Capacity (Icc max): 12 kA
- Frequency: 50 to 60 Hz
- Standard: IEC947-3
- Dimensions: 107.5 x 115 x 86.5 mm
