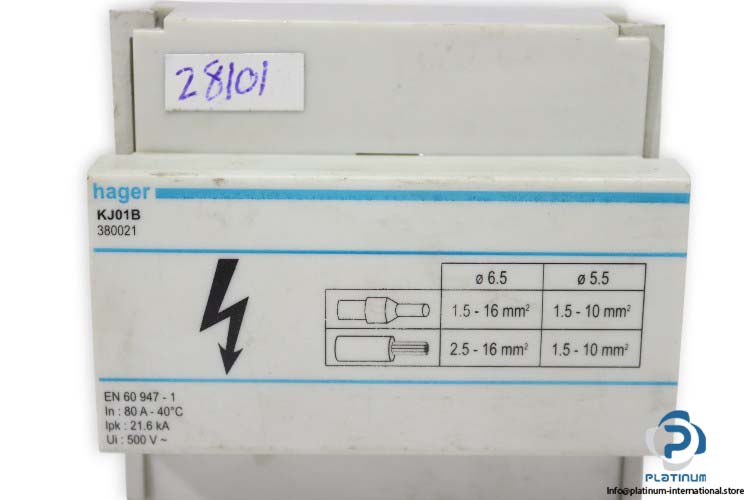

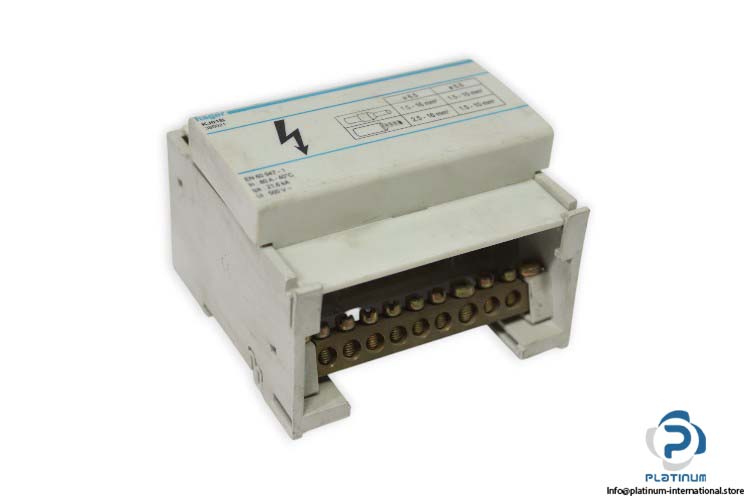

Hager KJ01B Brass Busbar Terminal
Gebraucht
Auf Lager2 EinheitenVersandbereit
with 4 poles, 80 A current rating, and 500 V insulation voltage. Compact and reliable distribution terminal for modular panel systems.
3800214-pole500V80ampBlockbrassBusbarDistributionElectricalHagerIndustrialKJ01BModularNumberPanelpartterminal
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Manufacturer: Hager
Type: Brass Busbar Terminal
Model: KJ01B
Part No.: 380021
The Hager KJ01B brass busbar terminal is engineered for efficient and secure electrical distribution in modular panel systems. Designed to handle high current loads, this 4-pole terminal supports a rated current of 80 A and insulation voltage up to 500 V. Its compact 5-module format makes it ideal for integration into standard enclosures, while the robust brass construction ensures long-term durability and conductivity in industrial environments.
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Current | 80 A |
| Number of Poles | 4 |
| Number of Modules | 5 |
| Dimensions (H×W×D) | 86 × 88 × 44 mm |
