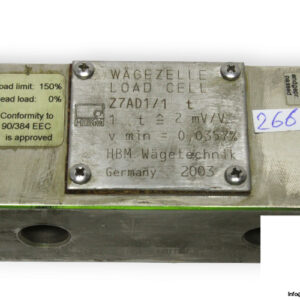

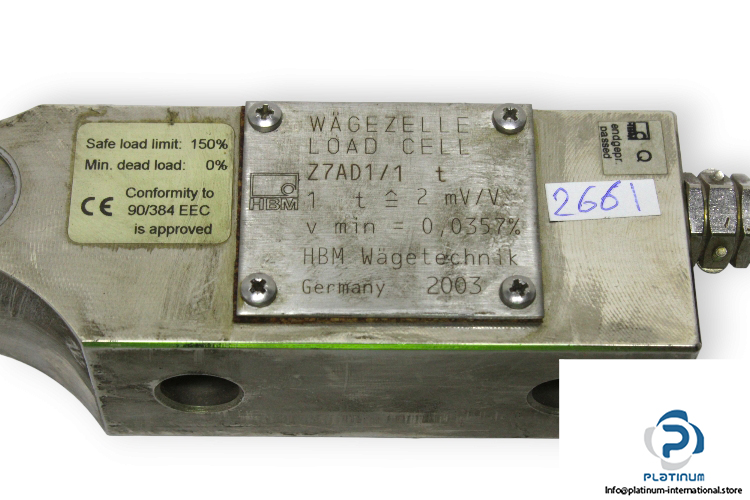

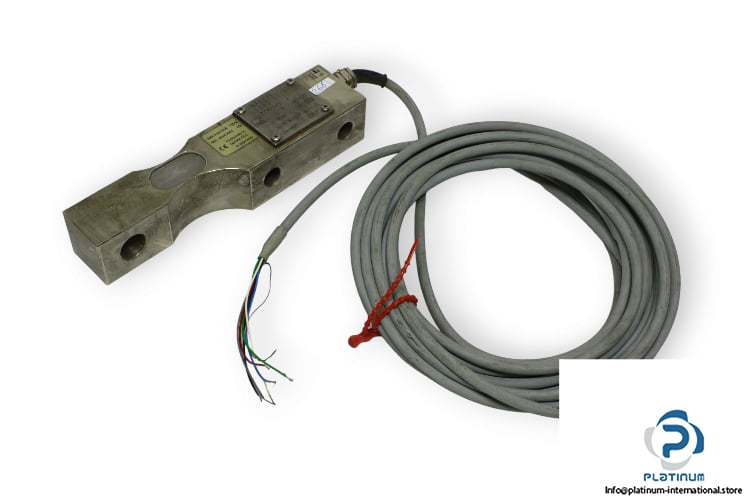

HBM Z7AD1/1 Load Cell

Manufacturer: HBM
Type: Compression load cell
Model: Z7AD11

Special Features:
-Complies with OIML R60 regulations up to 3000 d
-Max. capacities: 500 kg … 10 t
-Low transducer height
-Robust design
-Explosion protection designs as per ATEX and IECEx
Min. load cell verification interval: 0.0357 V min
Sensitivity: 2 mV/V
Max. capacity: 1 T
Input resistance: >350 Ω
Material: Steel, galvanized
Nominal rang of excitation voltage: 0.5 … 12 V
Operating temperature range: -30 … +70 °C
Degree of protection: IP 67
