Heidenhain ECN 113 2048 27S17-58 Absolute Encoder

Name: HEIDENHAIN ECN 113 2048 27S17-58 ABSOLUTE ENCODER
SKU: 1059040
Price: 399.99 USD
Availability: InStock

heidenhain-ECN-113-2048-27S17-58-absolute-encoder-(used)

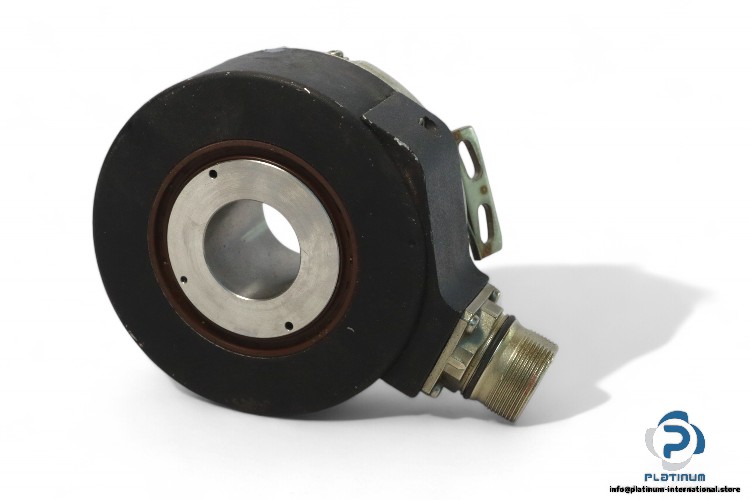

heidenhain-ECN-113-2048-27S17-58-absolute-encoder-(used)-1

heidenhain-ECN-113-2048-27S17-58-absolute-encoder-(used)-2

heidenhain-ECN-113-2048-27S17-58-absolute-encoder-(used)-3

Gebraucht

Auf Lager1 EinheitVersandbereit

399,99$

ABSOLUTE ENCODER HEIDENHAIN ECN 113 2048 27S17-58 Encoder bietet hochauflösende EnDat 2.2-Schnittstelle, 8192 PPR und zuverlässige Leistung unter rauen Industriebedingungen.

Hersteller

HEIDENHAIN

SKU

1059040

Kategorie

Rotary Encoders

Zustand

Gebraucht

113 2/2 2048 27S17-58 8192 Absolute Count ECN Encoder EnDat Feedback Flange Heidenhain Industrial Interface IP64 Line M23 Motion PPR

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

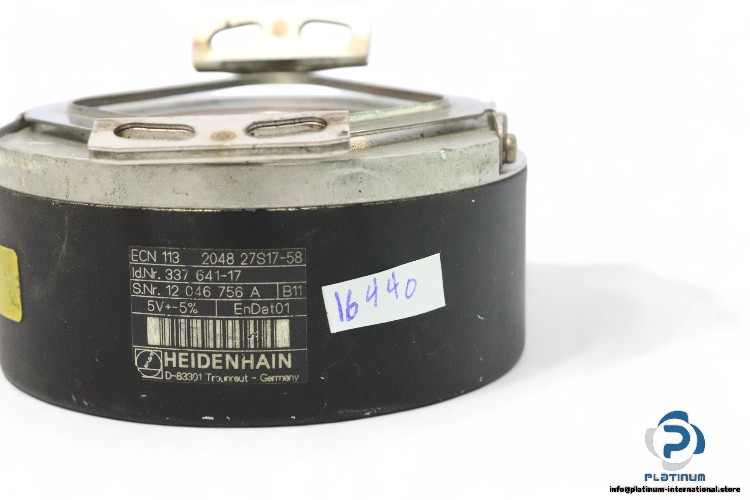

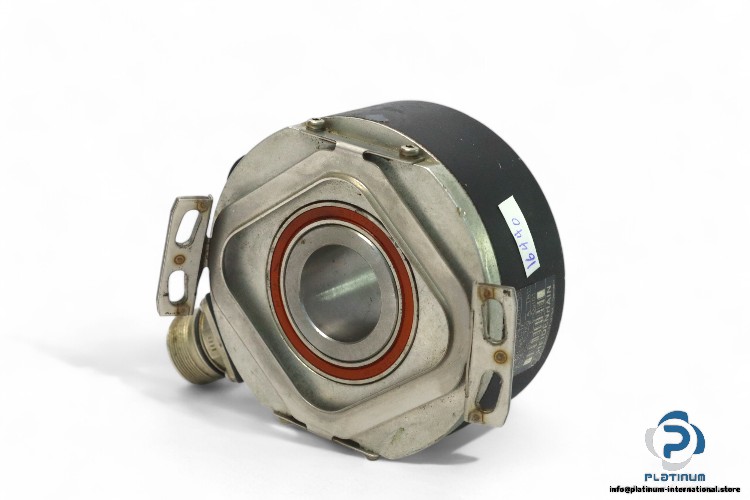

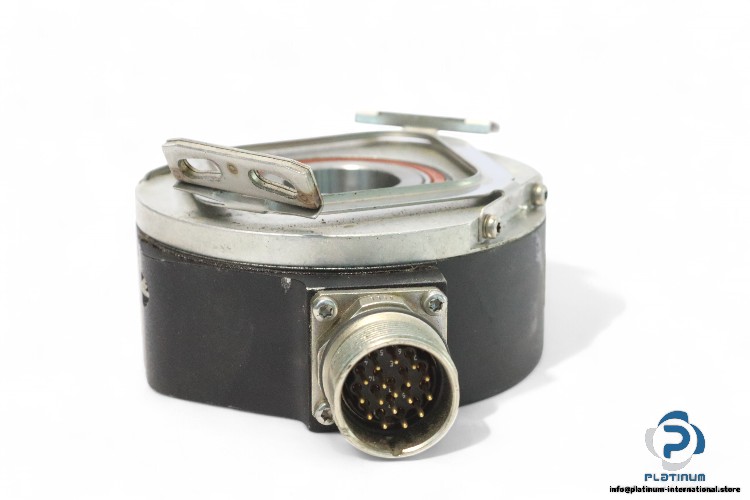

HEIDENHAIN ECN 113 2048 27S17-58 ABSOLUTE ENCODER

The HEIDENHAIN ECN113204827S1758 is a high-resolution absolute encoder designed for precision motion control in advanced automation and industrial environments. With EnDat 2.2 interface, robust build, and excellent temperature and speed tolerance, it delivers superior feedback reliability and durability.

Manufacturer: HEIDENHAIN

Type: Absolute Encoder

Model: ECN 113 2048 27S17-58

Part No.: 337641-17

Interface	EnDat 2.2
Positions Per Revolution	8192 PPR (13 bits)
Line Counts	2048
Incremental Signals	1 VPP
Electrical Permissible Speed Deviation	600 rpm
Mechanical Permissible Speed	D > 30 mm: ‰¤ 4000 rpm; D ‰¤ 30 mm: ‰¤ 6000 rpm
Supply Voltage	3.6 / 14 V DC
Current Consumption (without Load)	5 V: ‰¤ 85 mA
Power Consumption (Max.)	3.6 V: ‰¤ 620 mW / 14 V: ‰¤ 720 mW
Electrical Connection	Flange socket M23, radial / Cable 1 m or 5 m, with or without M23 coupling
Hollow Shaft	25 mm
Connection	M23 flange socket, radial
Protection Class	IP64
Operating Temperature	-40 / 100 °C
