Heidenhain ROD 323.001-1024 Incremental Encoder
400,00$
Inkrementalgeber HEIDENHAIN ROD 323.001-1024 ist ein 1024 PPR Encoder mit TTL (RS 422) Ausgang, 15 mm Hohlwelle, 5 VDC Versorgung und bis zu 8500 U/min. Ideal für Präzision in CNC-Maschinenanwendungen.

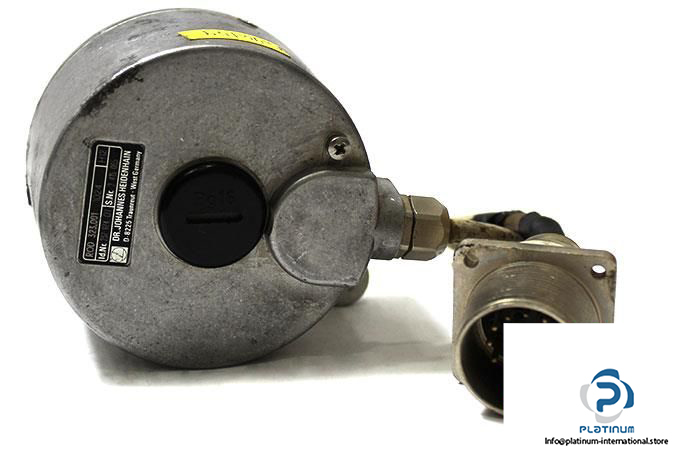

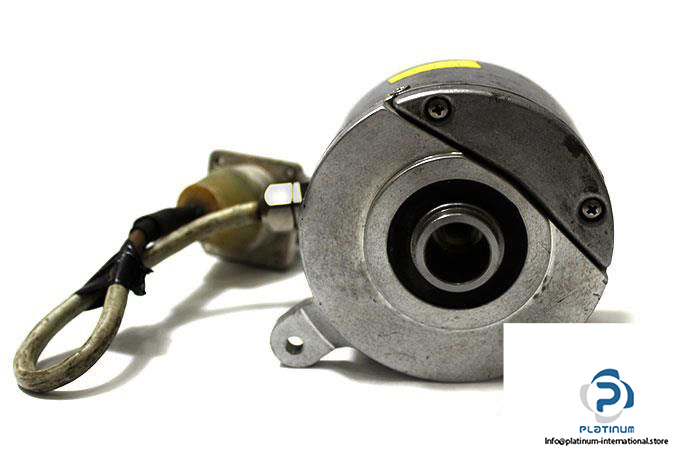

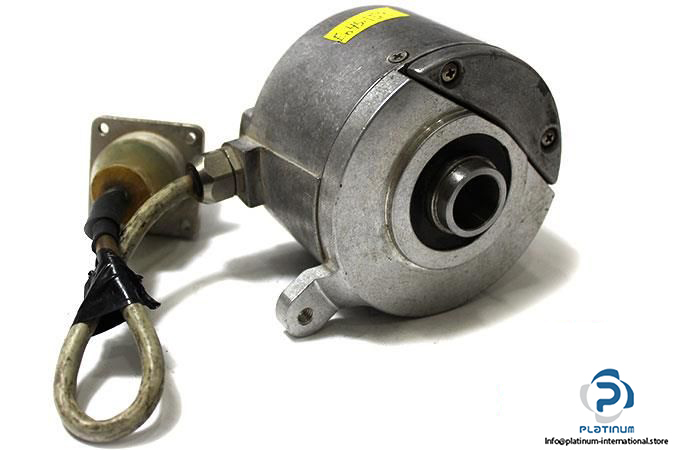

HEIDENHAIN ROD 323.001-1024 INCREMENTAL ENCODER
The HEIDENHAIN ROD 323.001-1024 is a high-resolution incremental encoder designed for high-precision motion control in CNC machinery. Built with a durable hollow shaft design and advanced TTL (RS 422) output, it ensures reliable signal transmission and robust performance in demanding environments.
Manufacturer: HEIDENHAIN
Type: Incremental Encoder

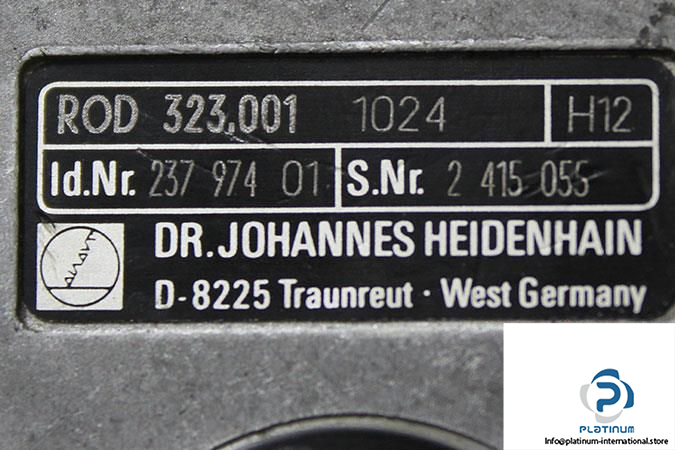

Model: ROD 323.001-1024
ID No.: 237 974 01
Serial No.: 2 415 055
Installed for: Mostly on CNC machine industry
| Shaft Design | Hollow shaft |
| Shaft Diameter | 15 mm |
| Voltage Supply | 5 VDC |
| Resolution | 1024 Pulses Per Revolution (PPR) |
| Output Signals | TTL (RS 422) |
| Maximum Speed | 8500 rpm |
| Max. Pulse Frequency | 300 kHz |
| Protection Class | IP 64 |
| Max Temperature | 100 °C |
