Heidenhain ROD 426–500 Incremental Encoder

Name: HEIDENHAIN ROD 426–500 INCREMENTAL ENCODER
Brand: HEIDENHAIN
SKU: 968925
Price: 200.00 USD
Availability: InStock

heidenhain-rod-426-500-incremental-encoder-1

heidenhain-rod-426-500-incremental-encoder-2

heidenhain-rod-426-500-incremental-encoder-3

Gebraucht

Auf Lager1 EinheitVersandbereit

200,00$

INCREMENTAL ENCODER HEIDENHAIN ROD 426-500 inkrementaler Drehgeber mit 500 PPR, 6 mm Vollwelle, TTL (RS 422) Ausgang und IP67 Schutz, ideal für hochpräzise Hochgeschwindigkeitsanwendungen.

Hersteller

HEIDENHAIN

SKU

968925

Kategorie

Rotary Encoders

Zustand

Gebraucht

426-500 500 6 Control Encoder Heidenhain High-Speed Incremental Industrial IP67 mm Motion Positioning PPR Precision ROD RS422 Sensor shaft TTL

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

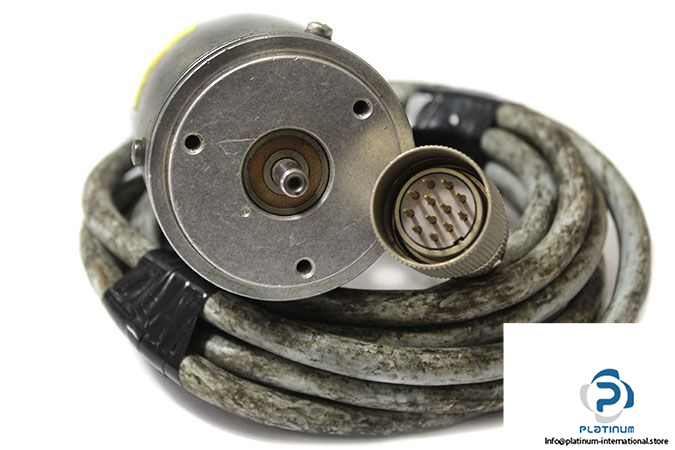

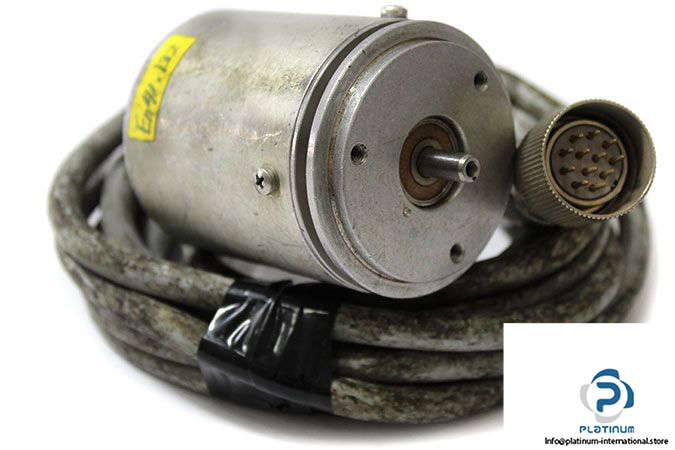

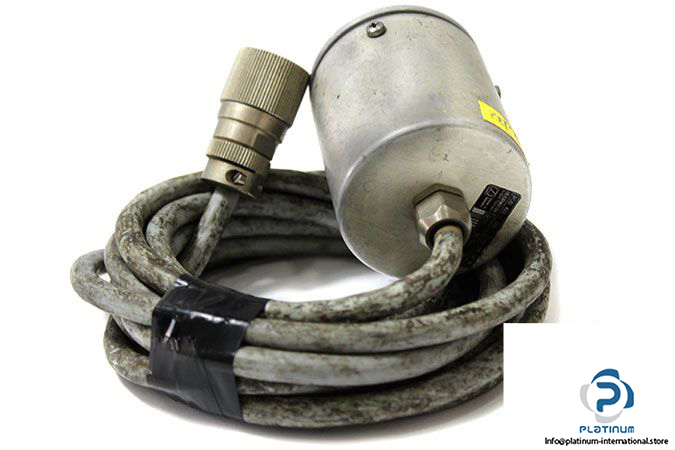

HEIDENHAIN ROD 426-500 INCREMENTAL ENCODER

The HEIDENHAIN ROD 426-500 is a high-precision incremental encoder engineered for demanding industrial environments. With a resolution of 500 pulses per revolution and robust build quality, it ensures reliable position feedback in automation and motion control systems.

Manufacturer: HEIDENHAIN

Type: Incremental Encoder

Model: ROD 426-500

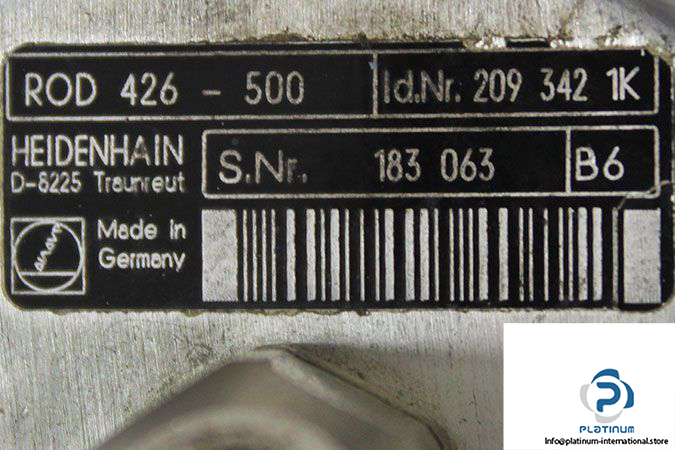

ID No.: 209 342 1K

SN: 183 063

Flange Design	Synchro Flange
Shaft Design	Solid Shaft
Shaft Diameter	6 mm
Voltage Supply	5 VDC
Resolution	500 PPR (Pulses Per Revolution)
Max. Current Consumption	120 mA
Signal Output	TTL (RS 422)
Max. Speed	16000 RPM
Max. Pulse Frequency	300 kHz
Protection Class	IP67 at Housing, IP64 at Shaft Inlet (IP66 Upon Request)
Max. Temperature	100 °C
