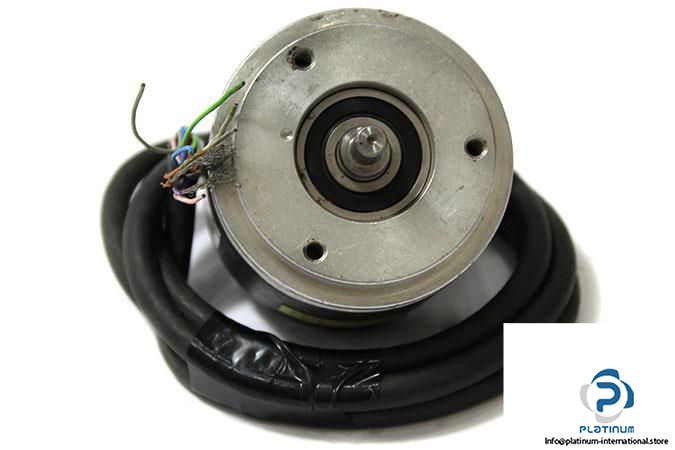

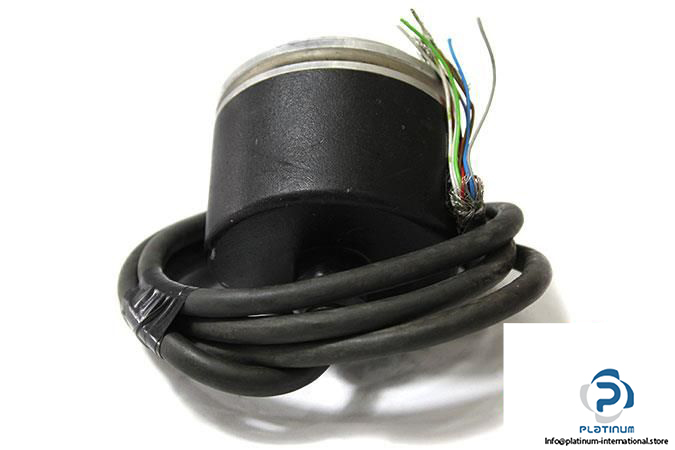

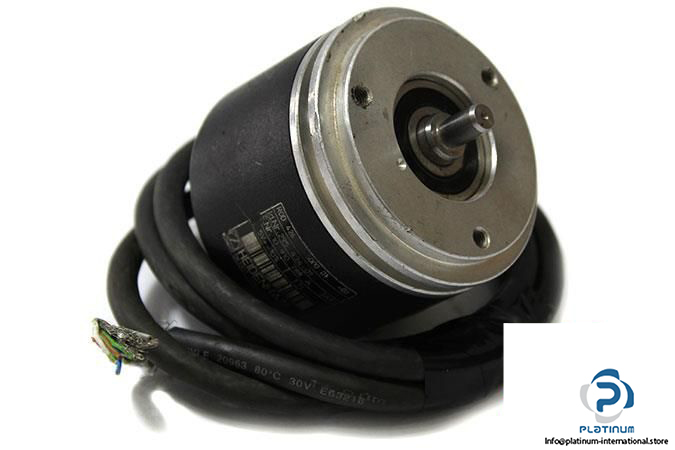

Heidenhain ROD 426 5000 01-03 Incremental Encoder

Name: HEIDENHAIN ROD 426 5000 01-03 INCREMENTAL ENCODER
Brand: HEIDENHAIN
SKU: 966107
Price: 245.00 USD
Availability: InStock


heidenhain-rod-426-5000-01-03-incremental-encoder3_675x450

heidenhain-rod-426-5000-01-03-incremental-encoder4_675x450

heidenhain-rod-426-5000-01-03-incremental-encoder5_675x450




Gebraucht

Auf Lager1 EinheitVersandbereit

245,00$

INCREMENTAL ENCODER

HEIDENHAIN ROD 426-5000-01 -03 offers 5000 PPR resolution, TTL output, and a 16000 rpm max speed. With IP67/IP64 protection, it’s ideal for precise, high-speed motion control.

Hersteller

HEIDENHAIN

SKU

966107

Kategorie

Rotary Encoders

Zustand

Gebraucht

-03 426-5000-01 5000 5V Control Encoder Heidenhain High-Speed Incremental IP67 Motion Output PPR ROD Sensor TTL

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

HEIDENHAIN ROD 426-5000-01 -03 INCREMENTAL ENCODER

The HEIDENHAIN ROD 426-5000-01 -03 is a high-resolution incremental encoder built for industrial-grade precision and performance. Featuring robust protection, TTL output, and high-speed capability, it is ideal for demanding motion control applications.

Manufacturer: HEIDENHAIN

Type: Incremental Encoder

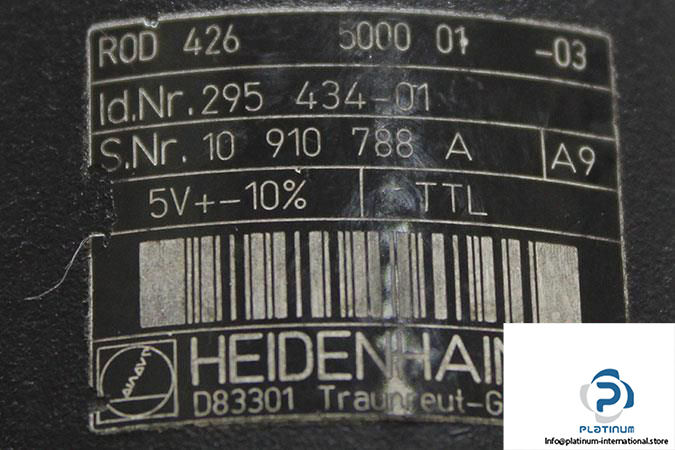

Model: ROD 426-5000-01 -03

ID No.: 295 434-01

SN: 10 910 788 A

Flange Design	Synchro flange
Shaft Design	Solid shaft
Shaft Diameter	6 mm
Voltage Supply	5 VDC
Resolution	5000 Pulse per revolution (PPR)
Max. Current Consumption	120 mA
Signal Output	TTL (RS 422)
Max Speed	16000 rpm
Max. Pulse Frequency	300 kHz
Protection Class	IP67 at housing, IP64 at shaft inlet
Max Temperature	100 °C
