Hiwin EGH15SA Linear Guideway Block
Neu
Auf Lager29 EinheitenVersandbereit
43,66$
Kompakter 15 mm Linearführungsblock von Hiwin mit quadratischem Profil, oberer Montage und mittlerer Tragfähigkeit, entwickelt für präzise, gleichmäßige und langlebige Linearbewegungsanwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

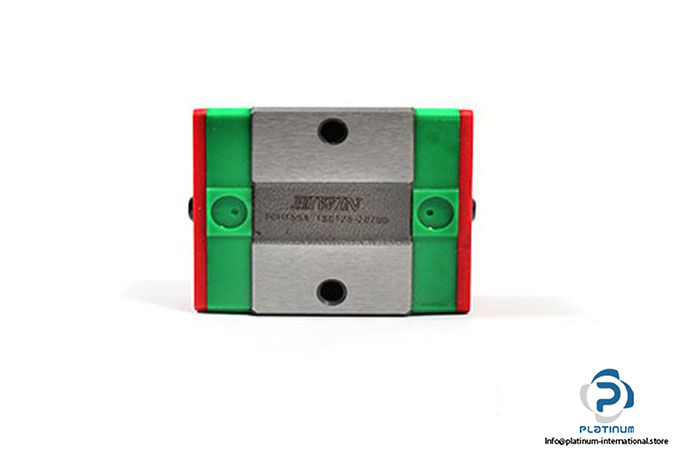

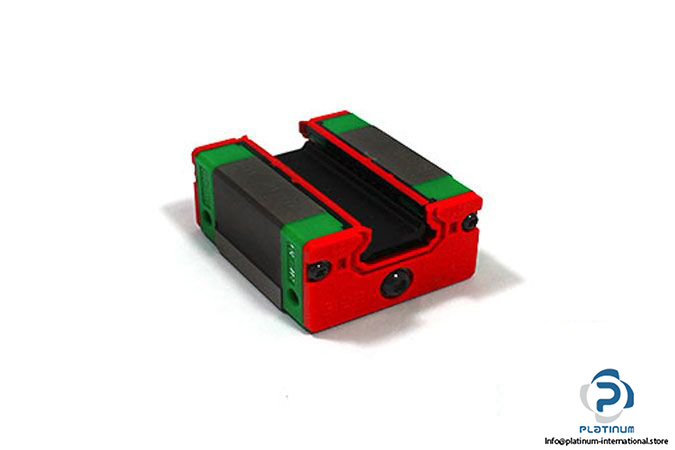

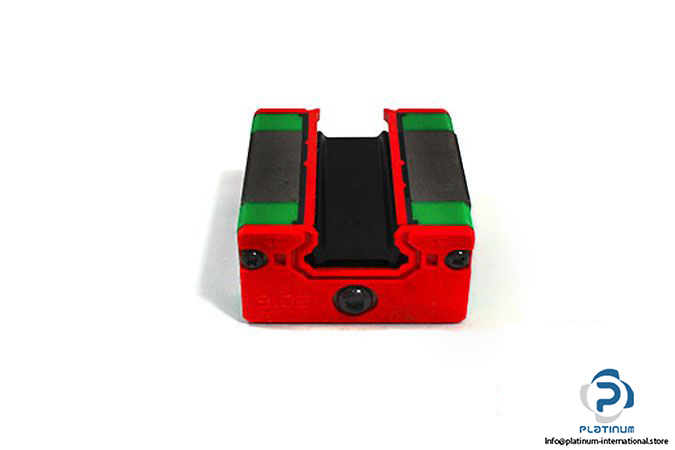

HIWIN EGH15SA LINEAR GUIDEWAY BLOCK
Designed for medium-load industrial motion systems, the Hiwin EGH15SA linear guideway block offers precision, rigidity, and smooth linear movement. Its compact square shape and top-mounting design make it ideal for space-constrained automation setups.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGH15SA
Size: 15 mm
| Block Height | 19.5 mm |
| System Height | 24 mm |
| Block Width (W) | 34 mm |
| Block Length (L) | 40.1 mm |
| Thread Size | M3 x 16 |
| Rail Width | 15 mm |
| Rail Height | 12.5 mm |
| Hole Distance | 26 mm |
| Block Type | Square |
| Load Type | Medium Load |
| Block Mounting Type | From Top |
| Basic Dynamic Load Rating | 5.35 kN |
| Basic Static Load Rating | 9.40 kN |
