Hiwin HGW25HC Linear Guideway Block
Neu
Auf Lager85 EinheitenVersandbereit
92,25$
LINEAR GUIDEWAY BLOCK Flanschtyp Linearführungsblock von Hiwin, Größe 25 mm, ausgelegt für besonders hohe Lasten mit hoher dynamischer Kapazität und Flexibilität bei der Montage oben/unten.
0K675-612525HCCBlockBottomFlangeGuideGuidewayHeavyHGWHiwinIndustrialLinearLoadM8mmMotionmountPrecisionSuperThreadTop
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

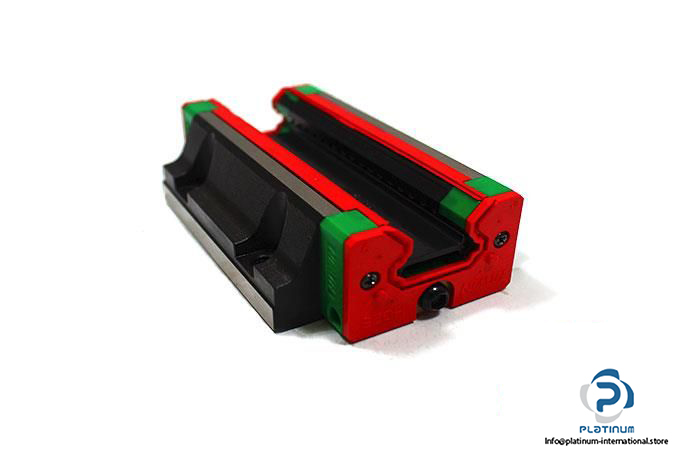

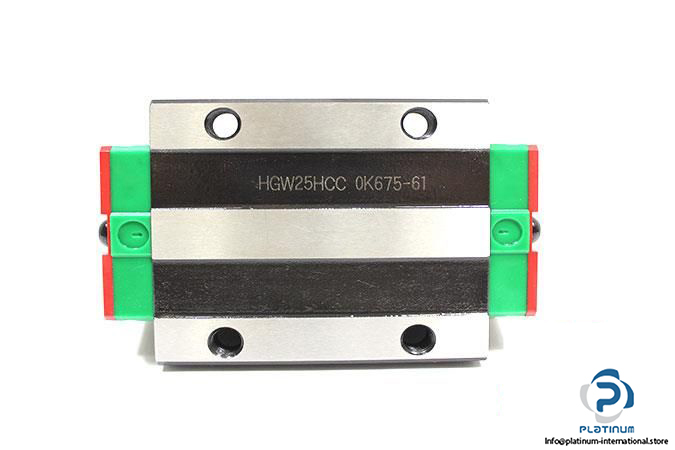

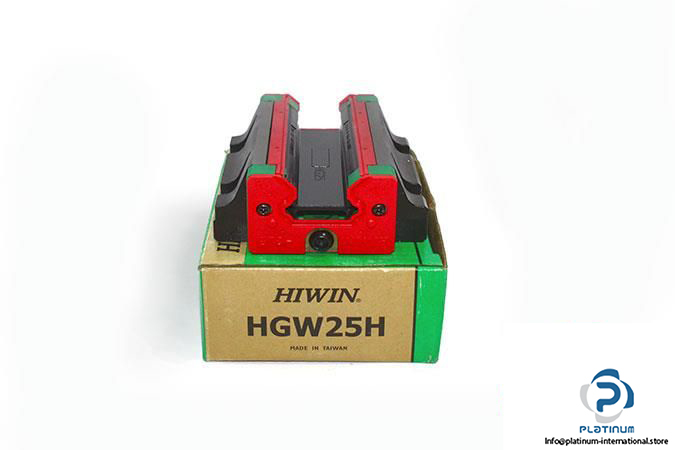

HIWIN HGW 25HCC 0K675-61 LINEAR GUIDEWAY BLOCK
This Hiwin linear guideway block is engineered for super heavy load industrial motion systems requiring high precision, rigidity, and long service life. Its flange design and dual mounting options offer flexibility in integration, making it ideal for demanding automation and linear motion setups.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGW 25HCC 0K675-61
| Size | 25 mm |
| Total Height H | 36 mm |
| Block Width W | 70 mm |
| Block Length L | 104.6 mm |
| Block Height | 30.5 mm |
| Rail Width | 23 mm |
| Rail Height | 22 mm |
| Distance Between Holes | 57, 45 mm |
| Block Type | Flange |
| Load Type | Super Heavy Load |
| Block Mounting Type | Top or Bottom |
| Precision Code | C |
| Thread Size | M8 |
| Basic Dynamic Load Rating C | 42.2 kN |
| Basic Static Load Rating C‚ | 69.07 kN |
