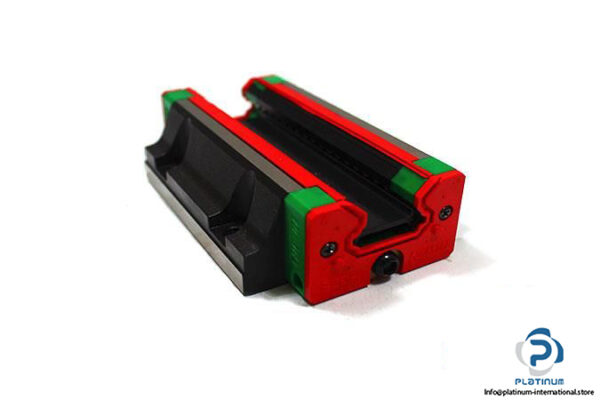

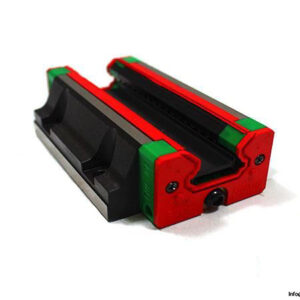

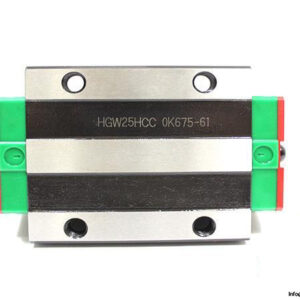

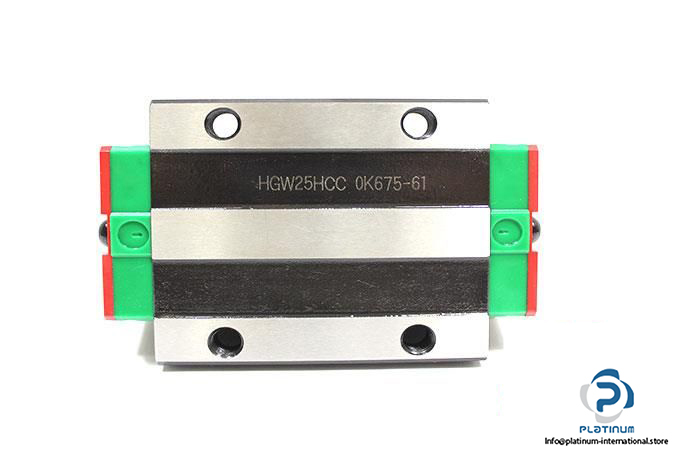

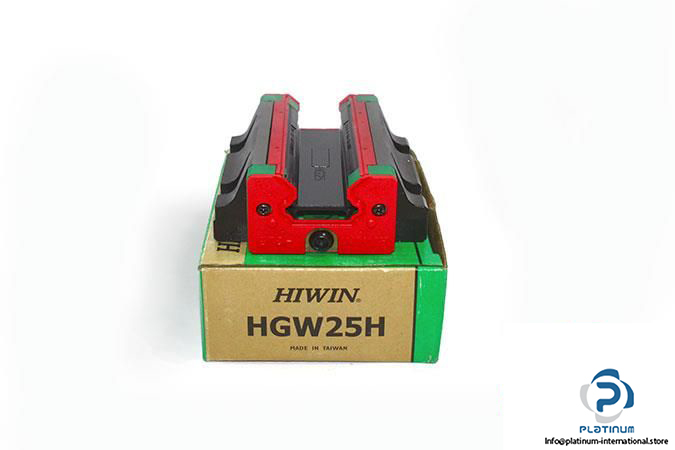

Hiwin HGW25HC Linear Guideway Block
New
In stock85 unitsReady to ship
92,25$
LINEAR GUIDEWAY BLOCK
Flange-type linear guideway block from Hiwin, size 25 mm, designed for super heavy loads with high dynamic capacity and top/bottom mounting flexibility.0K675-612525HCCBlockBottomFlangeGuideGuidewayHeavyHGWHiwinIndustrialLinearLoadM8mmMotionmountPrecisionSuperThreadTop
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
HIWIN HGW 25HCC 0K675-61 LINEAR GUIDEWAY BLOCK
This Hiwin linear guideway block is engineered for super heavy load industrial motion systems requiring high precision, rigidity, and long service life. Its flange design and dual mounting options offer flexibility in integration, making it ideal for demanding automation and linear motion setups.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGW 25HCC 0K675-61
| Size | 25 mm |
| Total Height H | 36 mm |
| Block Width W | 70 mm |
| Block Length L | 104.6 mm |
| Block Height | 30.5 mm |
| Rail Width | 23 mm |
| Rail Height | 22 mm |
| Distance Between Holes | 57, 45 mm |
| Block Type | Flange |
| Load Type | Super Heavy Load |
| Block Mounting Type | Top or Bottom |
| Precision Code | C |
| Thread Size | M8 |
| Basic Dynamic Load Rating C | 42.2 kN |
| Basic Static Load Rating C‚ | 69.07 kN |
