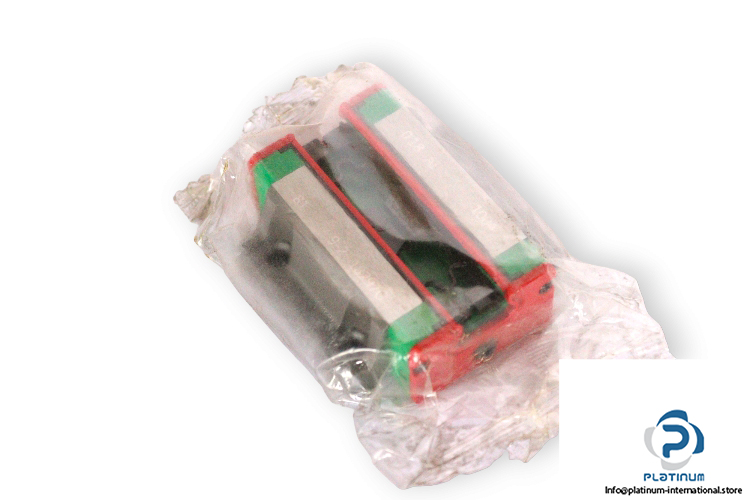

Hiwin QEW15CA Linear Guideway Block
Neu
Auf Lager4 EinheitenVersandbereit
LINEARER FÜHRUNGSBLOCK Hiwin Flansch-Linearblock QEW15CA mit 15 mm Schienenbreite, obere Montage und hoher Tragfähigkeit, entwickelt für Präzision, Langlebigkeit und Schwerlastautomatisierung.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
HIWIN QEW15CA LINEAR GUIDEWAY BLOCK
This precision-engineered linear guideway block from Hiwin is designed for high-load applications with compact dimensions. Ideal for automated systems requiring stable motion, it features top mounting, a flange block style, and high dynamic/static load ratings for long-lasting performance under heavy-duty conditions.
Manufacturer: Hiwin
Type: Linear Guideway Block

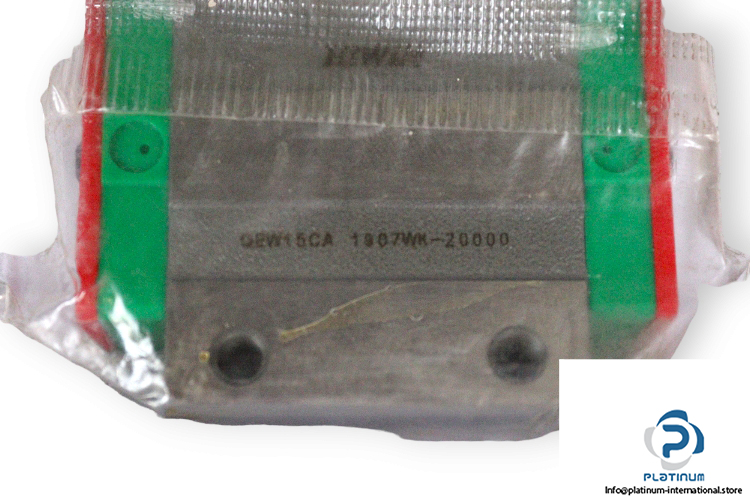

MNR: QEW15CA 1907WK-20000

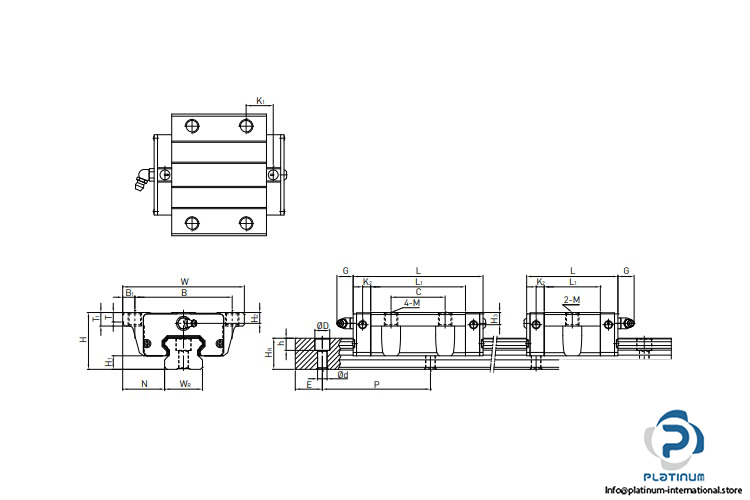

| Size | 15 mm |
| Block Height | 20 mm |
| System Height | 24 mm |
| Block Width (W) | 52 mm |
| Block Length (L) | 56.8 mm |
| Thread Size | M3X16 |
| Rail Width | 15 mm |
| Rail Height | 12.5 mm |
| Distances Between Holes | 41, 26 mm |
| Block Type | Flange |
| Load Type | Heavy Load |
| Block Mounting | Top |
| Basic Dynamic Load Rating | 12.53 kN |
| Basic Static Load Rating | 15.28 kN |
