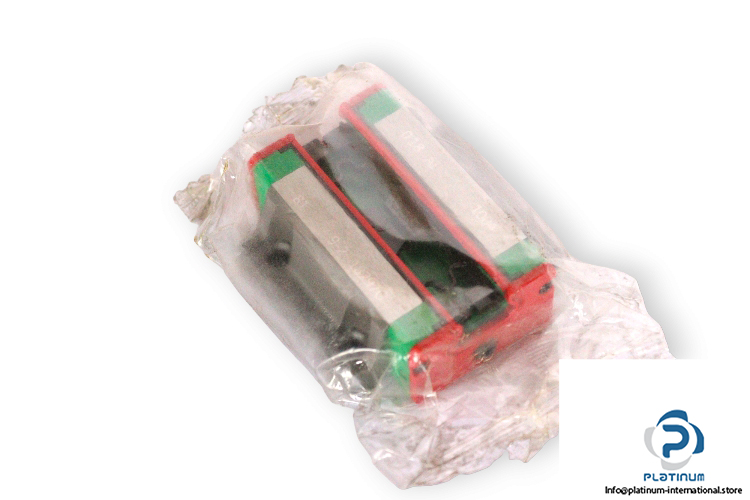

Hiwin QEW15CA Linear Guideway Block

In stock4 unitsReady to ship

LINEAR GUIDEWAY BLOCK

Hiwin flange-type linear block QEW15CA with 15 mm rail width, top mounting, and high load capacity”engineered for precision, durability, and heavy-duty automation.

Manufacturer
HIWIN
SKU
1029364
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

HIWIN QEW15CA LINEAR GUIDEWAY BLOCK

This precision-engineered linear guideway block from Hiwin is designed for high-load applications with compact dimensions. Ideal for automated systems requiring stable motion, it features top mounting, a flange block style, and high dynamic/static load ratings for long-lasting performance under heavy-duty conditions.

Manufacturer: Hiwin

Type: Linear Guideway Block

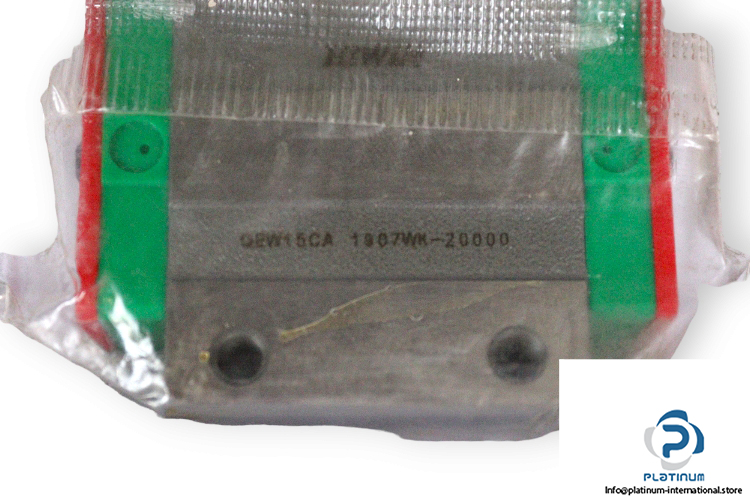

MNR: QEW15CA 1907WK-20000

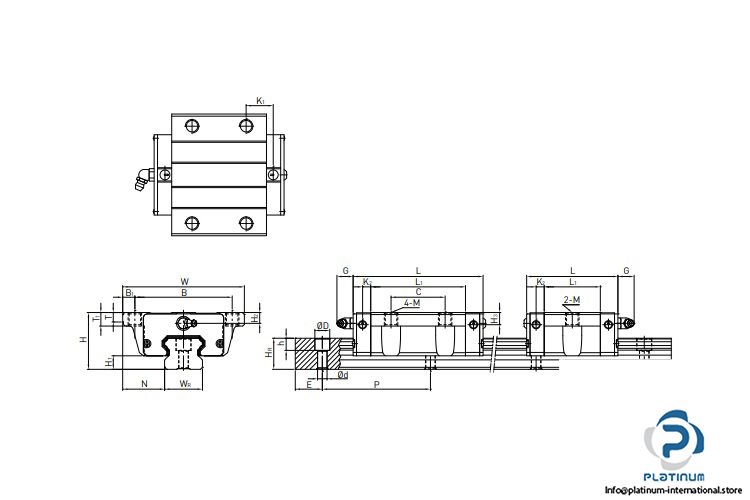

Size15 mm
Block Height20 mm
System Height24 mm
Block Width (W)52 mm
Block Length (L)56.8 mm
Thread SizeM3X16
Rail Width15 mm
Rail Height12.5 mm
Distances Between Holes41, 26 mm
Block TypeFlange
Load TypeHeavy Load
Block MountingTop
Basic Dynamic Load Rating12.53 kN
Basic Static Load Rating15.28 kN
