Hiwin QEW20SA Linear Guideway Block
Neu
Auf Lager12 EinheitenVersandbereit
54,96$
LINEAR GUIDEWAY BLOCK HIWIN QEW20SA Linearblock mit SynchMotion™-Technologie bietet 20 mm Größe, Flanschmontage und mittlere Tragfähigkeit, ideal für leise und präzise lineare Bewegung in kompakten Anwendungen.
20BlockCompactFlangeGuideGuidewayHiwinLinearLoadlowMediummmMotionProfileQEQEW20SASeriesSynchMotionType
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

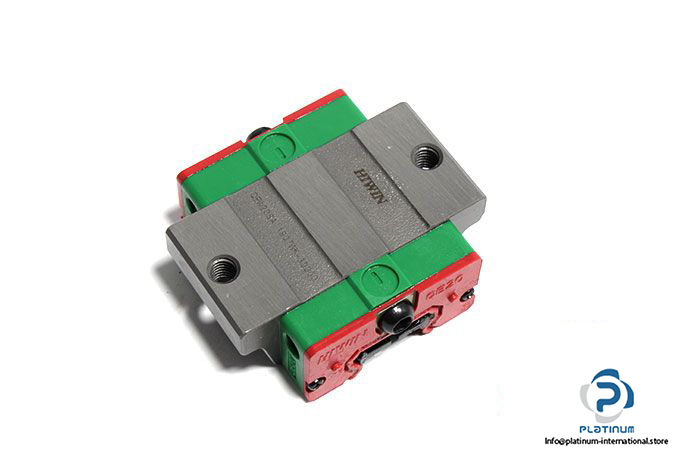

HIWIN QEW20SA LINEAR GUIDEWAY BLOCK
This low-profile linear guideway block from HIWIN's QE Series features SynchMotion„¢ Technology for smooth, quiet operation and improved lubrication. The QEW20SA is engineered for medium-load applications, offering high rigidity, precision, and stability in motion systems requiring compact and efficient linear movement.
Manufacturer: HIWIN
Type: Linear Guideway Block
Model: QEW20SA

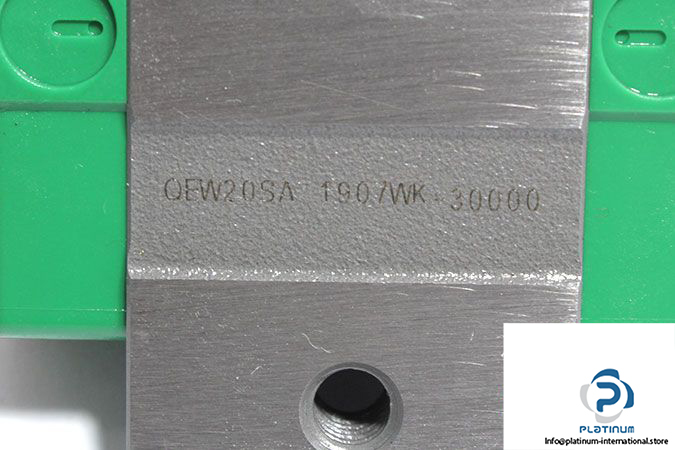

MRN: QEW20SA 1907WK-30000
Basic Load Ratings, Linear:
| Size | 20 mm |
| Total Height H | 28 mm |
| Block Width W | 59 mm |
| Block Length L | 50 mm |
| Block Height | 22 mm |
| Distance Between Holes | 49 mm |
| Dynamic Cr | 11.57 kN |
| Static C0r | 12.1 kN |
| Series | QE Series; Low Profile Linear Guideway, with SynchMotion Technology |
| Block Type | W; Flange Type |
| Load Type | S; Medium Load |
