Hiwin QEW20SA Linear Guideway Block
New
In stock12 unitsReady to ship
54,96$
LINEAR GUIDEWAY BLOCK
HIWIN QEW20SA linear block with SynchMotion„¢ Technology offers 20 mm size, flange-type mounting, and medium load capacity, ideal for quiet and precise linear motion in compact applications.20BlockCompactFlangeGuideGuidewayHiwinLinearLoadlowMediummmMotionProfileQEQEW20SASeriesSynchMotionType
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
HIWIN QEW20SA LINEAR GUIDEWAY BLOCK
This low-profile linear guideway block from HIWIN's QE Series features SynchMotion„¢ Technology for smooth, quiet operation and improved lubrication. The QEW20SA is engineered for medium-load applications, offering high rigidity, precision, and stability in motion systems requiring compact and efficient linear movement.
Manufacturer: HIWIN
Type: Linear Guideway Block
Model: QEW20SA

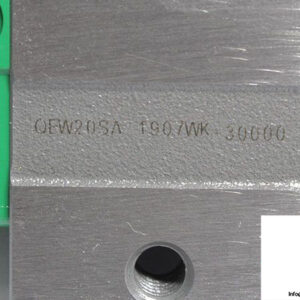

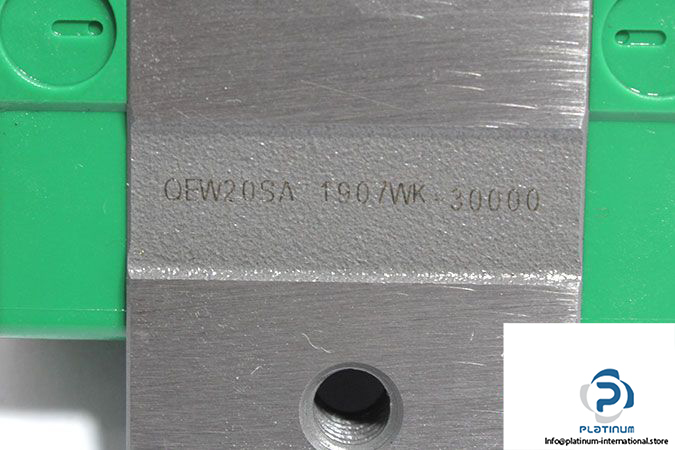

MRN: QEW20SA 1907WK-30000
Basic Load Ratings, Linear:
| Size | 20 mm |
| Total Height H | 28 mm |
| Block Width W | 59 mm |
| Block Length L | 50 mm |
| Block Height | 22 mm |
| Distance Between Holes | 49 mm |
| Dynamic Cr | 11.57 kN |
| Static C0r | 12.1 kN |
| Series | QE Series; Low Profile Linear Guideway, with SynchMotion Technology |
| Block Type | W; Flange Type |
| Load Type | S; Medium Load |
