Hohner 10I1 H33Z4A1 500 Incremental Encoder

Name: HOHNER 10I1 H33Z4A1 500 INCREMENTAL ENCODER
SKU: 1044973
Availability: LimitedAvailability

hohner-10I1-H33Z4A1-500-incremental-encoder-(used)

hohner-10I1-H33Z4A1-500-incremental-encoder-(used)-1

hohner-10I1-H33Z4A1-500-incremental-encoder-(used)-2

hohner-10I1-H33Z4A1-500-incremental-encoder-(used)-3

Gebraucht

Auf Lager1 EinheitVersandbereit

INKREMENTALGEBER Hohner 10I1H33Z4A1500 aus Edelstahl mit 500 ppr Auflösung, Vollwelle, NPN-Ausgang, IP67-Schutz und weitem Spannungsbereich. Ideal für industrielle Automatisierungssysteme.

Hersteller

HOHNER

SKU

1044973

Kategorie

Rotary Encoders

Zustand

Gebraucht

10I1H33Z4A1500 10mm 500 Encoder Hohner Incremental Industrial IP67 NPN Output PPR Sensor shaft stainless Steel

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

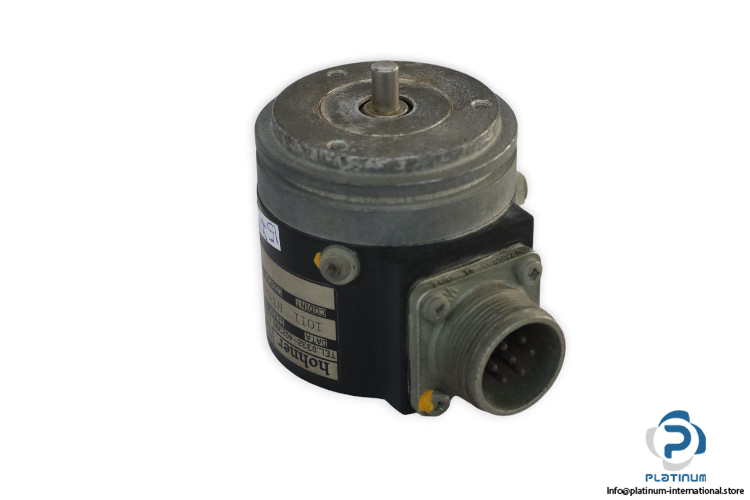

HOHNER 10I1H33Z4A1500 INCREMENTAL ENCODER

The Hohner 10I1H33Z4A1500 is a robust incremental encoder designed for high precision and durability in industrial automation environments. Built with stainless steel housing and IP67 protection, this encoder offers reliable performance in demanding applications.

Manufacturer: Hohner

Type: Incremental Encoder

Model: 10I1H33Z4A1500

Series: 10I

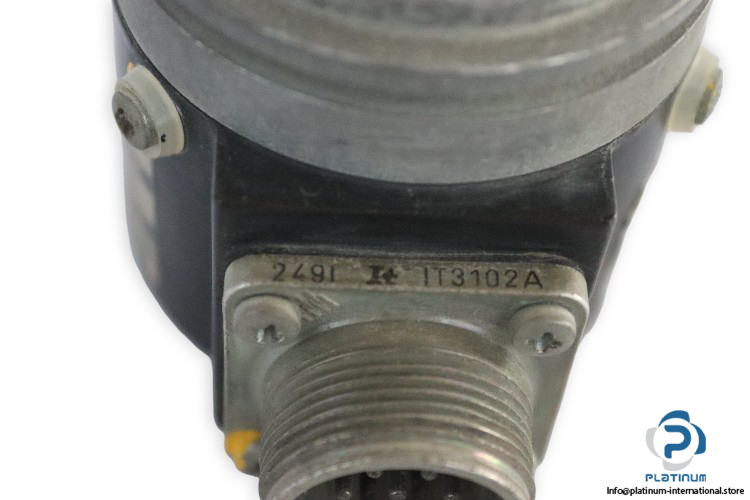

REF NO: 249I / IT3102A

Input Voltage	11 / 30 V DC
Consumption	40 mA
Frequency	100 kHz
Principle of Operation	Incremental
Shaft Type	Solid Shaft
Output	NPN Standard (Pull-up Resistor Included)
Resolution	500 ppr
External Diameter	58 mm
Shaft Diameter	10 mm
Protection Degree	IP67
Material	Stainless Steel

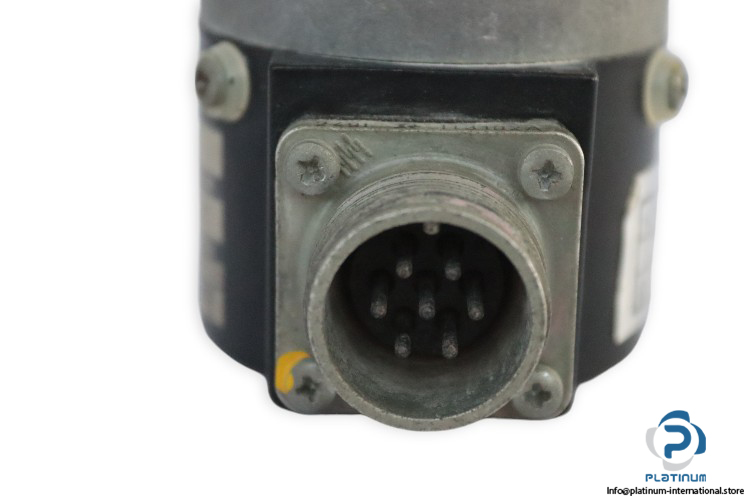

Output Type	Connector (8 Pins)
Operating Temperature	-20 / +85°C
