Hubner Berlin TG 74 D/ Tachogenerator
299,99$
Tachogenerator Hubner Berlin TG 74 d/ Tachogenerator ist ein explosionsgeschütztes Geschwindigkeitsmessgerät mit massivem Schaft, 1000 min⁻¹ Höchstgeschwindigkeit und IP54 Schutz für industrielle Anwendungen.
Hubner Berlin TG 74 d/ Tachogenerator

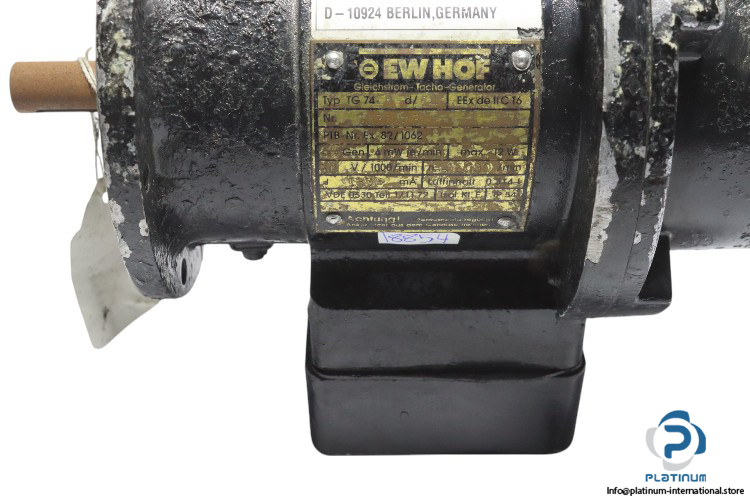

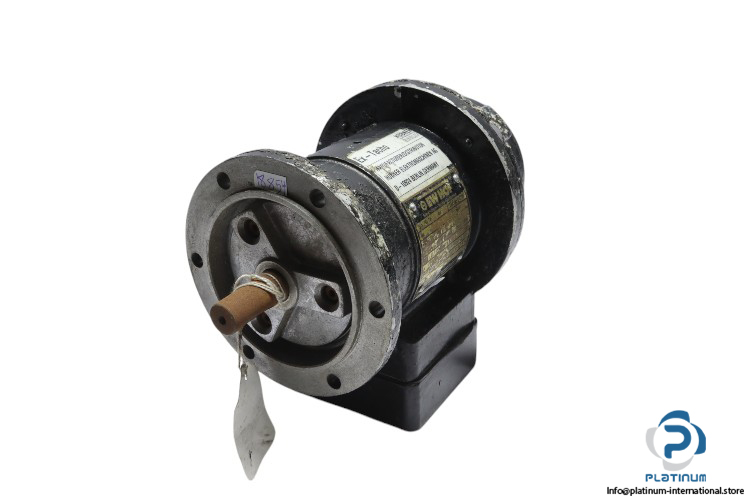

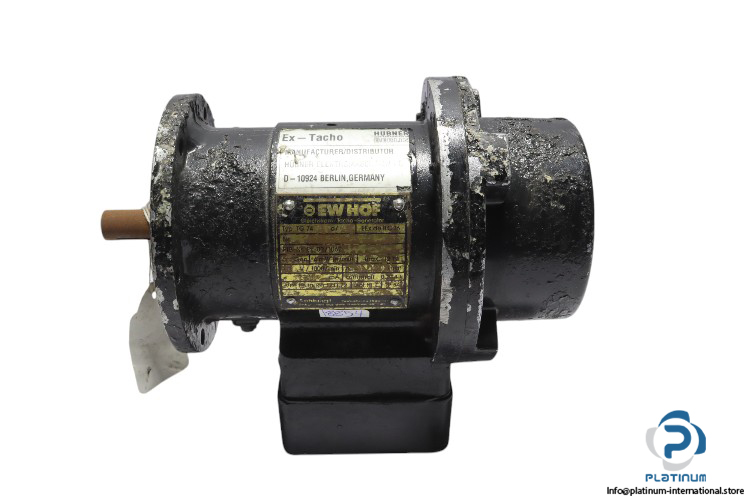

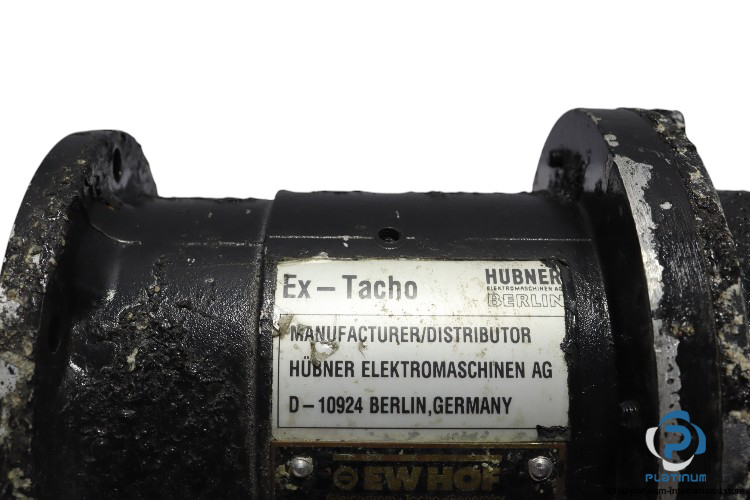

The Hubner Berlin TG 74 d/ Tachogenerator is a precision speed measurement device designed for use in industrial environments, including explosive areas. Certified to EEx de IIC T6 standards, this tachogenerator ensures reliable performance with a solid shaft design and a maximum operating speed of 1000 min»¹.
Manufacturer: Hubner Berlin
Type: Tachogenerator
Model: TG 74 d/
PTB No.: Ex-82 / 1062
| Explosive Environments Certification | EEx de IIC T6 |
| Maximum Operating Speed | 1000 min»¹ |
| Shaft Type | Solid Shaft |
| Shaft Diameter | 11 mm |
| Power | 12 W |
| Torque | 1.5 Ncm |
| Operating Temperature | -30 to 130 °C |
| Protection | IP54 |
| Standard | VDE 0530/11.72 |
