Hubner TDP 0,2 T-4 Tachogenerator
Gebraucht
Auf Lager1 EinheitVersandbereit
322,22$
Drehzahlgeber HUBNER BERLIN TDP0,2 T-4 mit 60 V Versorgungsspannung, max. Drehzahl 9000 min⁻¹, 115 mm Flansch, Vollwelle, IP55 Schutz und Aluminium-Druckgussgehäuse.
0530241339160V9000AluminumBerlinHousingHubnerIndustrialIP55meamin»¹shaftSolidSpeedT-4TachogeneratorTDP0VDE
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

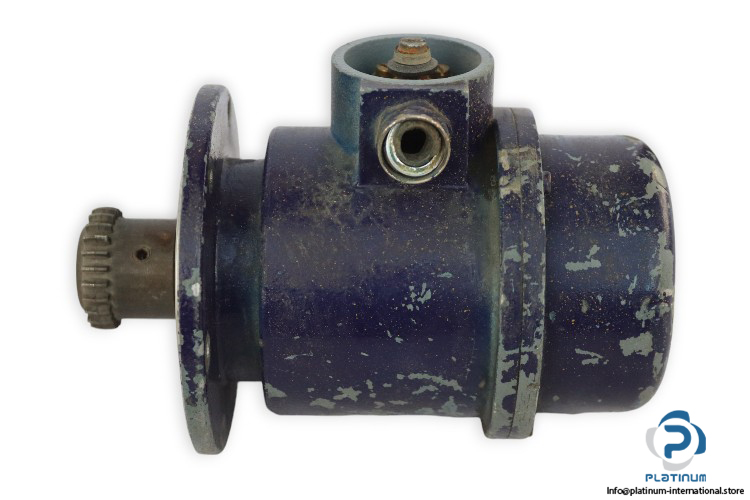

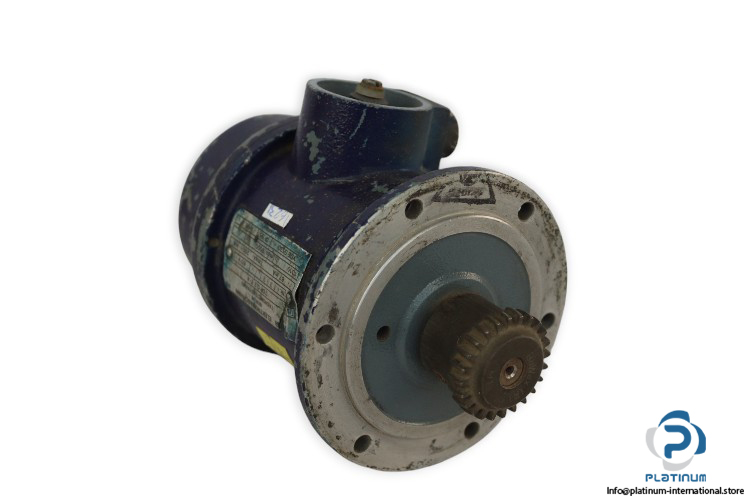

HUBNER BERLIN TDP0,2 T-4 Tachogenerator
The HUBNER BERLIN TDP0,2 T-4 is a precision tachogenerator designed for accurate speed measurement in industrial drive systems. Built with a robust aluminum housing and stainless-steel shaft, it offers durability, reliability, and compliance with VDE 0530 standards.

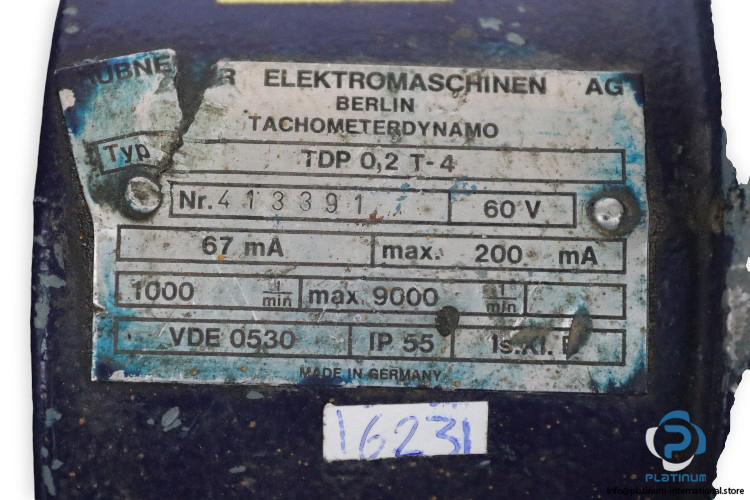

Manufacturer: HUBNER BERLIN
Type: Tachogenerator
Model: TDP0,2 T-4
Part No.: 413391
| Supply Voltage | 60 V |
| Maximum Operating Speed | 9000 min»¹ |
| Shaft Type | Solid shaft |
| Size (Flange) | 115 mm |
| Torque | 1.5 Ncm |
| Connection | Terminal box |
| Operating Temperature | -30 / +130 °C |
| Protection | IP55 |
| Materials | Housing: Aluminum die-cast, Shaft: Stainless steel |
| Standard | VDE 0530 |
