ICP CON I-7188E2 Converter
Gebraucht
Auf Lager1 EinheitVersandbereit
59,99$
Ethernet to Serial Converter
The ICP CON I-7188E2 connects Ethernet networks with RS-232 and RS-485 serial devices. With a 40 MHz CPU and wide input voltage range, it offers stable and programmable communication for industrial control applications.AcquisitionAutomationCommunicationCONConverterDataEthernetI-7188E2ICPIndustrialInterfaceModuleNetworkingprogrammableRS232RS485Serialto
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

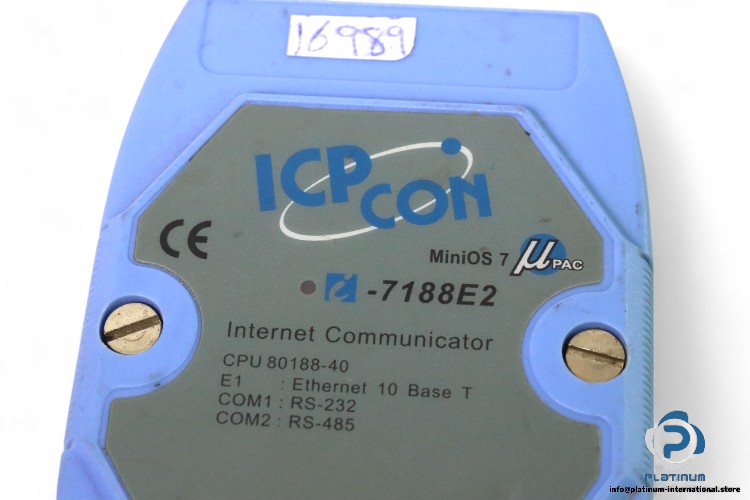

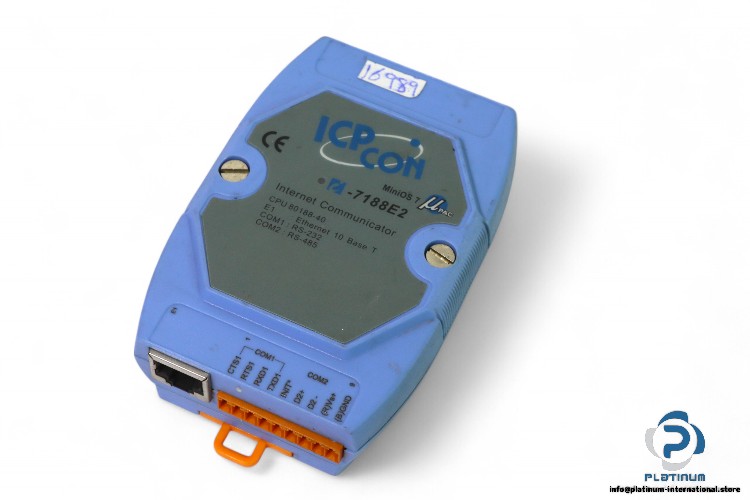

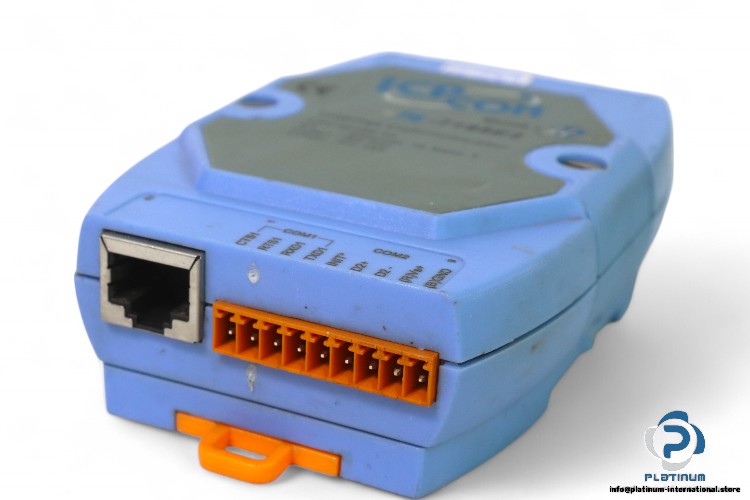

ICP CON I-7188E2 Programmable Ethernet to 2x Serial Ports Converter
The ICP CON I-7188E2 is a compact and programmable Ethernet to serial converter designed for industrial communication and control applications. It features dual serial ports (RS-232 and RS-485) and an Ethernet interface, enabling seamless data exchange between field devices and networks. With a powerful 80188 CPU and wide voltage range, it delivers reliable performance under demanding operating conditions.
Manufacturer: ICP CON
Type: Programmable Ethernet to 2x Serial Ports Converter (1x RS-232, 1x RS-485)
Model: I-7188E2
Communication Interface:
¢ 1 × RS-232 (TXD, RXD, RTS, CTS, GND)
¢ 1 × RS-485 (Data+, Data-)
| CPU | 80188, 40 MHz |
| Input Range | +10 VDC / +30 VDC (Non-regulated) |
| Consumption Power | 2 W |
| Operating Temperature | -25 / +75 °C |
| Dimensions | 123 mm × 72 mm × 33 mm |
| Ethernet Port | 10 BASE-T |
