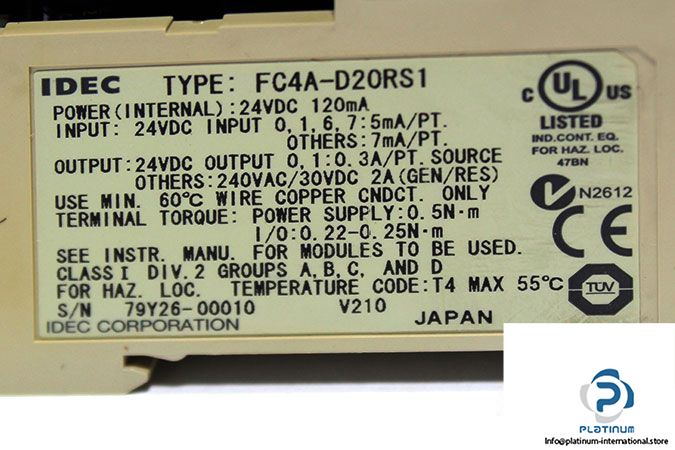

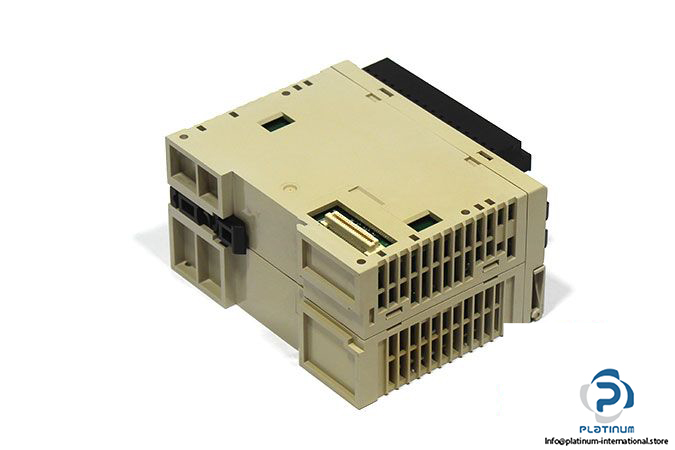

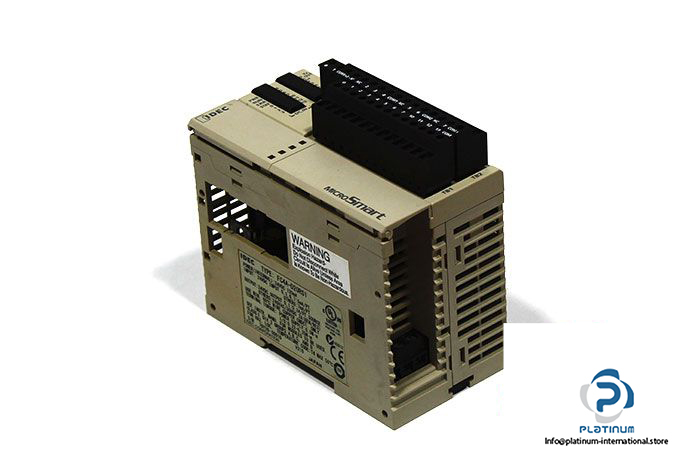

Idec FC4A-D20RS1 CPU Module

Manufacturer: Idec

Type: CPU Module

Model: FC4A-D20RS1

Rated Power Voltage: 24V DC

Allowable Voltage Range: 20.4 to 26.4V DC (including ripple)

Maximum Input Current: 700 mA (26.4V DC) *1

Maximum Power Consumption: 17W (26.4V DC) *1

Allowable Momentary Power Interruption: 10 ms (at 24V DC)

Inrush Current: 50A maximum (24V DC)

I/O Points: 12/8 points (Note), 244 points max

Relay Output: 240V AC, 2A 30V DC, 2A

Program Capacity: 31.2 KB

User Program Storage: EEPROM (10,000 times rewritable)

Terminal Torque: 0.22…0.25 Nm

Operating Temperature: 0…55 °C

Degree of Protection: IP20

Class: I DIV.2

Groups: A,B,C,D

Weight: 220 g
