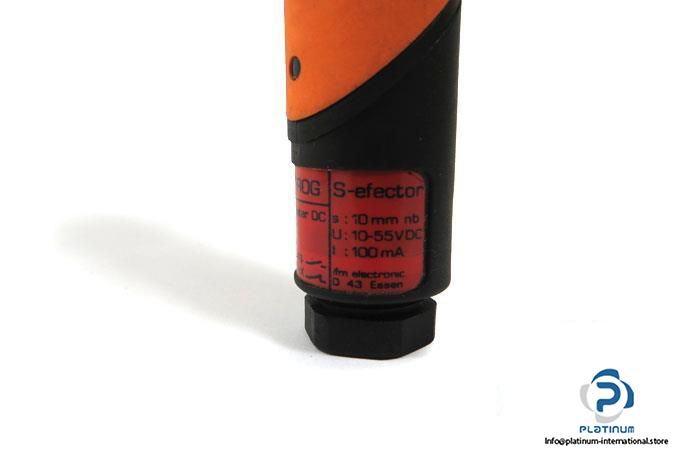

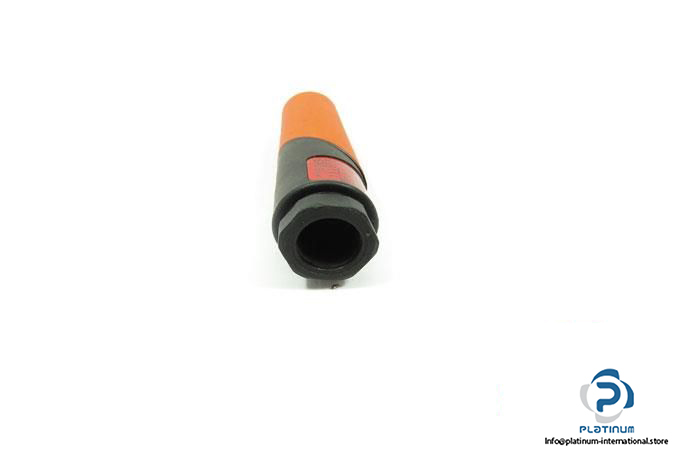

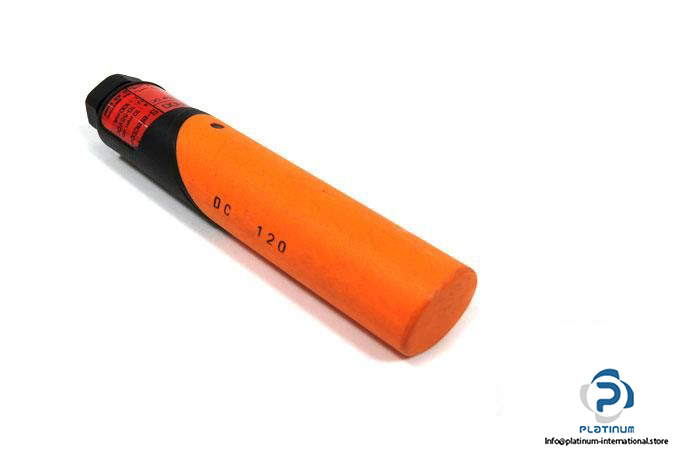

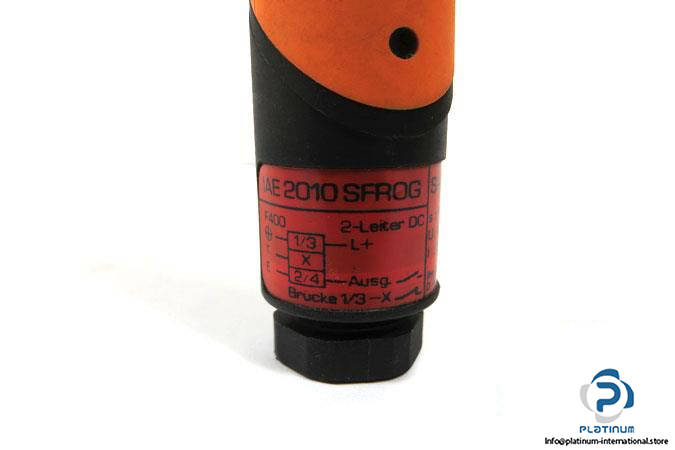

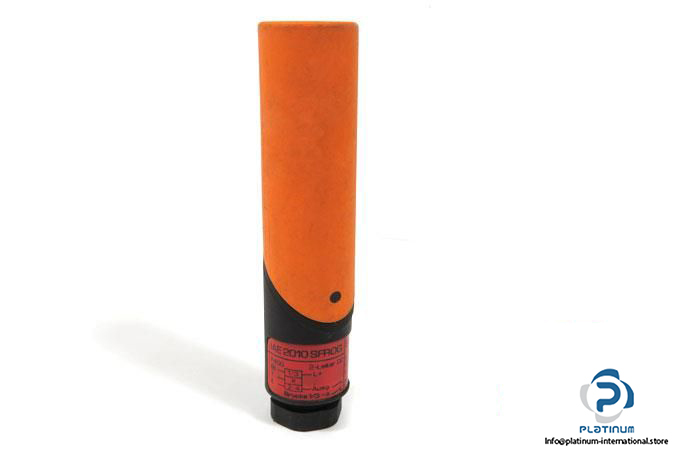

IFM IAE2010SFROG Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IA5038

MRN: IAE2010SFROG

Sensing Range: 10 mm

Real Sensing Range: 10 ± 10% mm

Operating Distance: 0 … 8.1 mm

Operating Voltage: 10 … 55 V DC

Switching Output Current: 100 mA DC

Switching Frequency: 70 Hz

Electrical Design: PNP

Output Function: Normally Open/Normally Closed

Connector Type: Terminal 2.5 mm²

Protection Class: II

Enclosure Tating: IP65

Housing: Tubular

Ambient Operating Temperature: -25 … 80°C

Diameter, Housing Length: 20, 92 mm

Material: PBT; LED Window: PC

Mounting: Non-Flush Mountable
