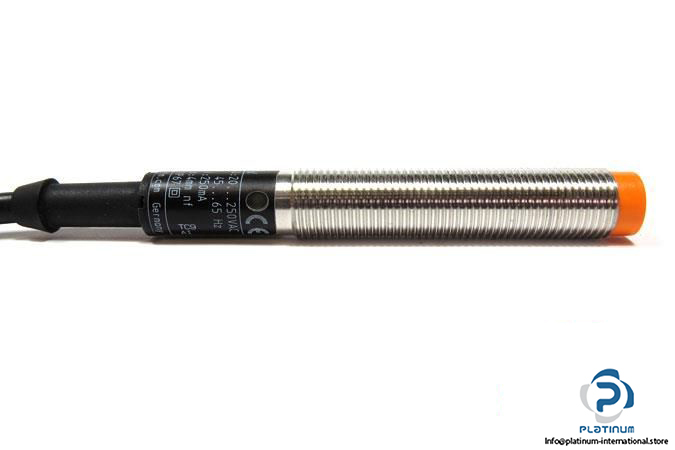

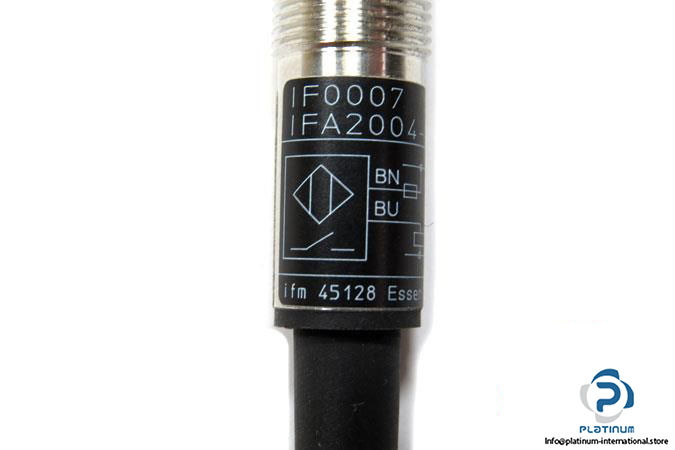

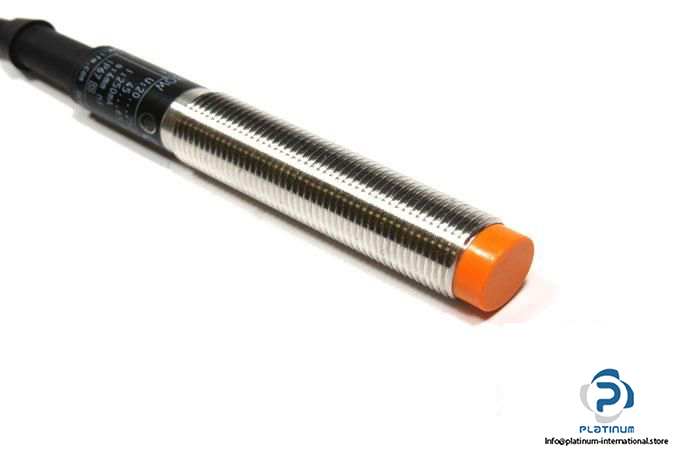

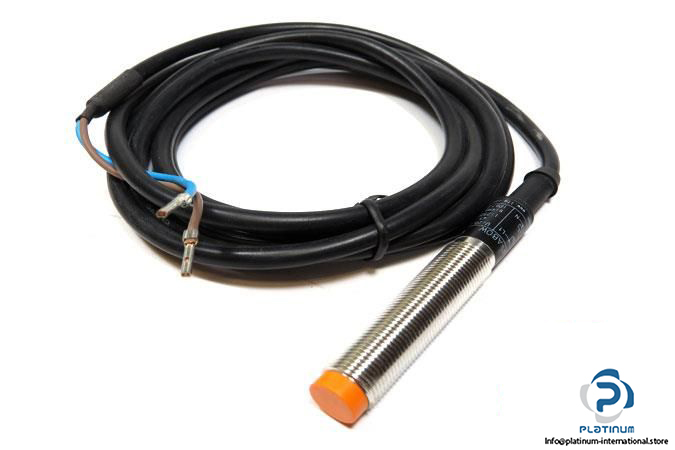

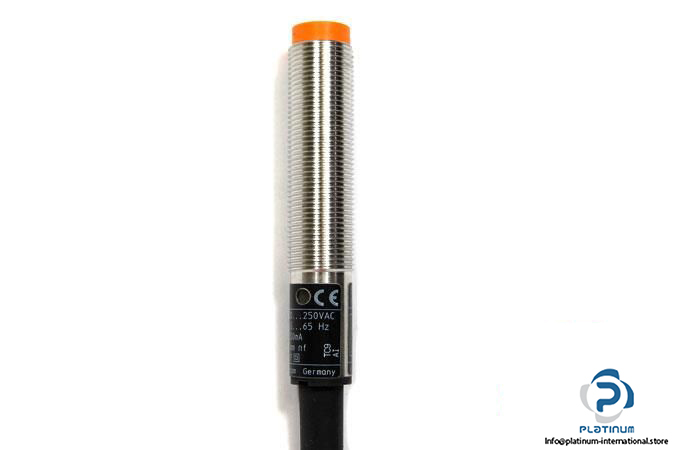

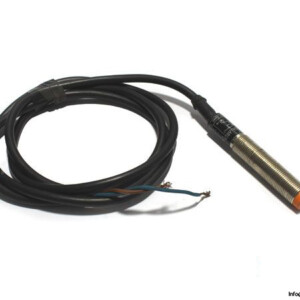

IFM IF0007 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IF0007

MRN: IFA2004-ABOW

Sensing Range: 4 mm

Real Sensing Range: 4 ± 10% mm

Operating Distance: 0 … 3.25 mm

Operating Voltage: 20 … 250 V AC, 47… 63 HZ

Switching Output Current: 200; 250 at 50 °C

Switching Frequency: 25 Hz AC

Output Function: Normally Open

Connector Type, Length: PVC Cable, 2 m

Protection Class: II

Enclosure Rating: IP67

Housing: Threaded Type

Ambient Operating Temperature: -25 … 80°C

Diameter, Housing Length: 12, 71 mm

Material: Brass White Bronze Coated; Sensing Face: PBT

Mounting: Non- Flush Mountable
