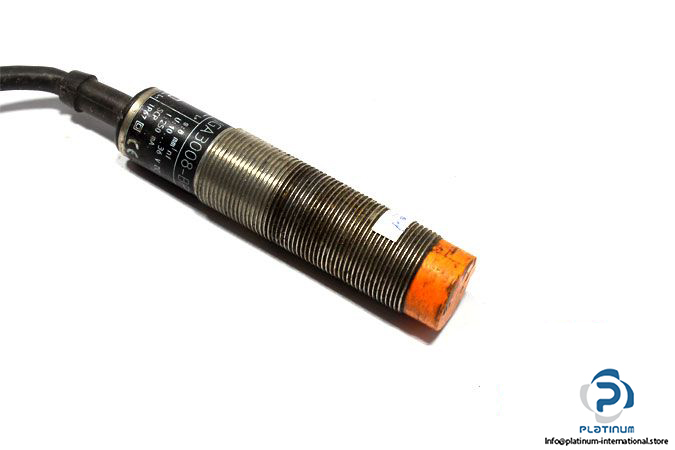

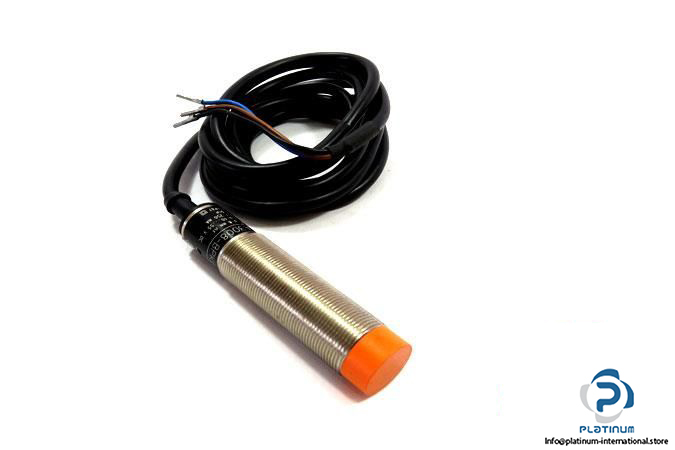

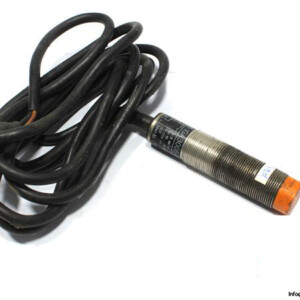

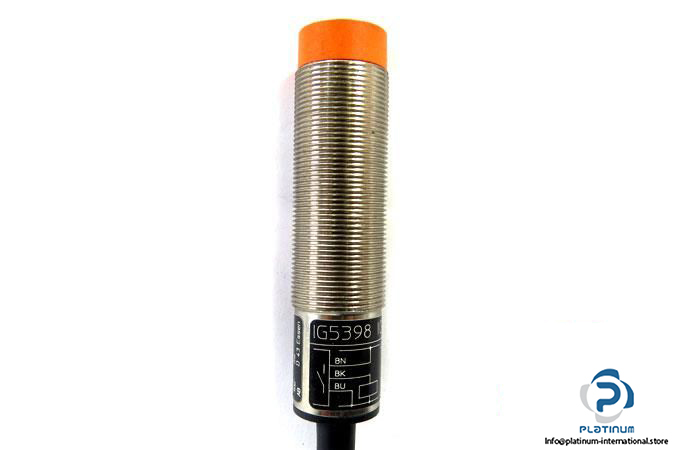

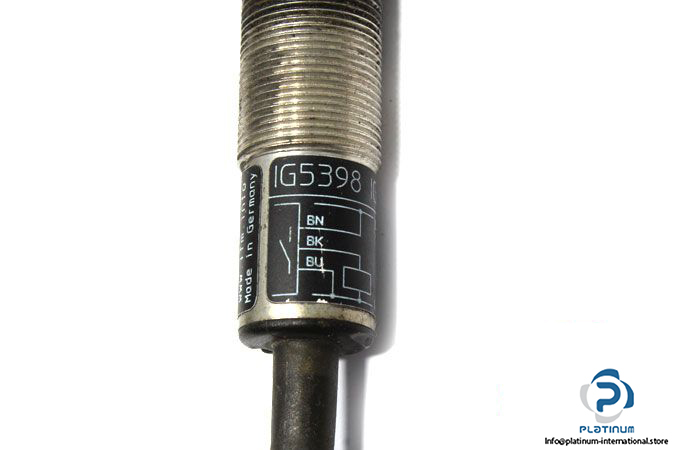

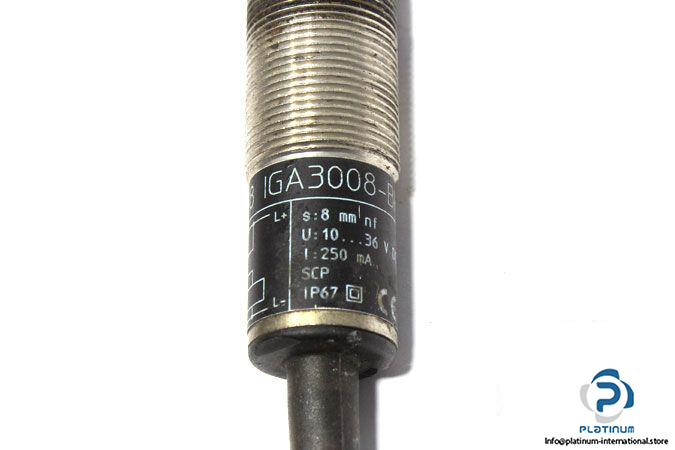

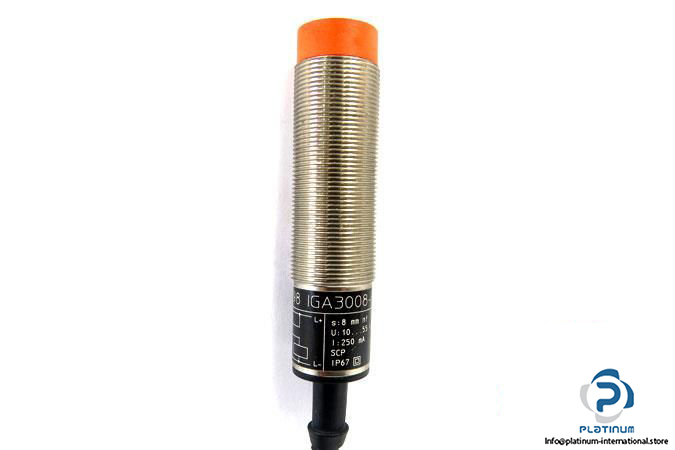

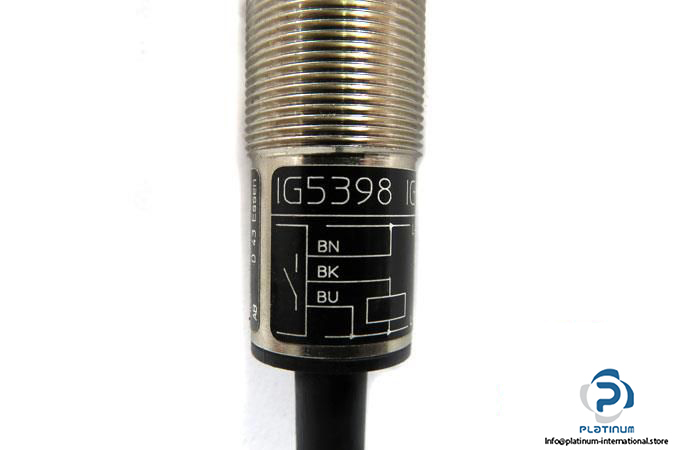

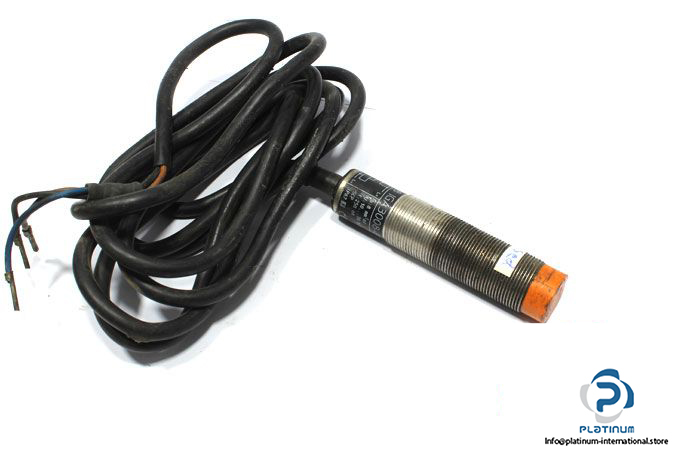

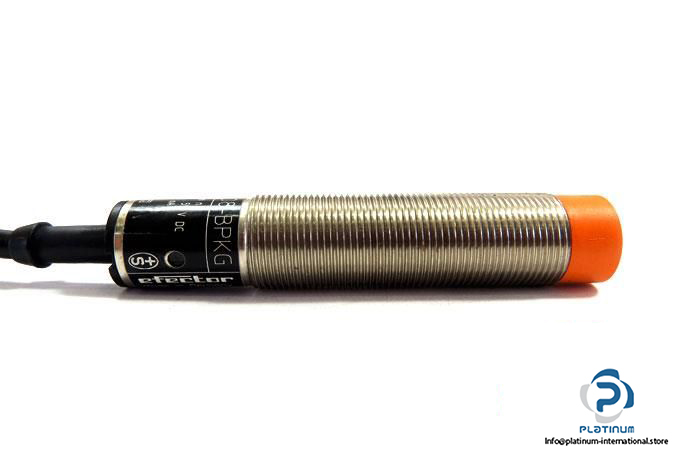

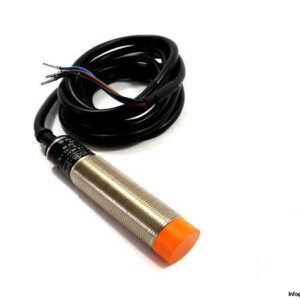

IFM IG5398 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IG5398

MRN: IGA3008-BPKG

Sensing Range: 8 mm

Real Sensing Range: 8 ± 10% mm

Operating Distance: 0 … 6.5 mm

Operating Voltage: 10 … 36 V DC

Voltage Drop max.: 2.5 V

Switching output current: 250 mA DC

Switching frequency: 300 Hz

Electrical Design: PNP

Output Function: Normally open

Connector type, length: PVC Cable, 2m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80 °C

Diameter, Housing length: 18 mm

Material: Brass white bronze coated; sensing face: PC

Mounting: Non-flush mountable

Weight: 159.9 g
