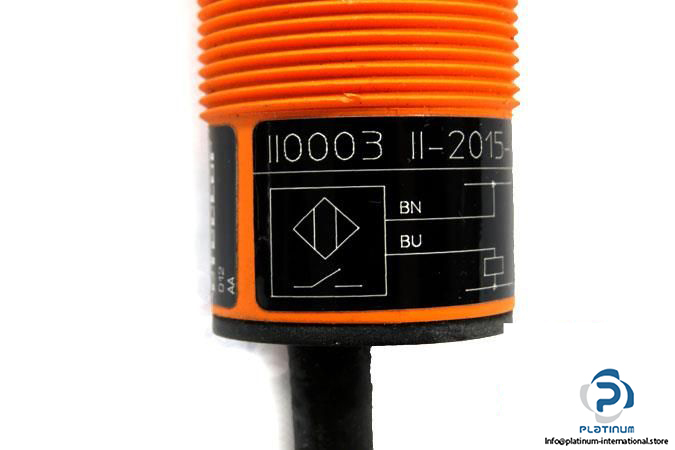

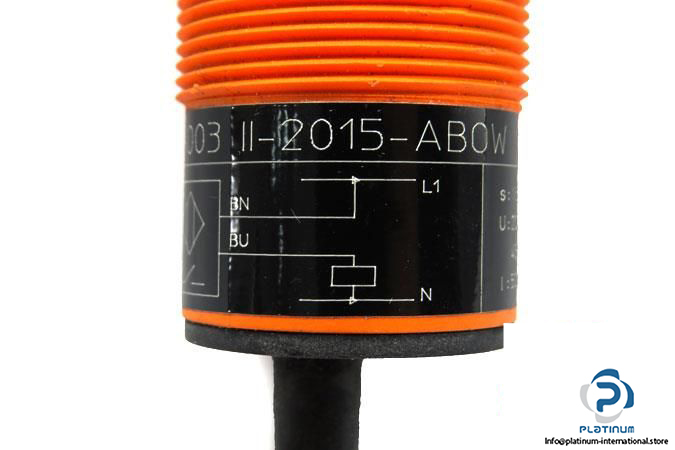

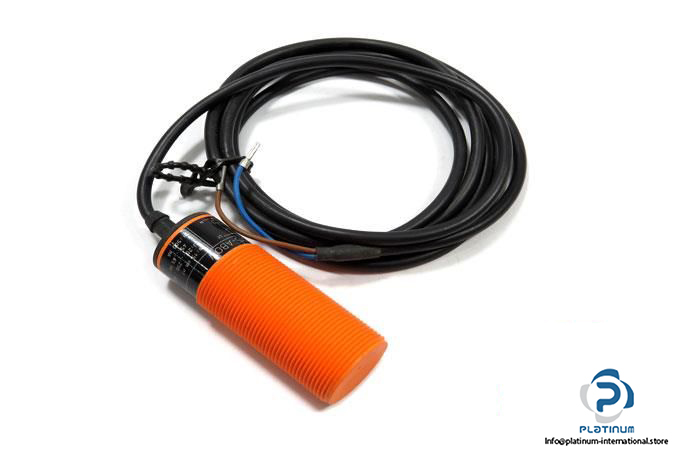

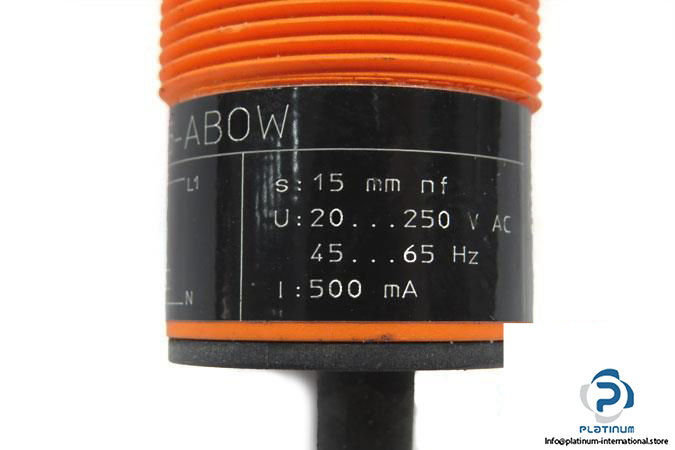

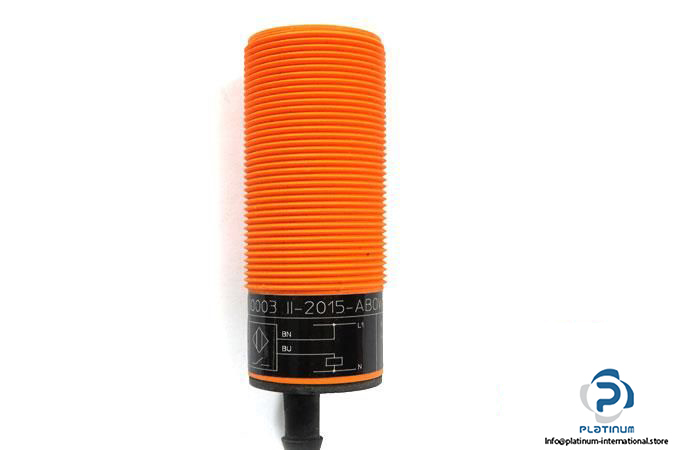

IFM II0003 II-2015-ABOW Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: II0003

MRN: II-2015-ABOW

Sensing Range: 15 mm

Real Sensing Range: 15 ± 10% mm

Operating Distance: 0 … 12.1 mm

Operating Voltage: 20 … 250 V AC, at 45 … 65 Hz

Switching output current: 500 mA AC

Switching frequency:  20 Hz

Output function: Normally open

Connector type, length: PVC Cable, 2 m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80°C

Diameter: 30 mm

Material: PBT

Mounting: Non-flush mountable

Condition: New
