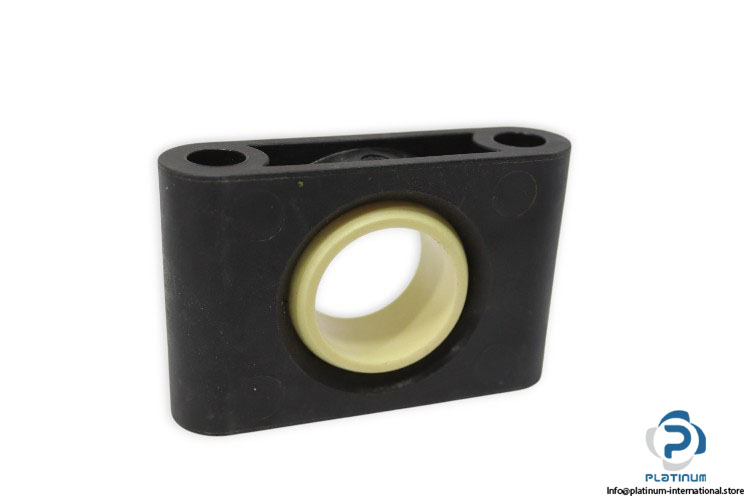

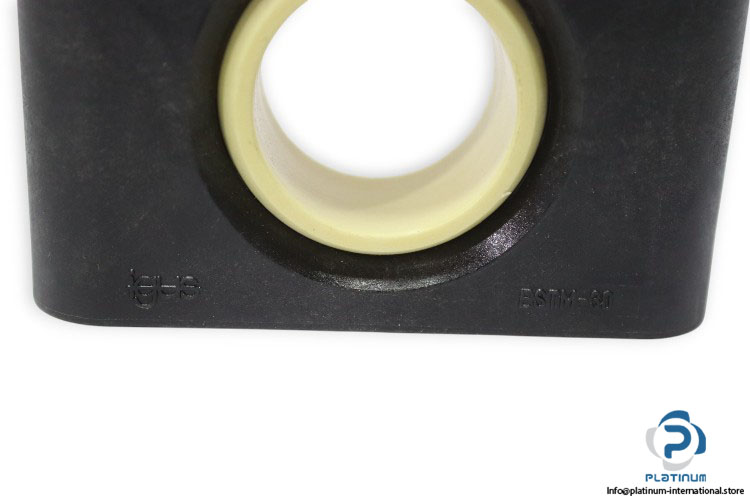

Igus ESTM-30 Pillow Block Bearing
Neu
Auf Lager4 EinheitenVersandbereit
Pillow Block Bearing Igus ESTM30 Lager mit 30 mm Wellendurchmesser, langlebigem igumid G Gehäuse und 20° Schwenkwinkel. Bietet hohe statische Tragfähigkeit und langfristige mechanische Stabilität.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Igus ESTM30 Pillow Block Bearing
The Igus ESTM30 is a high-performance pillow block bearing designed for precise alignment and long-lasting operation in mechanical and industrial systems.
Manufacturer: Igus
Type: Pillow Block Bearing
Model: ESTM30
| Shaft Diameter | 30 mm |
| Overall Length | 86 mm |
| Overall Height | 56 mm |
| Overall Width B | 22 mm |
| Max. Pivot Angle | 20° |
| Maximum Tightening Torque, Fastening | 10.5 Nm |
| Max. Radial Static Pressure Load, Short-Term | 16500 N |
| Max. Radial Static Pressure Load, Long-Term | 8250 N |
| Max. Static Radial Tensile Stress, Short-Term | 10000 N |
| Max. Static Radial Tensile Stress, Long-Term | 5000 N |
| Max. Axial Static Load, Short-Term | 2500 N |
| Max. Axial Static Load, Long-Term | 1250 N |
| Material Housing | igumid G |

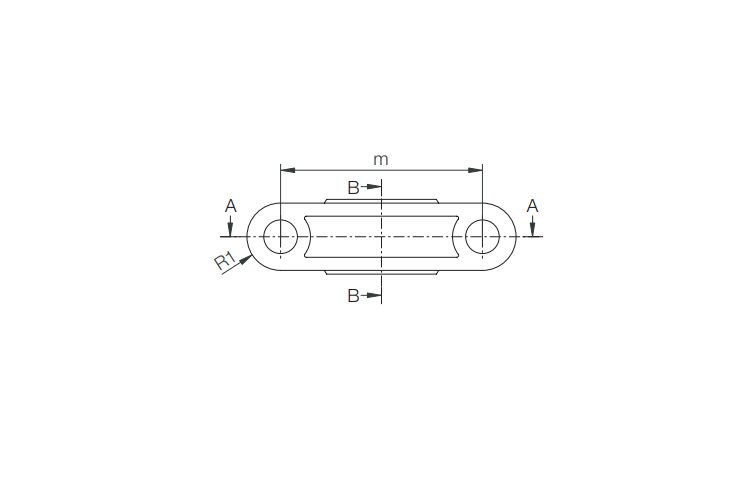

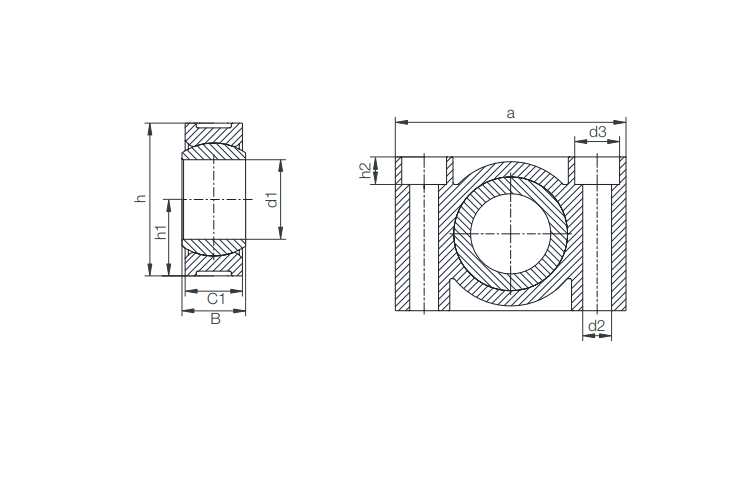

| R1 | 11 mm |
| C1 | 22 mm |
| h1 | 28 mm |
| h2 | 10.6 mm |
| m | 64 mm |
