IMG IMG40S-8-ABN-PT-07-NT Incremental Encoder
Neu
Auf Lager4 EinheitenVersandbereit
Hochpräziser inkrementeller Encoder mit massivem Wellen, IP64-Schutz und 8 Auflösung/Umdrehung. Ideal für industrielle Automatisierung, Robotik und Bewegungssteuerungssysteme.
AutomationCNCConnectorControlDriverEncoderFeedbackHTLIMGIncrementalIndustrialIP64LineM16mAMotionPositionPrecisionProtectedSensingshaftSolid
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

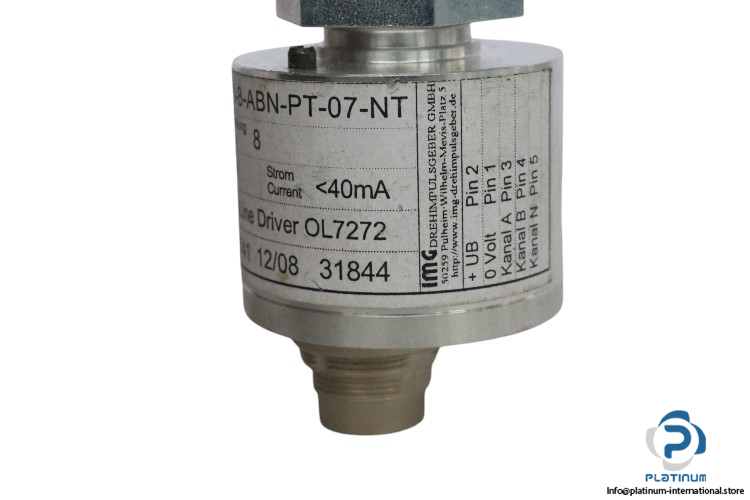

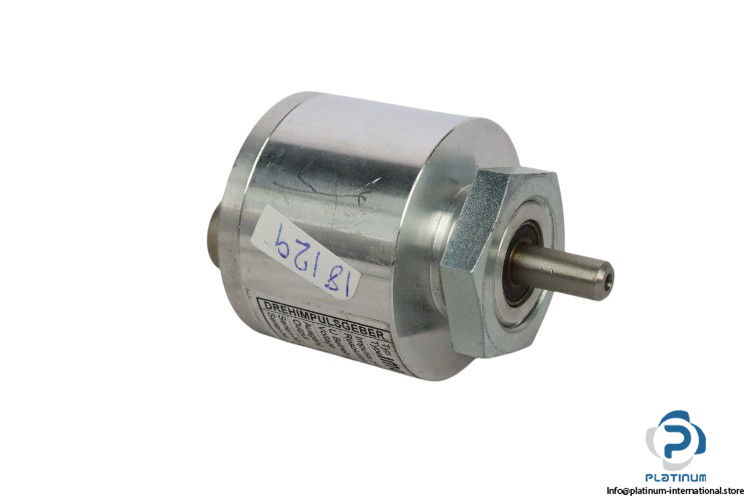

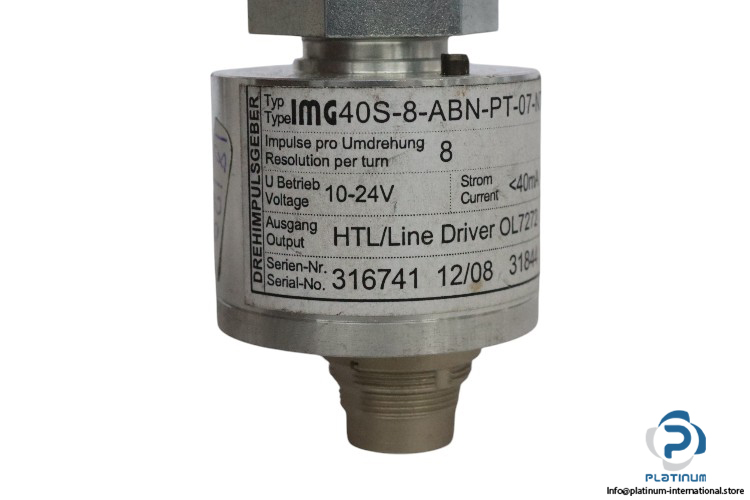

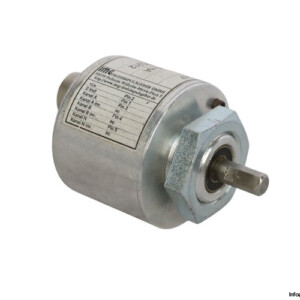

IMG IMG40S8ABNPT07NT Incremental Encoder
The IMG40S8ABNPT07NT is a high-precision incremental encoder designed for industrial applications requiring accurate position sensing and motion control. With a solid shaft and durable construction, it ensures reliable operation in demanding environments.
Key Details:
Manufacturer: IMG
Type: Incremental Encoder
Model: IMG40S8ABNPT07NT
Materials:
Designed for **industrial automation**, this incremental encoder ensures **precise motion tracking**, making it ideal for use in **robotics, conveyor systems, and CNC machinery**.
| Shaft Type | Solid Shaft |
| Operating Voltage | 10 to 24 V DC |
| Input Current | 40 mA |
| Output Load | 80 mA |
| Shaft Diameter | 6 mm |
| Resolution | 8 Resolution/turn |
| Protection Degree | IP64 |
| Output Circuit | HTL/Line Driver |
| Output Signals | A, B, N |

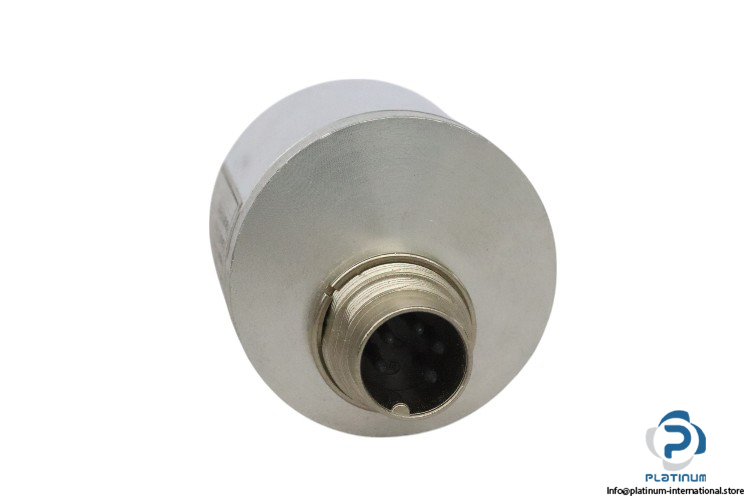

| Connection | Connector M16, 5-Pins |
| Flange | 40 mm |
| Housing | Aluminum Solid |
| Shaft | Stainless Steel |
| Operating Temperature | 0 to +80 °C |
