Vogel Sp/Sfe 30/1 IVO Impulse Generator

Name: VOGEL SP/SFE 30/1 IVO IMPULSE GENERATOR
SKU: 1000728
Availability: LimitedAvailability

impulsgeber-sp_sfe-30_1-pressure-switch-2

impulsgeber-sp_sfe-30_1-pressure-switch-1

Gebraucht

Auf Lager1 EinheitVersandbereit

Robuster Impulsgenerator von Vogel für Schmiersysteme mit präziser 0,34 cm³/Impuls-Ausgabe, großem Durchflussbereich und IP65-Schutz, geeignet für Öl- und Fettanwendungen.

Hersteller

VOGEL

SKU

1000728

Kategorie

Other Mechanical Equipment

Zustand

Gebraucht

0.34 100 30/1 bar cm³ Device Generator grease-compatible Impulse Industrial IP65 IVO lubrication Pulse Sensor Signal Sp/Sfe System Unit Vogel

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

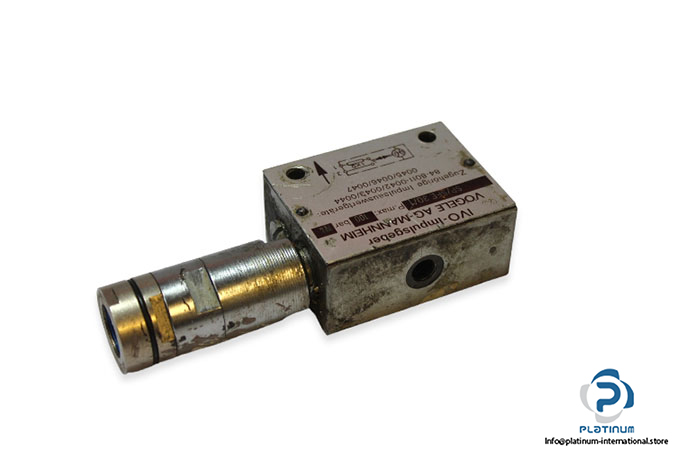

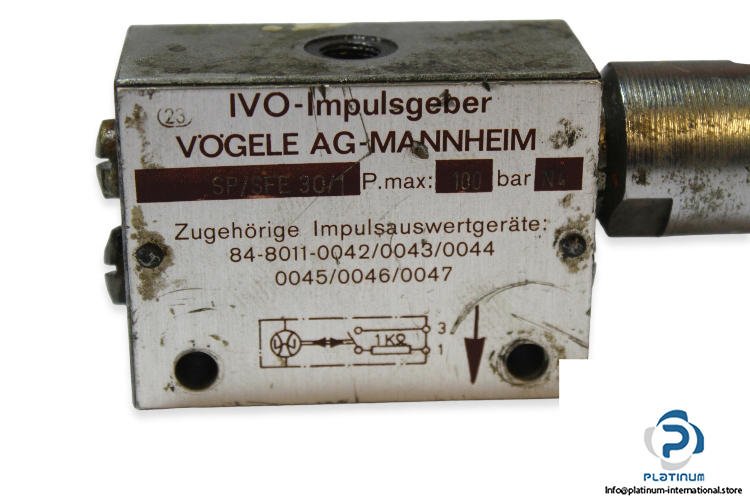

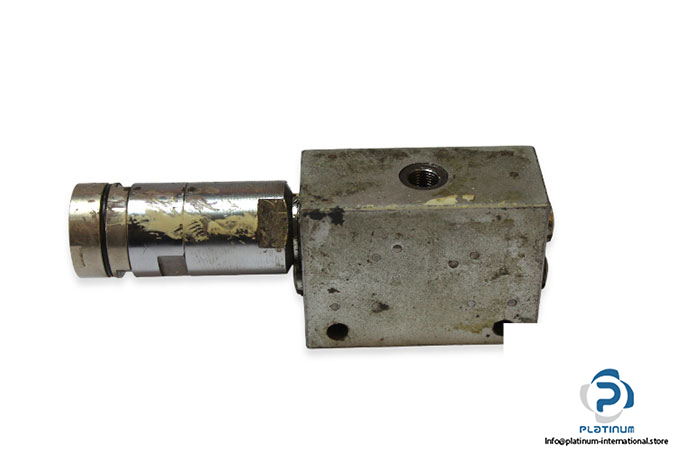

VOGEL SP/SFE 30/1 IVO IMPULSE GENERATOR

The Vogel SP/SFE 30/1 IVO Impulse Generator is engineered for integration into progressive or multi-line lubrication systems. Designed for high-pressure environments, this unit ensures reliable signal generation for pulse evaluation, suitable for both oil and grease lubrication.

Manufacturer: Vogel

Type: IVO Impulse Generator

Model: SP/SFE 30/1

Associated Pulse Evaluation Devices: 84-8011-0042/0043/0044, 0045/0046/0047

For Use	Progressive or multi-line lubrication systems
Volume / Pulse	0.34 cm³
Flow Rate	0.1 to 50 cm³/min
Operating Pressure	100 bar
Operating Temperature	-15 to +70 °C
Cable Diameter	12 mm
Protection Class	IP65
Connection Cross-Section	1.5 mm²
Switching Power	10 W for AC/DC
Switching Voltage	0 to 30 V
Dimensions	65 Ã— 170 Ã— 35 mm
Lubricant	Oil (min. viscosity 12 mm²/s), Grease (NLGI 1)
