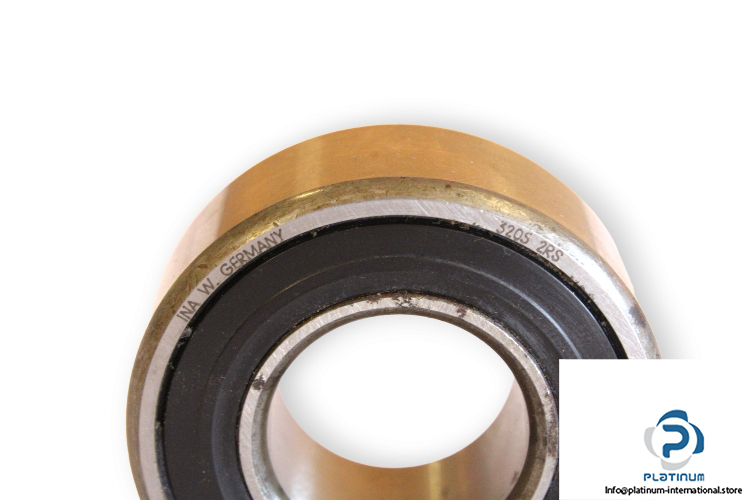

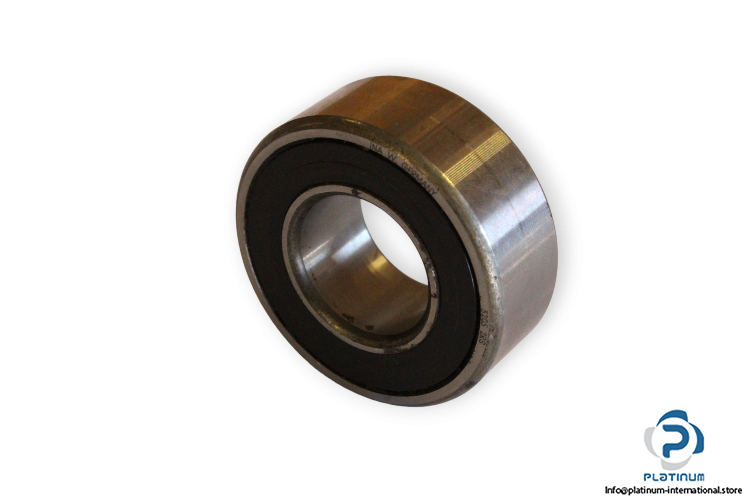

Name: INA 3205 2RS DOUBLE ROW ANGULAR CONTACT BALL BEARING
SKU: 1005804
Availability: LimitedAvailability

Manufacturer: Schaeffler INA
Type: Double Row Angular Contact Ball Bearing
Model: 3205.2RS

Dimensions
Bore Diameter d: 25 mm
Outer diameter D: 52 mm
Width B: 20.6 mm
Contact angle: 30 °
Basic load ratings:
Dynamic C_r: 22000 N
Static C_0r: 15200 N
Fatigue load limit C_ur: 1050 N
Sealing: 2RS, Contact seal on both sides

Spezifikation	Wert
Weight	0,18 kg
Condition	Used
Type of Product	Double Row Angular Contact Ball Bearing
Shelf No.	230821

Preis	Auf Anfrage
Lager	1 Auf Lager
Kategorie	Angular Contact
Zustand	Gebraucht
SKU	1005804

Weight	0,18 kg
Condition	Used
Type of Product	Double Row Angular Contact Ball Bearing
Shelf No.	230821

INA 3205 2RS Double ROW Angular Contact Ball Bearing
