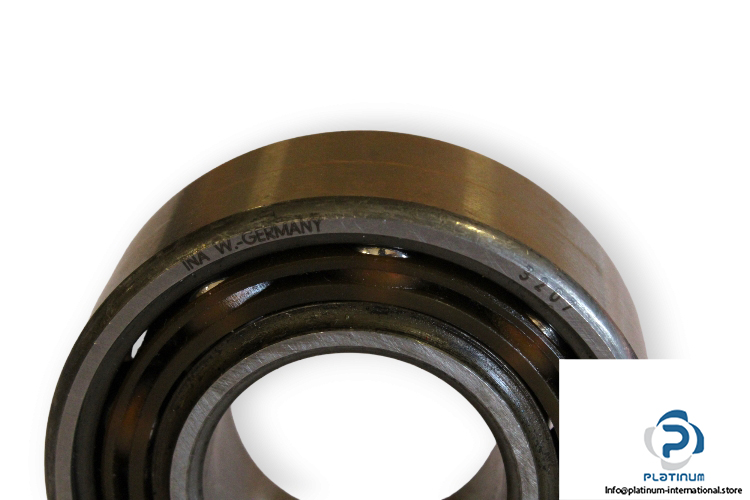

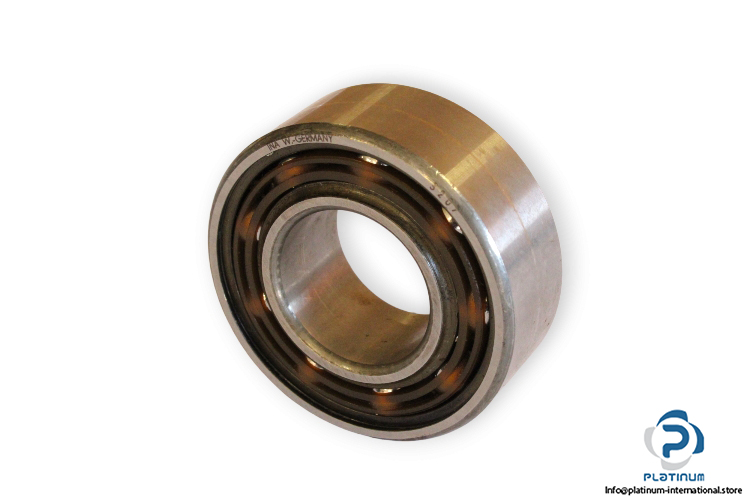

INA 3207 Double ROW Angular Contact Ball Bearing

Manufacturer: Schaeffler INA
Type: Double Row Angular Contact Ball Bearing
Model: 3207

Dimensions
Bore Diameter d: 35 mm
Outer diameter D: 72 mm
Width B: 27 mm
Contact angle: 30 °
Basic load ratings:
Dynamic C_r: 41000 N
Static C_0r: 30000 N
Fatigue load limit C_ur: 2090 N
Limiting speed: 10100 rpm
Reference speed: 9900 rpm
