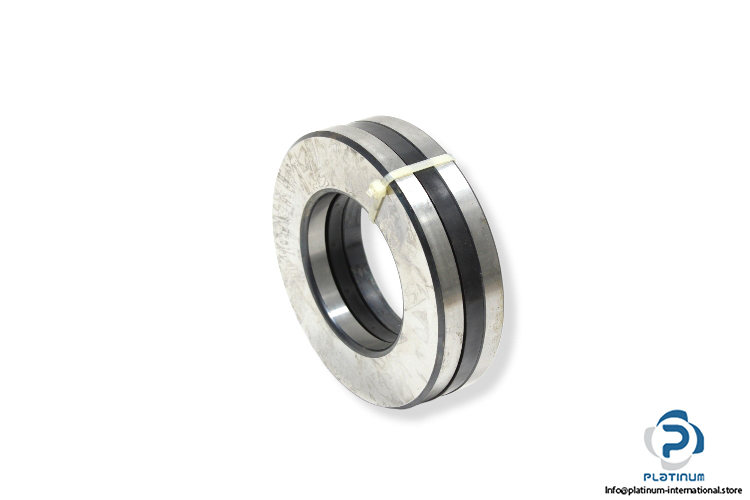

INA 89314 TN Cylindrical Roller Thrust Bearing

Manufacturer: INA

Type: Cylindrical Roller Thrust Bearing

Model: 89314TN

Replaces: 89314-TV

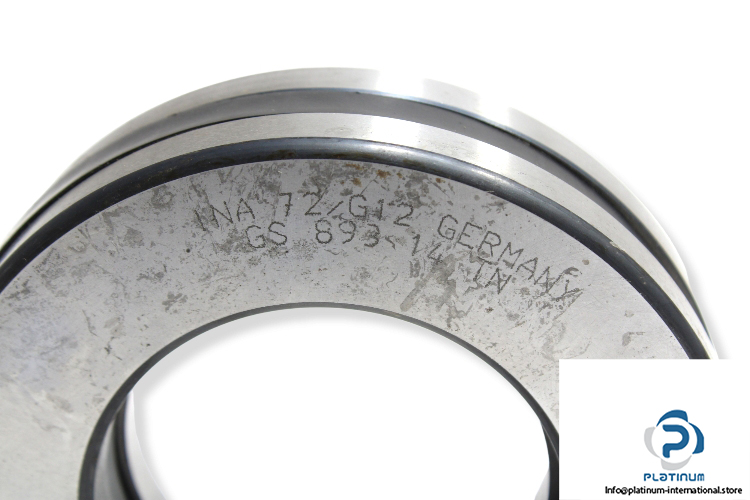

Housing washer: GS 893 14 TN

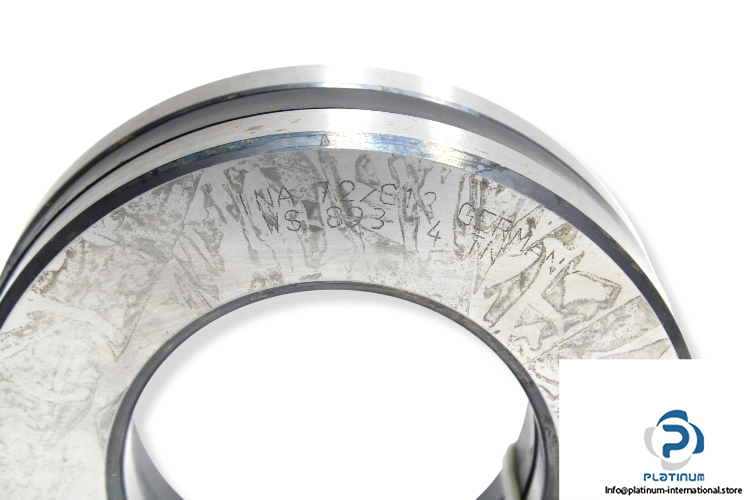

Shaft washer: WS 893 14 TN

Cage: K89314-TV

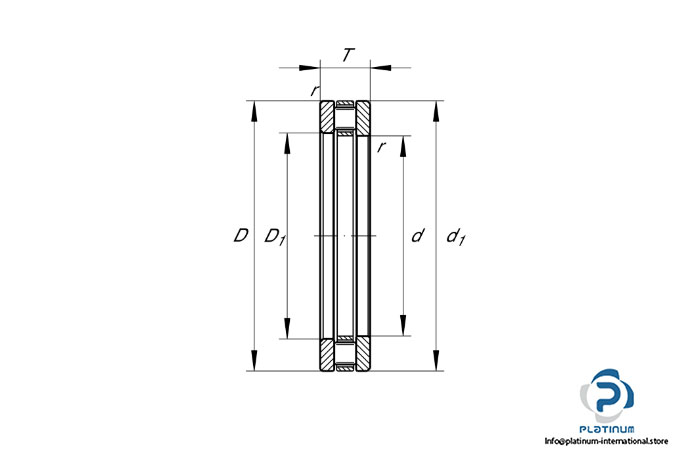

Dimensions:

Bore diameter d: 70 mm

Outer diameter D: 125 mm

Height T: 34 mm

Bore diameter housing washer D₁: 72 mm

Basic load ratings, axial:

Dynamic C_a: 239000 N

Static C_oa: 830000 N

Fatigue load limit: 76000 N

Limiting speed: 2950 rpm

Reference speed: 1200 rpm

Cage material: Plastic Cage (Polyamid 66 Cage)
