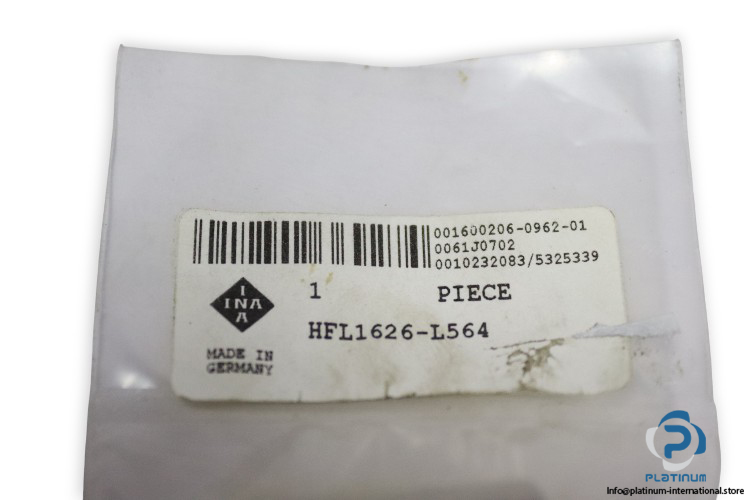

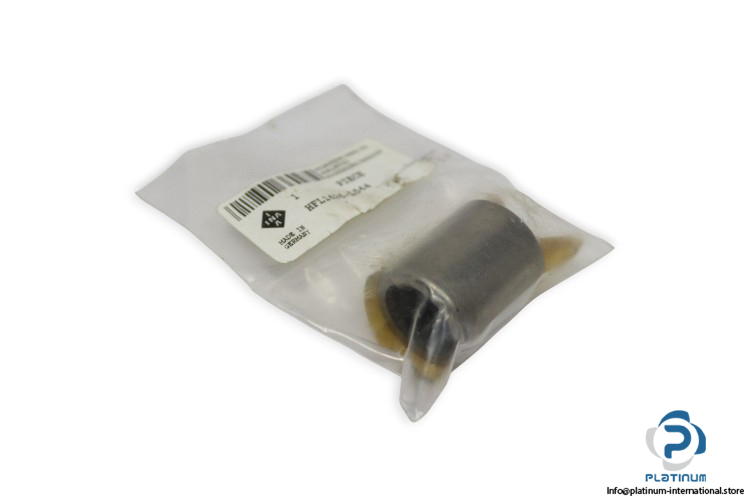

INA HFL1626-L564 Drawn CUP Roller Clutch
Neu
Auf Lager1 EinheitVersandbereit
Zugbecher-Röllchenkupplung INA HFL1626-L564 Zugbecher-Röllchenkupplung mit zulässigem Drehmoment von 20,5 Nm, Schmierfett-Schmierung und hoher radialer Tragfähigkeit für industrielle Anwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
INA HFL1626-L564 Drawn Cup Roller Clutch
The INA HFL1626-L564 is a precision drawn cup roller clutch designed to transmit torque in one direction while allowing free rotation in the opposite direction. It is engineered for compact installations requiring high load capacity, reliable engagement, and consistent performance in industrial applications.
Manufacturer: INA / Schaeffler
Type: Drawn Cup Roller Clutch
Model: HFL1626-L564
| Diameter Under Rollers (Fw) | 16 mm |
| Outer Diameter (D) | 22 mm |
| Width Outer Ring (C) | 26 mm |
| Minimum Chamfer Dimension (rmin) | 0.3 mm |
| Permissible Torque | 20.5 Nm |
| Basic Dynamic Load Rating, Radial | 7400 N |
| Basic Static Load Rating, Radial | 9000 N |
| Fatigue Load Limit, Radial | 1270 N |
| Limiting Speed for Rotating Shaft | 8500 rpm |
| Limiting Speed for Rotating Outer Ring | 7500 rpm |
| Lubricant | L564, Grease |
| Operating Temperature Range | -10 to 70 °C |
