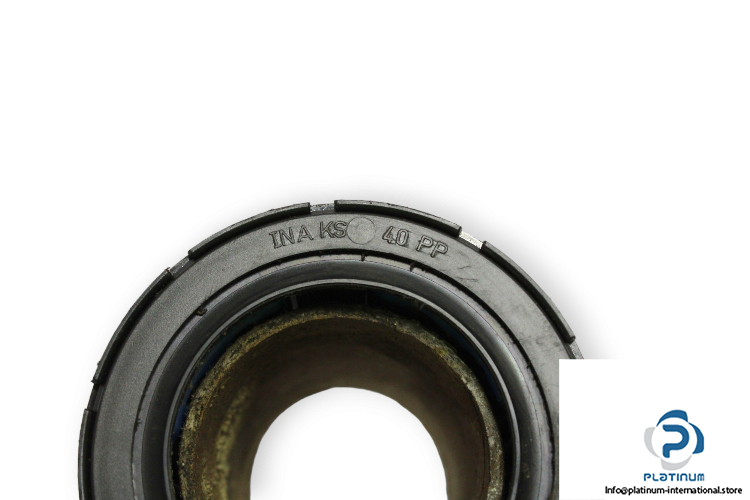

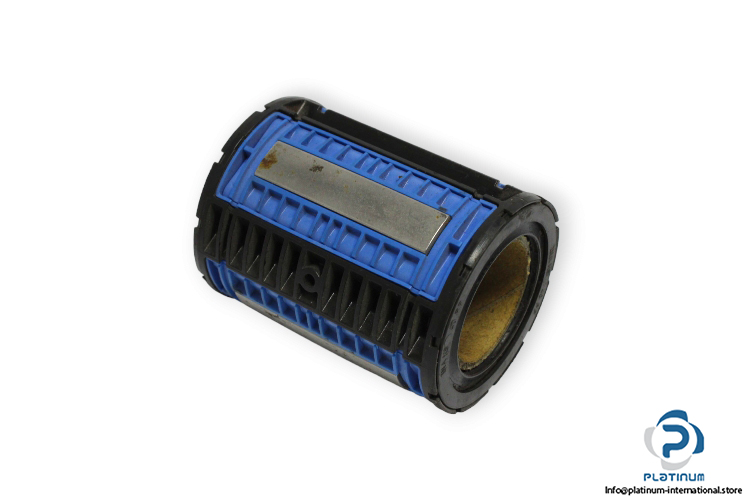

Name: INA KS 40 PP CLOSED LINEAR BALL BEARING
SKU: 1004860
Availability: LimitedAvailability

Manufacturer: INA
Type: Closed Linear Ball Bearing
Model: KS40-PP

Size code: 40
Bore diameter of ball complement F_w: 40 mm
Outside diameter D: 62 mm
length L: 80 mm
Design type: Closed Type
Rows of Balls: 8
load capacity dyn. C_min: 8800 N
load capacity stat. C_{0 min}: 7200 N
load capacity dyn. C_max: 10200 N
load capacity stat. C_{0 max}: 9600 N
Seal: PP, sealed

Spezifikation	Wert
Weight	0,36 kg
Dimensions	40 × 62 × 80 cm
Condition	New
Type of Product	Closed Linear Ball Bearing
Shelf No.	240521

Preis	Auf Anfrage
Lager	4 Auf Lager
Kategorie	Shaft Guiding & Linear Ball Bushings
Zustand	Neu
SKU	1004860

Weight	0,36 kg
Dimensions	40 × 62 × 80 cm
Condition	New
Type of Product	Closed Linear Ball Bearing
Shelf No.	240521

INA KS 40 PP Closed Linear Ball Bearing
