INA KWE35 G4 V1 Linear Guideway Block

Name: INA KWE35 G4 V1 LINEAR GUIDEWAY BLOCK
SKU: 1057385
Price: 122.22 USD
Availability: InStock

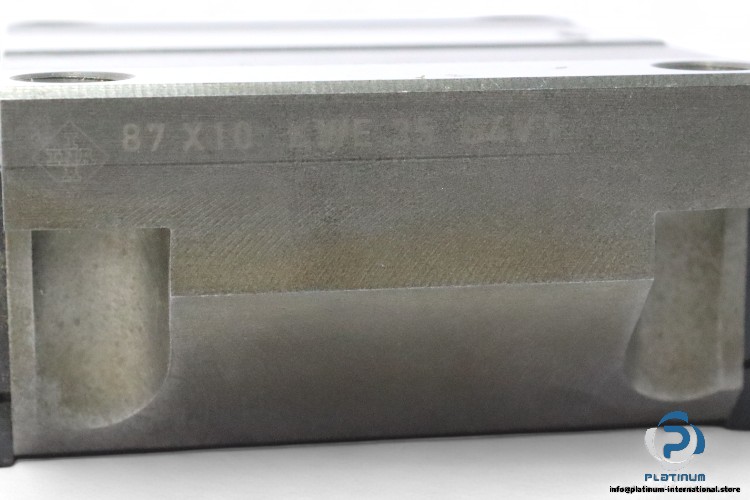

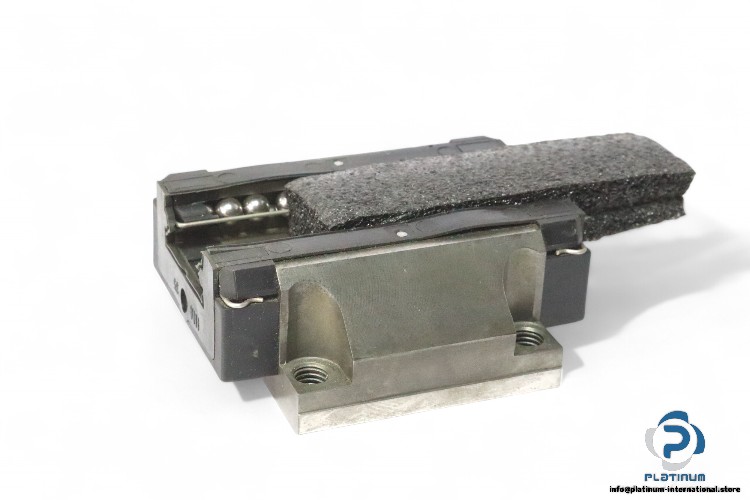

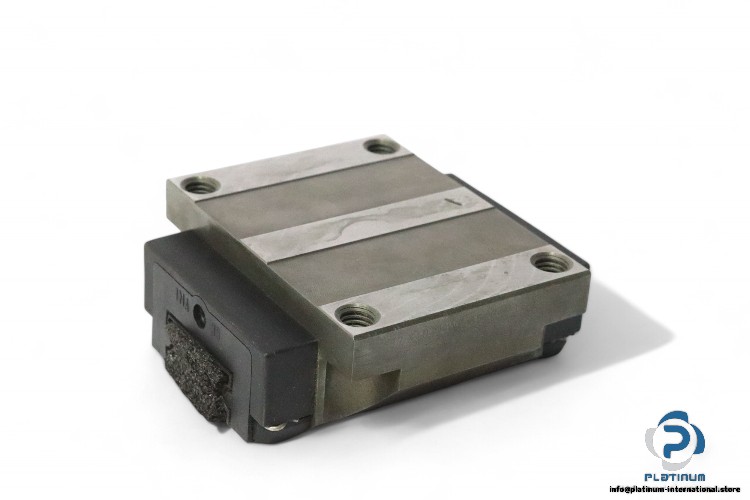

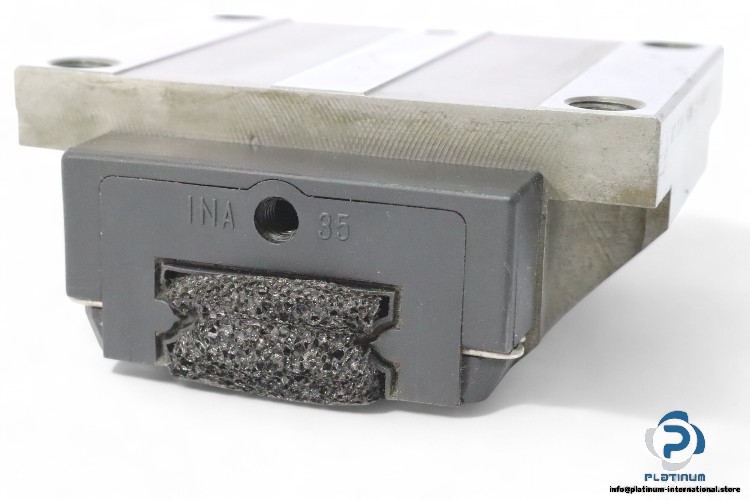

ina-KWE35-G4-V1-linear-guideway-block-(used)

ina-KWE35-G4-V1-linear-guideway-block-(used)-1

ina-KWE35-G4-V1-linear-guideway-block-(used)-2

ina-KWE35-G4-V1-linear-guideway-block-(used)-3

ina-KWE35-G4-V1-linear-guideway-block-(used)-4

Gebraucht

Auf Lager2 EinheitenVersandbereit

122,22$

Typ: Linearführungsblock

Hersteller

INA?

SKU

1057385

Kategorie

Linear Motion

Zustand

Gebraucht

35 Ball bearing Block carriages Guideway Ina Linear mm Motion Recirculating Schaeffler

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: INA
Type: LINEAR GUIDEWAY BLOCK
Model: KWE35-G4-V1

Size: 35 mm

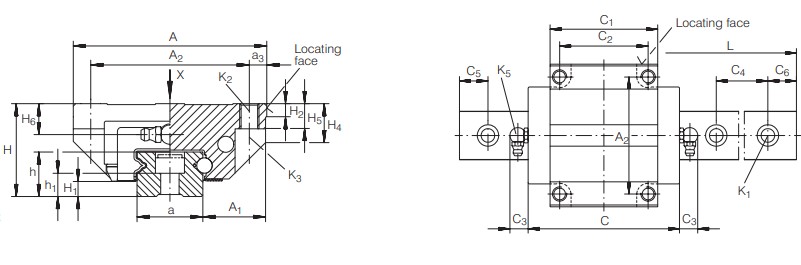

Dimensions:
Height system H: 48 mm
Width carriage A: 100 mm
Overall length carriage C: 106.4 mm
Block height(H-H1): 40 mm
A₂: 82 mm
C₂: 62 mm
Preload: V1
Accuracy Class: G4
Basic Load Ratings:
Dynamic C: 28 kN
Static C₀: 37 kN
Static Moment Rating About:
X axis M_0x: 658 Nm
Y axis M_0Y: 450 Nm
Z axis M_0Z: 450 Nm
