INA NATR20-X-PP-A Yoke Type Track Roller
Gabel Typ Laufrollen INA NATR20-X-PP-A Laufrolle mit 20 mm Bohrung, PP-Dreistufenabdichtung und hoher radialer Tragfähigkeit für Nockengetriebe und Linearbewegungssysteme. Ideal für schwere Führungsbahnen und Förderanwendungen.
INA NATR20-X-PP-A Yoke Type Track Roller
The INA / Schaeffler NATR20-X-PP-A is a precision-engineered yoke type track roller designed for heavy radial loads and reliable guidance in cam drives, linear motion systems, and industrial track applications.
Manufacturer: INA / Schaeffler
Type: Yoke Type Track Roller
Model: NATR20-X-PP-A
Recommended for cam followers, guide rails, conveyor tracks, and heavy-duty linear motion systems requiring high load capacity and durable sealing.
Please contact us via Ask for assistance with any inquiries.

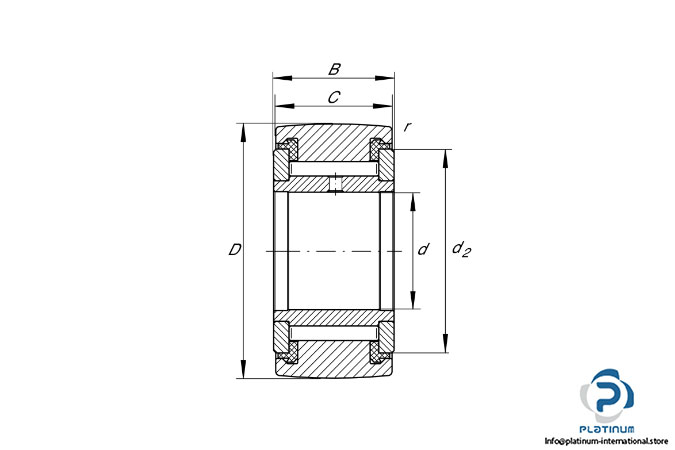

| Bore Diameter | 20 mm |
| Outside Diameter | 47 mm |
| Width, Inner Ring | 25 mm |
| Width, Outer Ring | 24 mm |
| Minimum Chamfer Dimension | 1 mm |
| Sealing | PP, Three-stage sealing by plastic axial plain washer on both sides |
| Basic Dynamic Load Rating, Radial | 15,400 N |
| Basic Static Load Rating, Radial | 26,000 N |
| Fatigue Load Limit, Radial | 3,450 N |
| Speed on Permanent Grease Lubrication | 2,400 1/min |
| Permissible Static Load, Radial | 26,000 N |
| Permissible Dynamic Load Outer Ring, Radial | 26,000 N |
