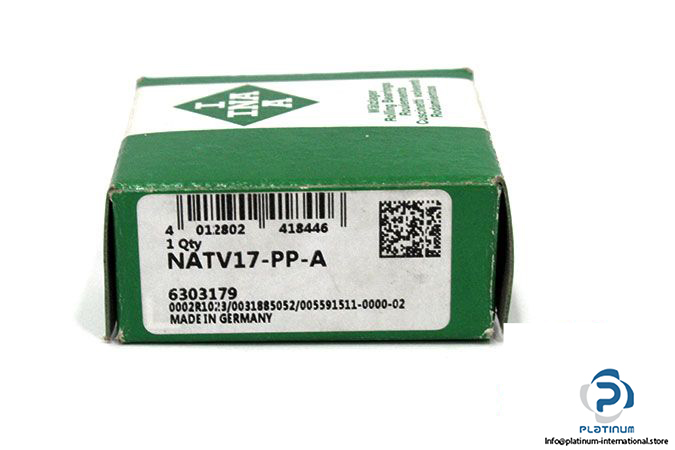

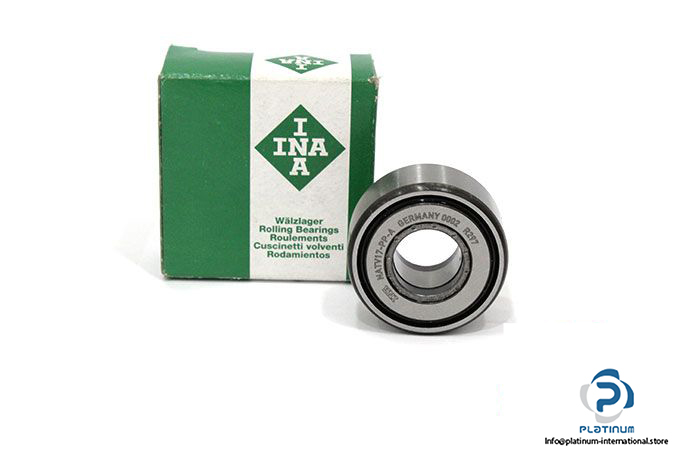

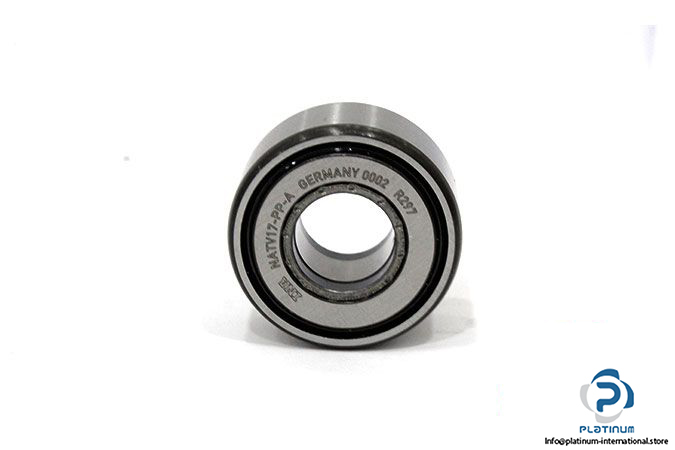

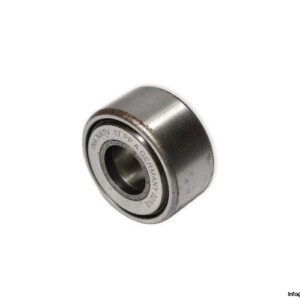

INA NATV17-PP-A Yoke Type Track Roller

Manufacturer: Schaeffler INA ‎

Type: yoke type track roller

Model: NATV17-PP-A ‎

Bore Diameter: 17 mm

Outer Diameter: 40 mm

Width: 21 mm

Basic load ratings:

Dynamic C_r: 14.7 kN

Static C_0r: 27 kN

Speed on permanent grease lubrication: 1400 rpm

Permissible static load, radial: 27000 N

Permissible dynamic load outer ring, radial: 24,900 N

Sealing: Contact seals on both sides

Outer Ring profile: spherical outer diameter (Standard)

Weight: 0.14 kg
