INA Natv 17 PP A Yoke Type Track Roller

Name: INA NATV 17 PP A YOKE TYPE TRACK ROLLER
SKU: 1030431
Availability: LimitedAvailability

ina-NATV-17-PP-A-yoke-type-track-roller-(used)

ina-NATV-17-PP-A-yoke-type-track-roller-(used)-1

ina-NATV8-PP-A-yoke-type-track-roller-(new)-2

Gebraucht

Auf Lager2 EinheitenVersandbereit

Hersteller: INA Typ: Gabeltyp Spurrollen Modell: NATV17 PP A

Hersteller

INA?

SKU

1030431

Kategorie

Support Rollers

Zustand

Gebraucht

17 bearing bearings Ina mm Natv Rollers rolling Support track Yoke-type

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: INA
Type: Yoke Type Track Rollers
Model: NATV17 PP A

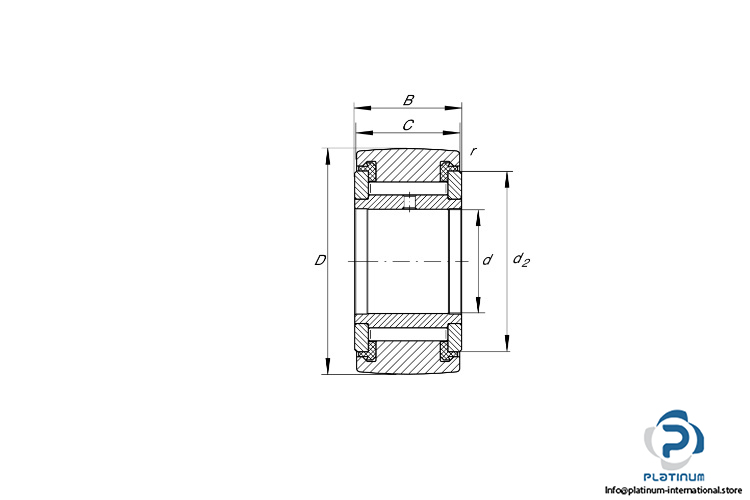

Dimensions
Bore Diameter d: 17 mm
Outer Diameter D: 40 mm
Width of the bearing B: 21 mm
Width, outer ring C: 20 mm
Basic Load Ratings:
Dynamic C_r: 14700 N
Static C_0r: 27000 N
Fatigue load limit, radial: 3550 N
Speed on permanent grease lubrication: 1400 rpm
Permissible static load, radial: 27000 N
Permissible dynamic load outer ring, radial: 24900 N
Sealing: PP, Three-stage sealing by plastic axial plain washer on both sides
