INA Nutr 45100 Yoke Type Track Roller
Gebraucht
Auf Lager1 EinheitVersandbereit
YOKE TYPE TRACK ROLLER INA NUTR 45100 Gabeltyp-Trackroller mit 45 mm Bohrung, 100 mm Außendurchmesser, Labyrinthdichtungen und hohen Tragfähigkeiten für anspruchsvolle Bewegungsanwendungen.
1004545100bearingboreCamdiameterFollowerHighInalabyrinthLoadmmMotionNutrOuterPrecisionRollerSealedtrackTypeYoke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

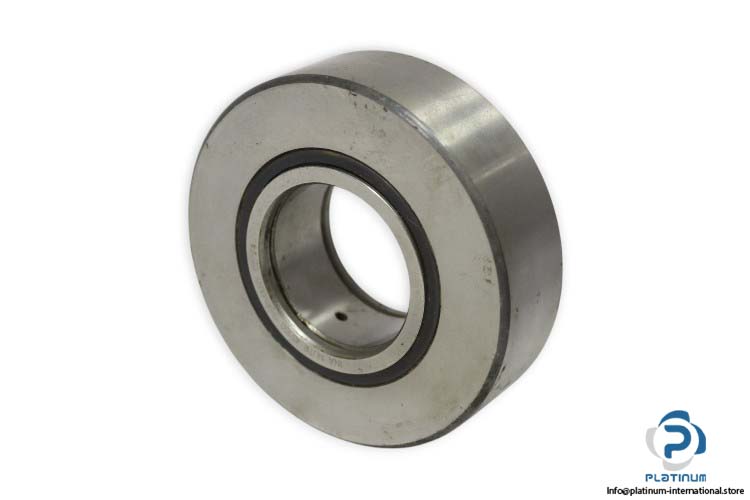

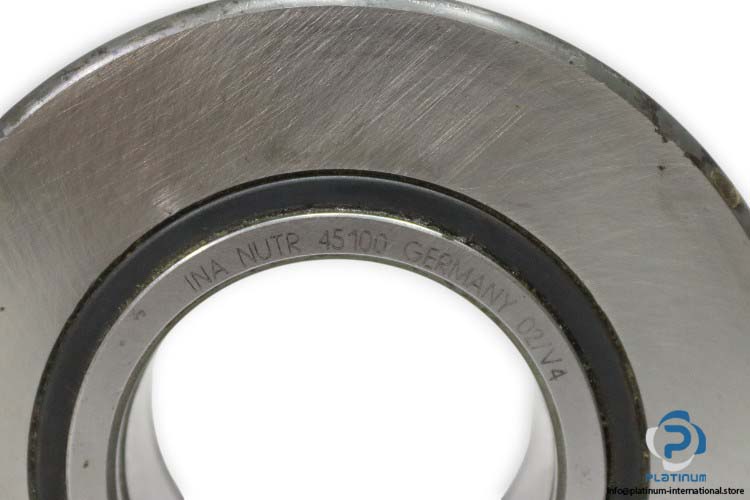

INA NUTR 45100 YOKE TYPE TRACK ROLLER
The INA NUTR 45100 Yoke Type Track Roller is designed for high-load applications requiring precise motion and durability. Featuring labyrinth seals on both sides and robust construction, it ensures reliable operation in demanding environments.
Manufacturer: INA
Type: Yoke Type Track Roller
Model: NUTR 45100
| Bore Diameter (d) | 45 mm |
| Outer Diameter (D) | 100 mm |
| Width (B) | 32 mm |
| Basic Dynamic Load Rating, Radial | 73,000 N |
| Basic Static Load Rating, Radial | 114,000 N |
| Fatigue Load Limit, Radial | 16,100 N |
| Speed on Permanent Grease Lubrication | 1,400 rpm |
| Permissible Static Load, Radial | 114,000 N |
| Permissible Dynamic Load Outer Ring, Radial | 105,000 N |
| Sealing | Labyrinth seals on both sides |
